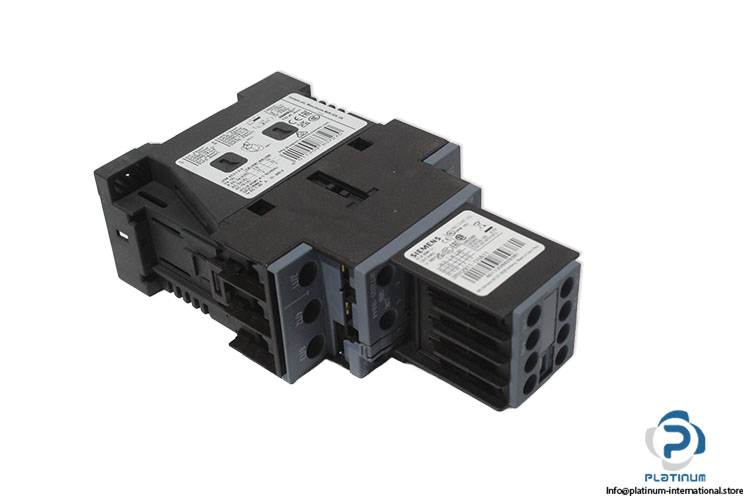

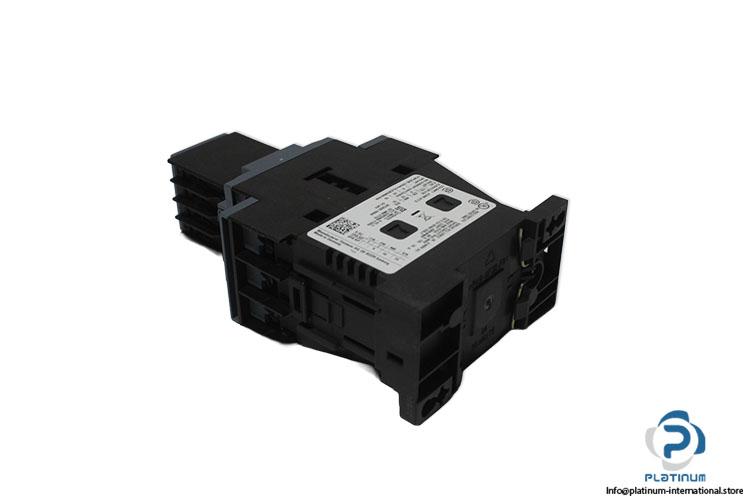

Siemens 3RT2025-1BB44 Power Contactor
신제품
재고 있음28 단위즉시 배송 가능
Power Contactor SIEMENS SIRIUS 3RT2025-1BB44 power contactor with 3 poles, 17 A AC-3 rating, 24 V control supply, and 7.5 kW operating power at 400 V for industrial motor control applications.
중고
재고 있음
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Product Brand name | SIRIUS |
| Product Type Designation | 3RT2 |
| Size of contactor | S0 |
| Insulation voltage | 690V |
| Current | (AC3/3e, 400V: 17A) |
| Operating voltage | (AC3/AC3e: 690V) |
| Operating power | (at AC-3/AC-3e, 400V: 7,5 kW) |
| Control supply voltage | 24V |
| Power loss | (at AC in hot operating state 1.8 W),( at AC in hot operating state per pole 0.6 W), (without load current share typical 5.9 W) |
| Surge voltage resistance rated value | 6 kV |
| Number of poles | for main current circuit 3 |
| Contacts | 2 NO + 2 NC |
| Frequency | 50 to 60 Hz |
| Dimensions | 85 x 45 x 151 mm |
| Protection Degree | IP 20 |
| Ambient temperature | -25 ... +60 °C |

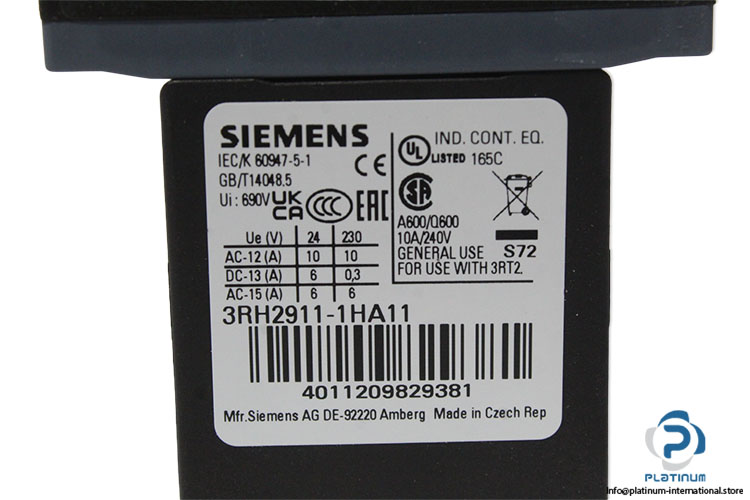

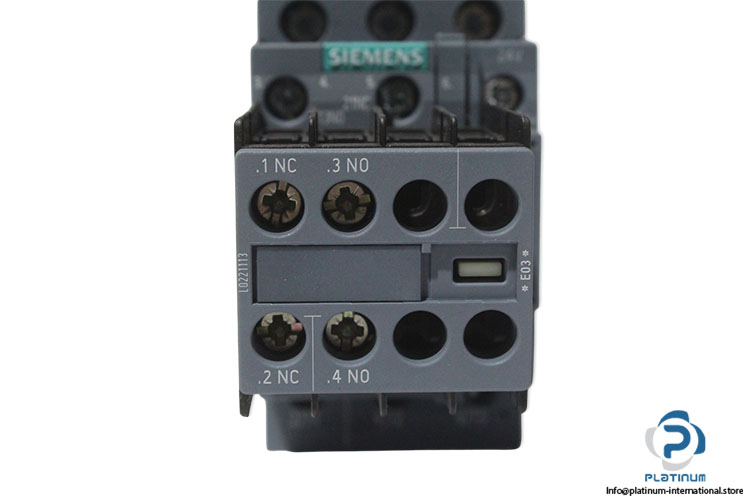

| ATTACHMENT | SIEMENS 3RH2911-1HA11 auxiliary switch block |
| type of voltage of the control supply voltage DC | 24 VDC |
| Stock key | JO-004 |
| Condition | New |
