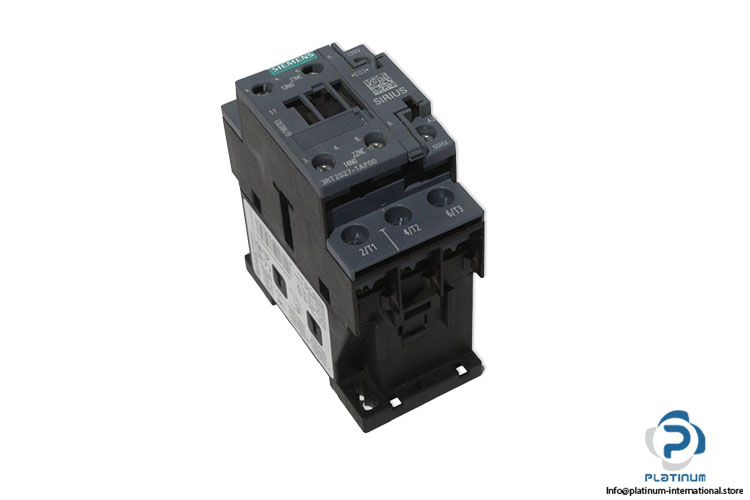

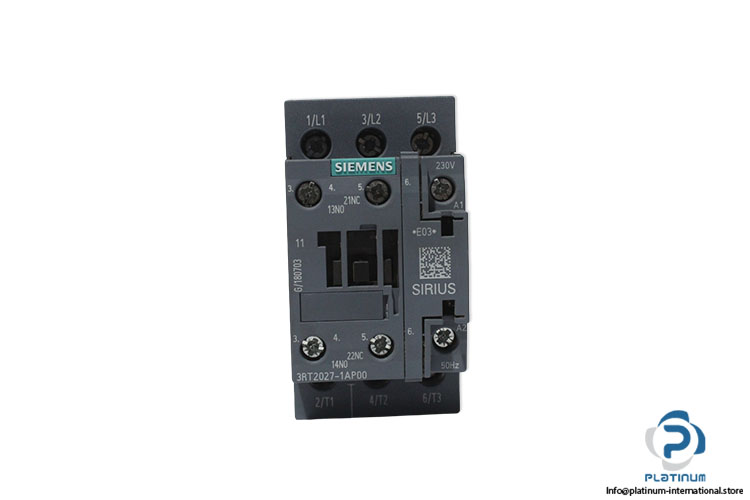

Siemens 3RT2027-1AP00 Power Contactor
신제품
재고 있음1 단위즉시 배송 가능
Power Contactor The SIEMENS 3RT2027-1AP00 is a SIRIUS power contactor with 230 VAC control voltage, 32 A AC-3 current and 15 kW operating power at 400 V.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Brand | SIRIUS |
| Size | S0 |
| Designation | 3RT2 |
| Control Voltage | 230 VAC 50Hz |
| Rated Operating Voltage | 690 V AC |
| Current AC-3 400 V | 32 A |
| Frequency | 50 … 60 Hz |
| Rated Insulation Voltage (Ui) | 690 V |
| Surge Voltage Resistance | 6 kV |
| Poles No. | 3 |
| Main Contact | 3 Normally Open (NO) |
| Auxiliary Circuit Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Operating Power AC-3/AC-3e at 400 V | 15 kW |
| Ambient Temperature | -25 … 60 °C |
| Dimensions | 85 x 45 x 97 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103922 |
| Weight | 0,42 |
