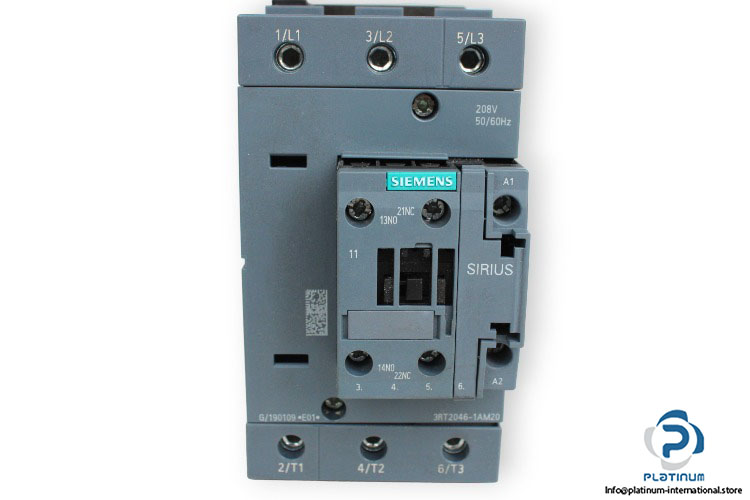

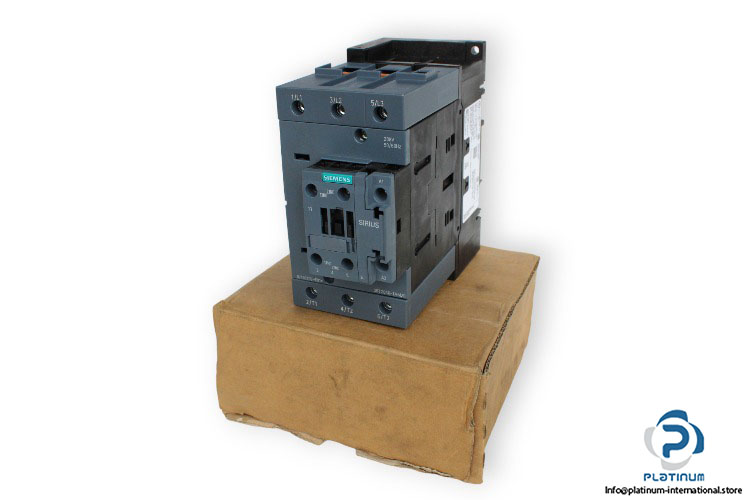

Siemens 3RT2046-1AM20 Power Contactor
SIEMENS 3RT2 046-1AM20 POWER CONTACTOR
The Siemens 3RT2 046-1AM20 is a robust and high-capacity power contactor designed for demanding industrial switching applications. Built for reliability, it offers excellent surge voltage resistance, durable screw-type connections, and optimal performance in a wide range of operating conditions.
Manufacturer: Siemens
Type: Power Contactor
Model: 3RT2 046-1AM20

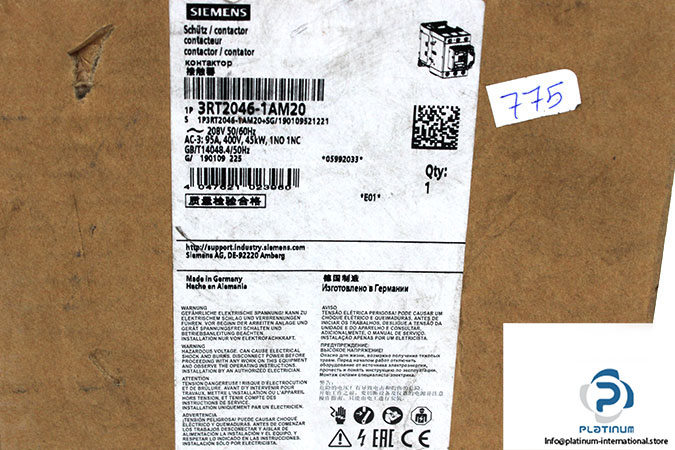

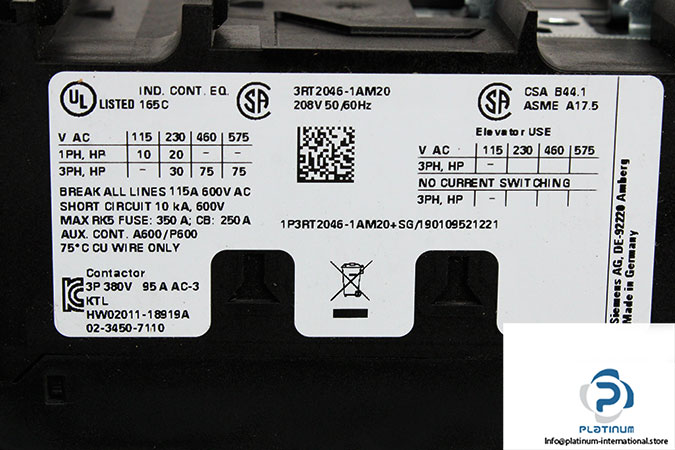

REF NO: HW02011-18919A / 02-3450-7110
| Operating Voltage | 208 V AC, 50/60 Hz |
| Operating Voltage at AC-3 Rated Value Max | 1000 V |
| Frequency | 50/60 Hz |
| Operational Current at AC-1 (400 V, 40 °C) | 130 A |
| Surge Voltage Resistance (Main Circuit) | 8 kV |
| Surge Voltage Resistance (Auxiliary Circuit) | 6 kV |

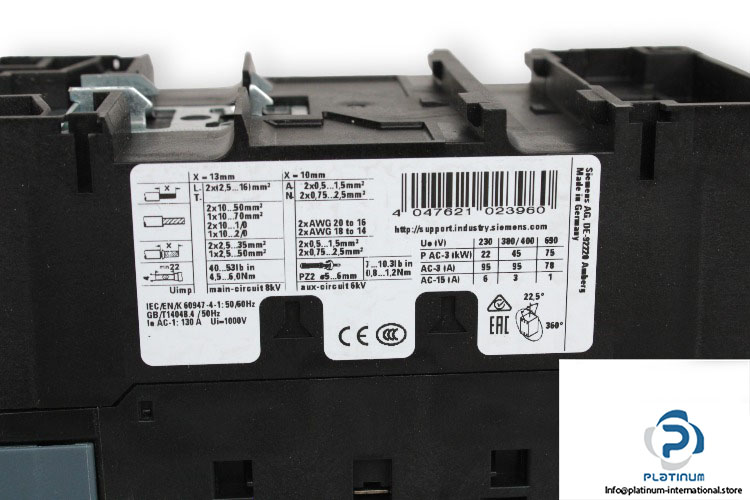

| Electrical Connection Type | Screw-Type Terminals |
| Main Current Circuit Poles | 3 Poles |
| NO Contacts for Main Contacts | 3 |
| Operating Temperature Range | -25 / +60 °C |
| Degree of Protection | IP20 |
| Dimensions (H x W x D) | 140 x 70 x 152 mm |
