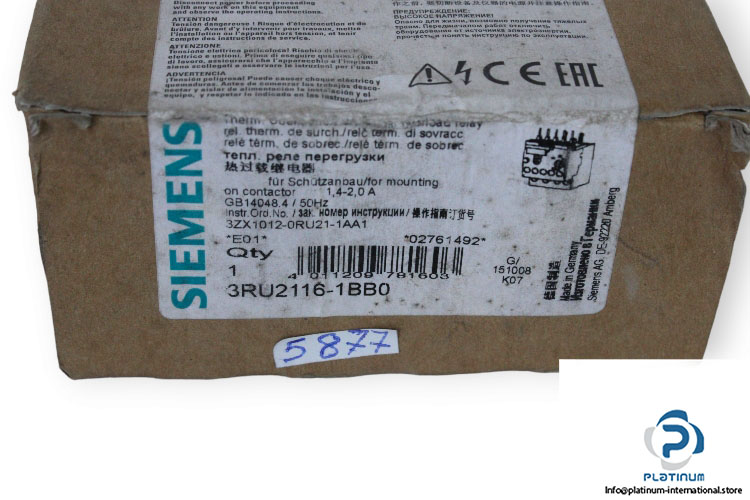

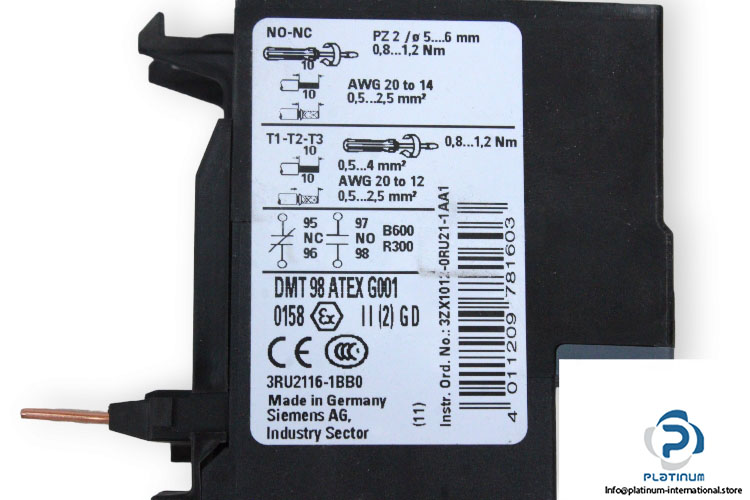

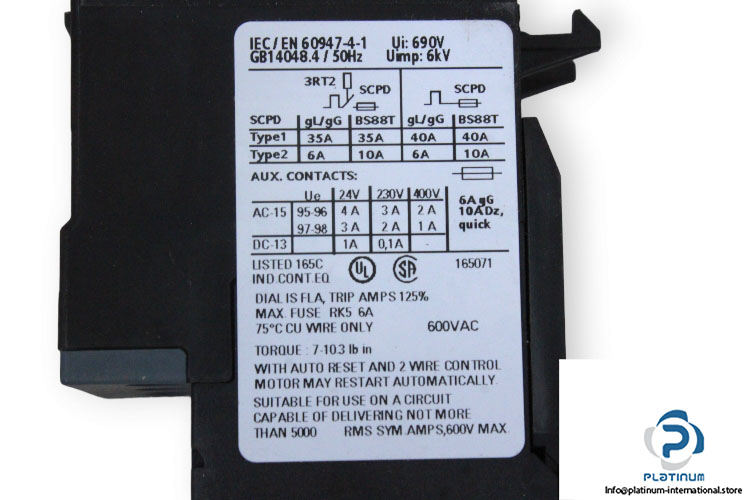

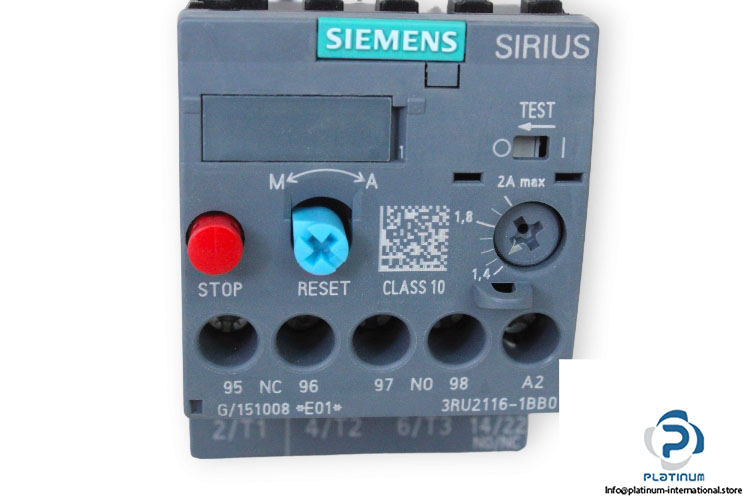

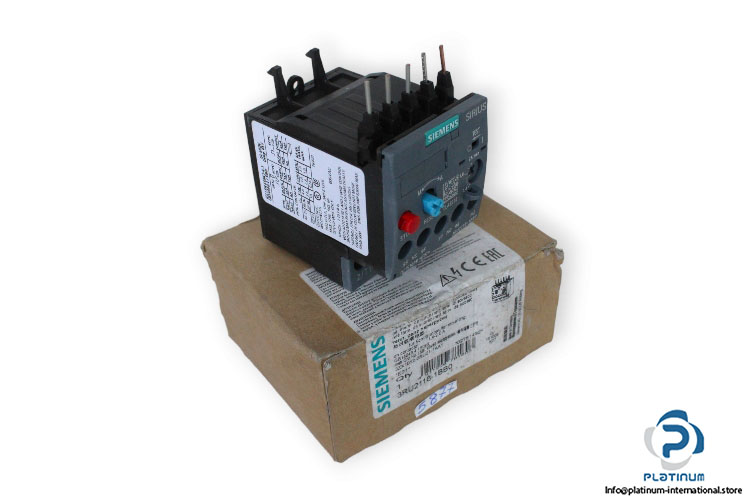

Siemens 3RU2116-1BB0 Overload Relay
Manufacturer: Siemens
Type: Overload Relay
Model: 3RU2116-1BB0
Size: S00
Insulation Voltage: 690 V
Current Range: 1.4 … 2 A
Power Loss: 5.7 W
Impulse withstand Voltage: 6 kV
Frequency: 50 Hz
No. of Poles: 3
Contact Configuration: Normally Open, Normally Close
Contact Voltage: 24 … 400 V AC, 24 … 230 V DC
Contact Current: 4 … 1 A (AC), 1 … 0.1 A (DC)
Torque: 0.8 … 1.2 Nm
Operating Temperature: -40 … 70 °C
Degree of protection: IP20
Dimensions: 76 X 45 X 70 mm
