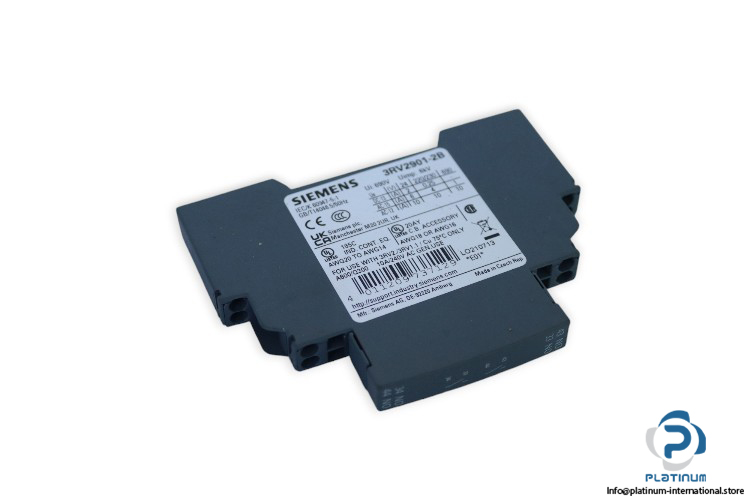

Siemens 3RV2901-2B Auxiliary Switch

Manufacturer: SIEMENS
Type: Auxiliary Switch
Model: 3RV29012B

Brand Name: SIRIUS
Circuit-Breaker Size: S00, S0, S2, S3
Rated Insulation Voltage (Ui): 690 V
Rated Impulse Voltage (Uimp): 6 kV

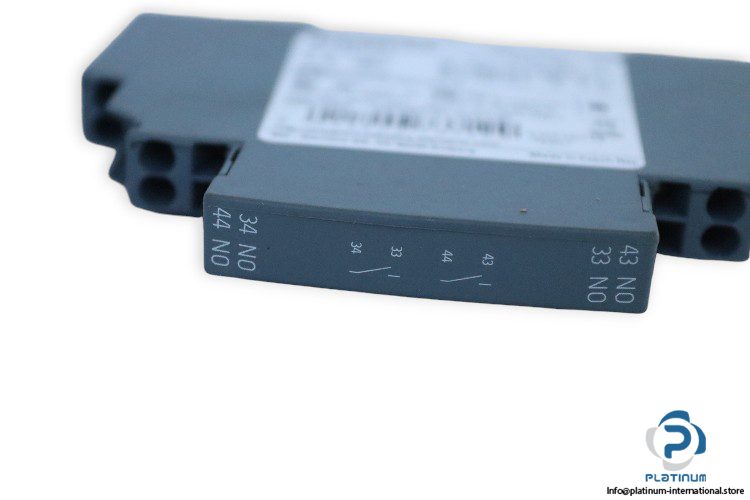

Auxiliary Contact: 2 Poles, 2 Normally Open (NO)
Auxiliary Contacts Operational Ratings:
AC-12:
24 / 230 / 400 / 690 V: 10 A
AC-15:
24 V: 6 A
230 V: 4 A
400 V: 3 A
DC-13:
24 V: 2 A
110 V: 0.5 A
220/250 V: 0.25 A
Electrical Connection: Plug-In
Protection Class: IP20
Temperature: -20 … 60 °C
Dimensions: 90 x 9.5 x 68 mm
