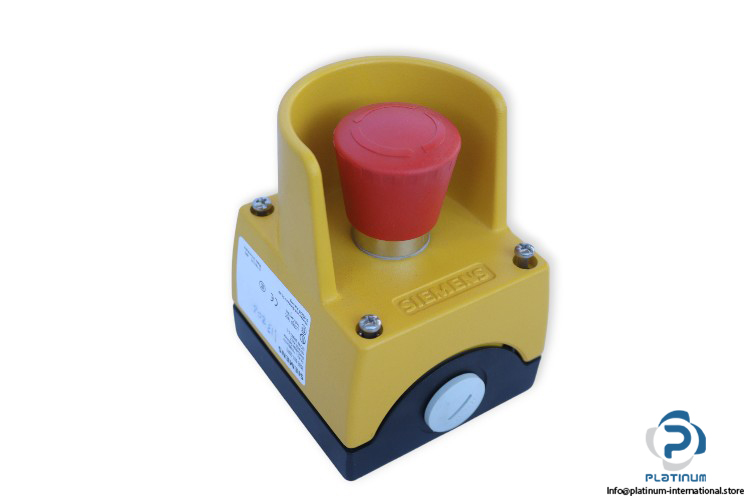

Siemens 3SB3 801-2DF3 Emergency Stop Pushbutton

Manufacturer: Siemens
Type: Emergency stop mushroom pushbutton
MNR: 3SB3801-2DF3

Operating voltage: 400 V AC
Rated current AC12: 10 A
Shape of the enclosure front: Square
Material of the enclosure: metal
Number of control points: 1
Color: yellow
Mounting type: of the enclosure Vertical / horizontal
Material of the actuating element: metal
Type of unlocking device: rotate-to-unlatch mechanism
Material of the holder: Metal
No. of switching elements: 1
Standard: IEC/EN 60947-5-1

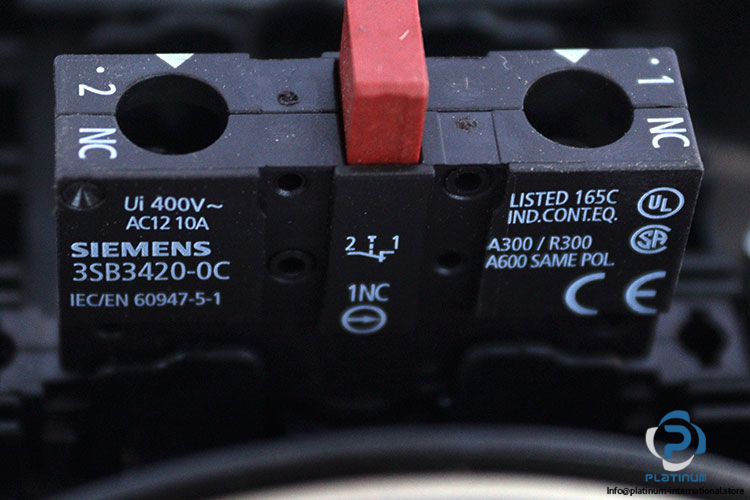

No. of NC contacts for auxiliary contacts: 1
Type of electrical connection on enclosure: Cable routing above, below / left, right, each 1 x M20
Protection Class: IP67
Ambient Temperature: -25 … 70 °C
Mounting Diameter: 22 mm
Dimensions: 85 x 85 x 114 mm
