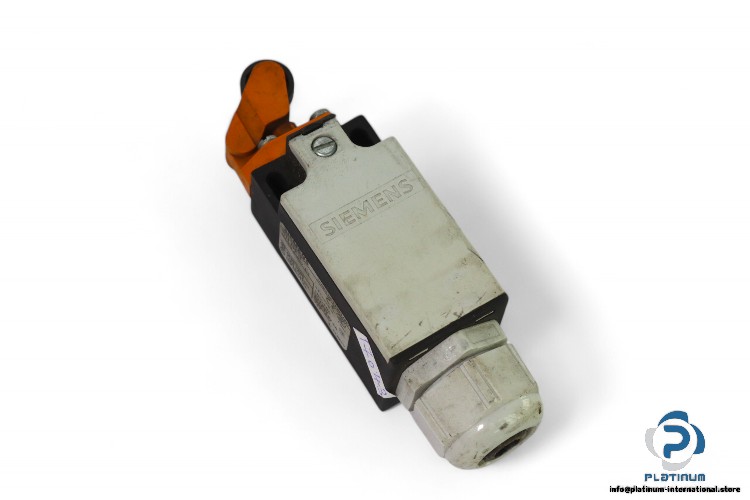

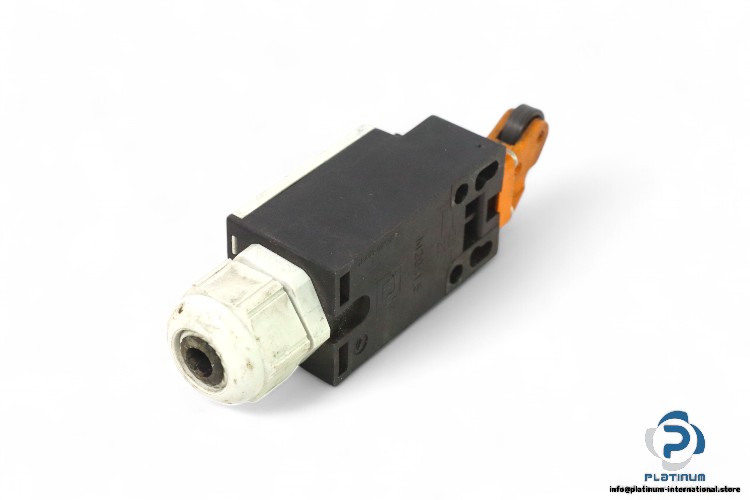

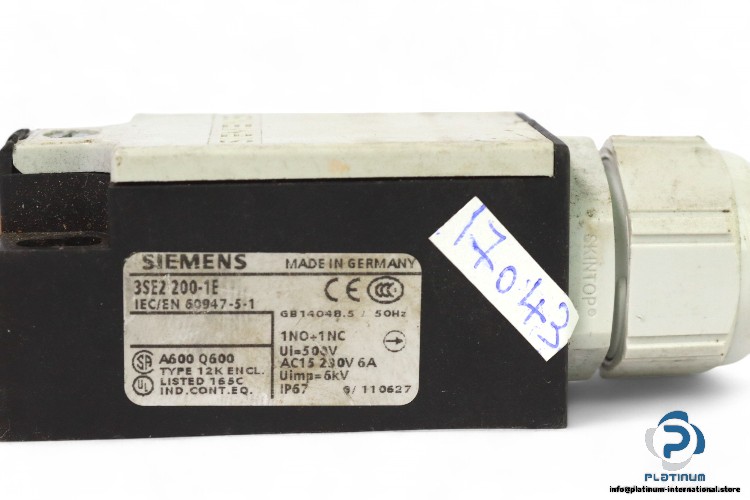

Siemens 3SE2 200-1E Position Switch

Manufacturer: Siemens
Type: Position Switch
Model: 3SE2200-1E

type of electrical connection: screw terminal
fastening method: screw fixing
circuit principle: snap-action contacts
Design of The Actuating Element: roller lever
Rated Voltage: 230V
Rated current: 6A
Rated insulation voltage (Ui): 500V
Rated impulse withstand voltage (Uimp): 6 KV
Output Configuration: 1NO + 1NC
frequency: 50 Hz
protection class IP: IP67
Material of The Enclosure: glass fiber reinforced thermoplast
Ambient Temperature: -30 … +85 °C
Dimension (L x W): 88.5 x 31 mm
