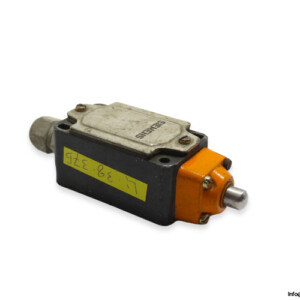

Siemens 3SE3 120-1D Position Switch

재고 있음1 단위즉시 배송 가능

18,88$

POSITION SWITCH

Siemens 3SE3 120 1D position switch (Type C) with plunger actuator, 1NO/1NC snap-action contacts, 500 V 10 A rating, IP67 protection, and robust metal enclosure.

제조업체
SIEMENS
SKU
1086844
카테고리
Limit Switches
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

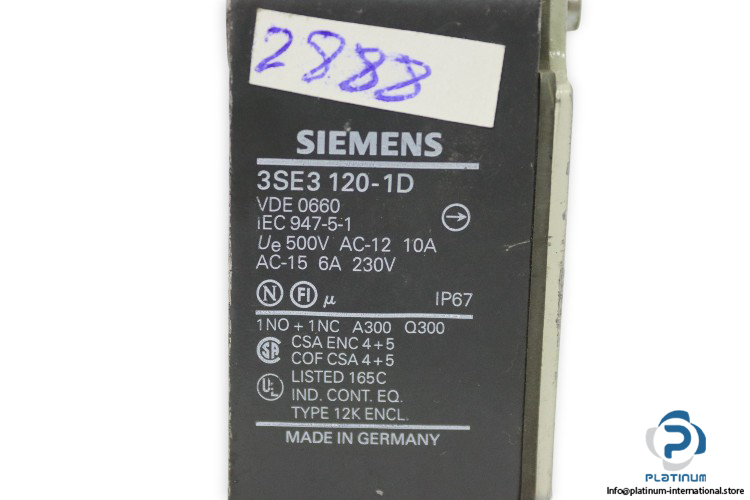

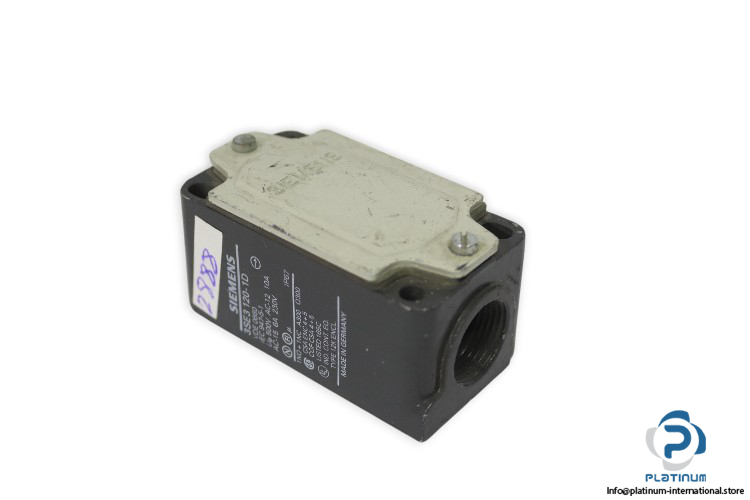

Siemens 3SE3 120 1D Position Switch (Type C)

The Siemens 3SE3 120 1D is a robust position switch without head (Type C), designed for precision control in industrial automation systems. With snap-action contacts, durable metal enclosure, and IP67 protection, it ensures reliable switching performance under demanding conditions.

Manufacturer: Siemens

Type: Position Switch without head (Type C)

Model: 3SE3 120 1D

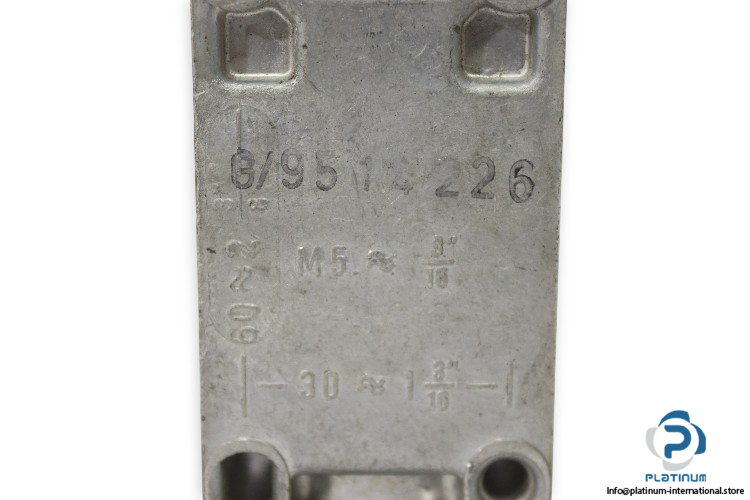

Code: 6/9514226 (M5, 3/16 INCH)

StandardVDE 0660 / IEC 947-5-1
Output Configuration1NO / 1NC (A300 Q300)
Rated Operational Voltage500 V @ 10 A (AC-12)
Contact OperationSnap Action
Actuator TypePlunger
Switching Voltage (Max)230 V (AC-15)
Contact Current (Max)6 A (AC-15)
ConnectionCable Entry
Protection ClassIP67
Length of Sensor118 mm
Width of Sensor40 mm
Material of EnclosureMetal (12K)
Ambient Operating Temperature-30 / +85 °C
