Siemens 3SE6806-2CD00 Evaluation Unit FOR Magnet Switch
중고
재고 있음1 단위즉시 배송 가능
Evaluation Unit for Magnet Switch
The SIEMENS 3SE68 evaluation unit provides reliable monitoring of magnetic safety sensors with SIL2 safety rating, 24 V DC operation, and IP20 protection for industrial automation systems.243SE68AutomationComponentdcDeviceEvaluationIndustrialInterfaceIP20MagnetMagneticModuleRelaySafetySensorSiemensSIL2SwitchUnitV
방대한 재고
글로벌 배송
전문 지원
품질 보장

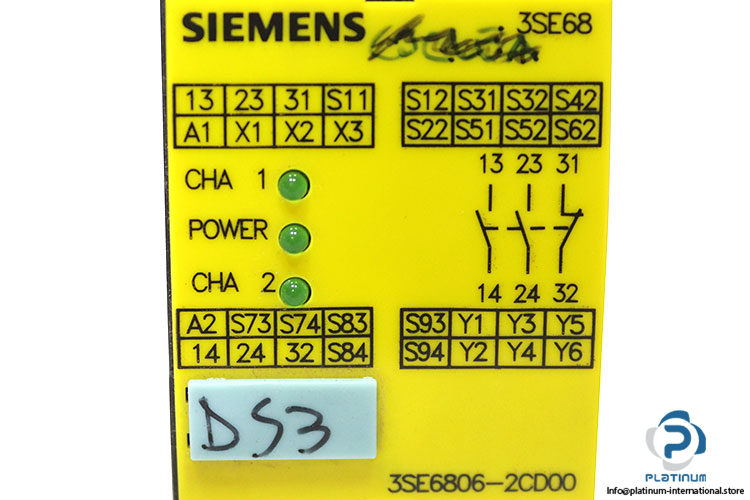

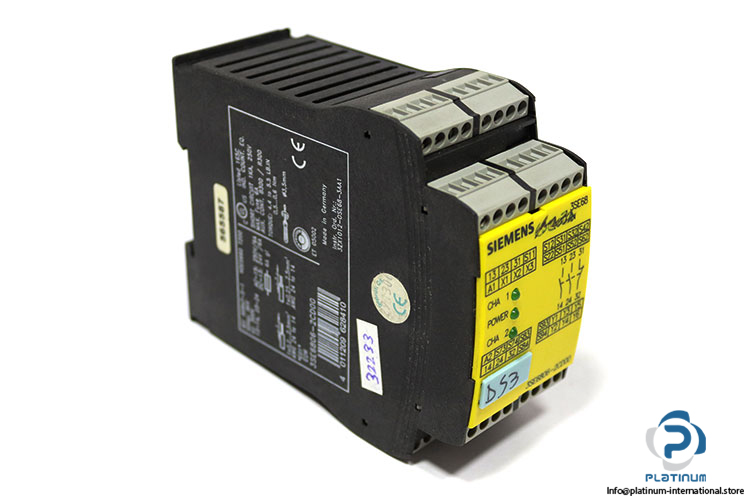

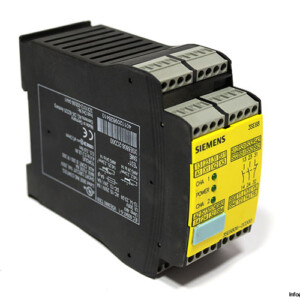

SIEMENS 3SE68 Evaluation Unit for Magnet Switch
The SIEMENS 3SE68 Evaluation Unit is a reliable safety relay module designed for monitoring and evaluating magnetic safety sensors. With high shock and vibration resistance, SIL2 safety rating, and durable plastic housing, it is engineered for safe and stable operation in industrial automation systems.
Manufacturer: SIEMENS
Type: Evaluation Unit for Magnet Switch
Model: 3SE68

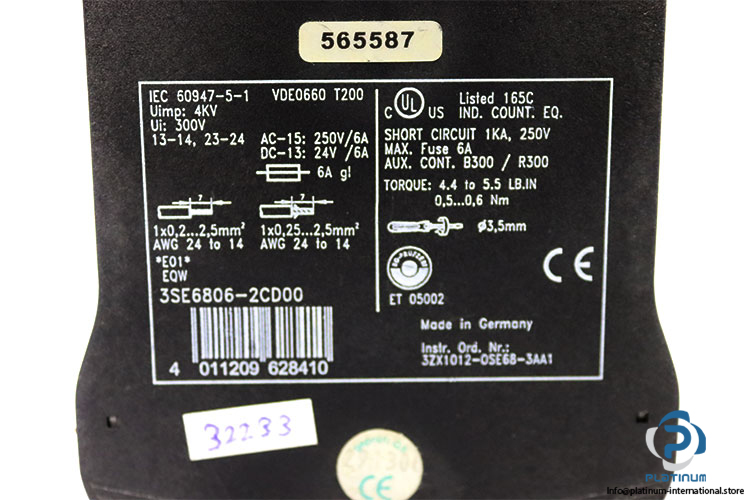

MRN: 3SE6 806-2CD00
Installation Order Number: 3ZX1012-0SE68-3AA1
Serial Number: 4011209 628410
| Product Designation | Safety relays |
| Design of Product | Evaluation unit, 45 millimeters |
| Type of Operating Voltage | DC |
| Shock Resistance (IEC 60068-2-27) | Sinusoidal half wave 10 g for 11 milliseconds |
| Vibration Resistance (IEC 60068-2-6) | 10 to 55 hertz, 0.35 millimeters |
| Protection Class | IP20 |
| Sensor Height | 100 millimeters |
| Sensor Length | 120 millimeters |
| Sensor Width | 45 millimeters |
| Mechanical Installation Condition | No flush installation possible |
| Operating Voltage Rated Value | 24 volts |
| Operating Current Rated Value | 125 milliamps |
| Operating Power Rated Value | 3 watts |
| Number of NC Contacts (Auxiliary) | 1 |
| Number of NO Contacts (Auxiliary) | 2 |
| Number of CO Contacts (Auxiliary) | 0 |
| Enclosure Material | Plastic |
| Contact Switching Function | NC and NO contact |
| Number of Switching Contacts for Signaling | 6 |
| Safety Related Switching Contacts | 2 |
| Safety Integrity Level (IEC 61508) | SIL2 |
| Performance Level (EN ISO 13849-1) | PL d |
| Category (EN 954-1) | Category 3 |
| Ambient Temperature During Operation | minus 25 to plus 45 degree Celsius |
| Supply Voltage | 20.4 to 28.8 volts |
| Number of Semiconductor Outputs | 6 |
| Maximum Output Current at Safety Output | 6 amps |
| Mounting Type | Snap on mounting |
