Siemens 3TH3022-0A Contactor Relay
중고
재고 있음1 단위즉시 배송 가능
컨택터 릴레이 Siemens 3TH30220A 컨택터 릴레이는 110V AC 제어 전압, 16A 정격 전류, 2NO + 2NC 보조 접점을 갖추고 있습니다. 산업 제어 및 자동화 응용을 위해 설계되었습니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

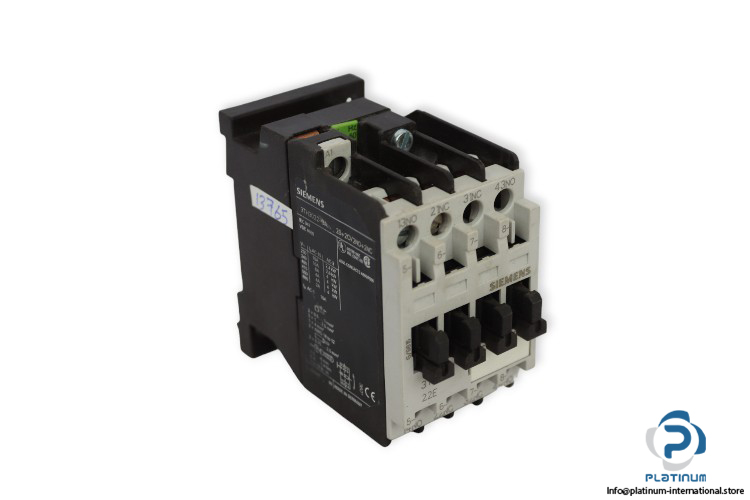

Siemens 3TH30220A Contactor Relay
The Siemens 3TH30220A Contactor Relay is designed for control circuits, switching, and signaling applications. It is also used for interfacing with electronic circuits, ensuring reliable operation in industrial and automation systems.
Manufacturer: Siemens
Type: Contactor Relay
MNR: 3TH30220A

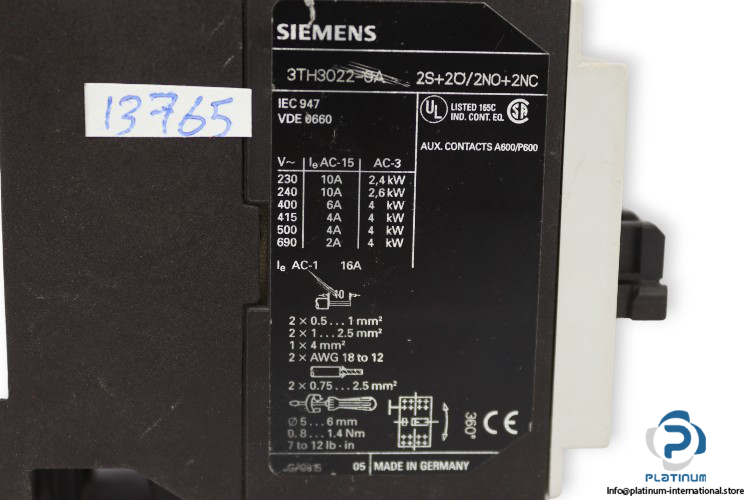

Rated Operating Current Ie (AC-15):
10 A (230 V AC)
6 A (400 V AC)
Power (AC-3):
2.4 kW (230 V AC)
4 kW (400 V AC)
Designed for high-performance control applications, the Siemens 3TH30220A ensures durability and efficiency in industrial automation systems.
| Application | Used in control circuits for switching and signaling, also for interfacing with electronic circuits |
| Designation | Auxiliary Contactor |
| Control Supply Voltage | 110 V AC |
| Frequency | 50 Hz |
| Rated Operating Current Ie (AC-1) | 16 A |

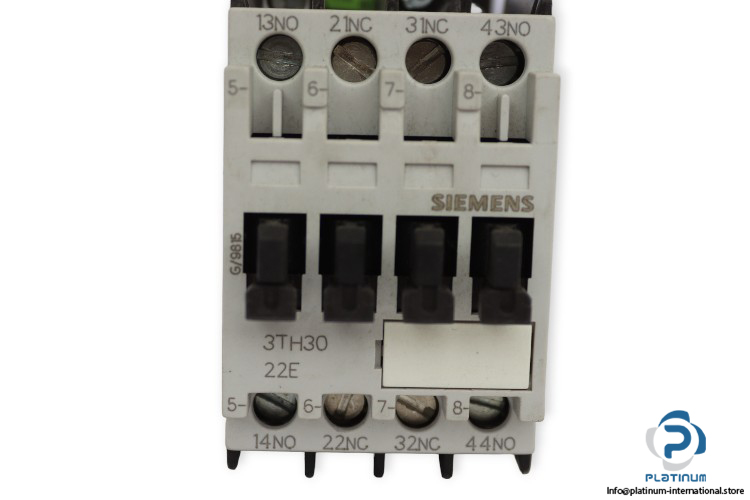

| Auxiliary Contacts | 2 Normally Open (NO), 2 Normally Closed (NC) (2NO + 2NC) |
| Identification Number | 22E |
| Standard | IEC 947 / VDE 0660 |
| Protection Class | IP20 |
| Operation Ambient Temperature | -25 to 55 °C |
| Dimensions (W x D x H) | 78 x 111 x 45 mm |
