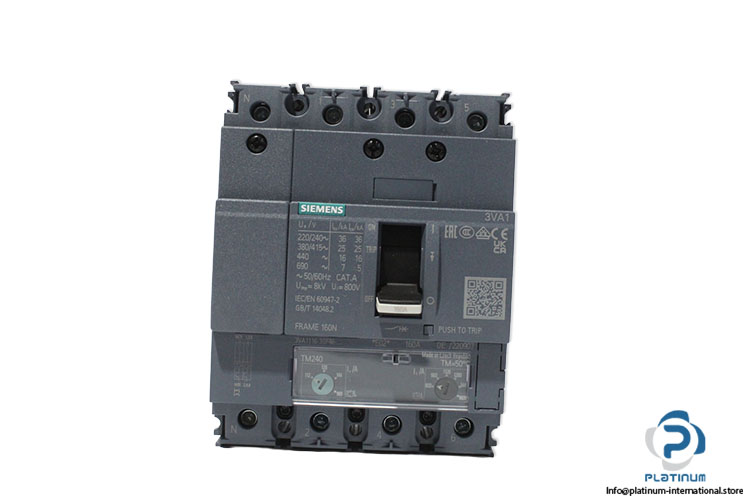

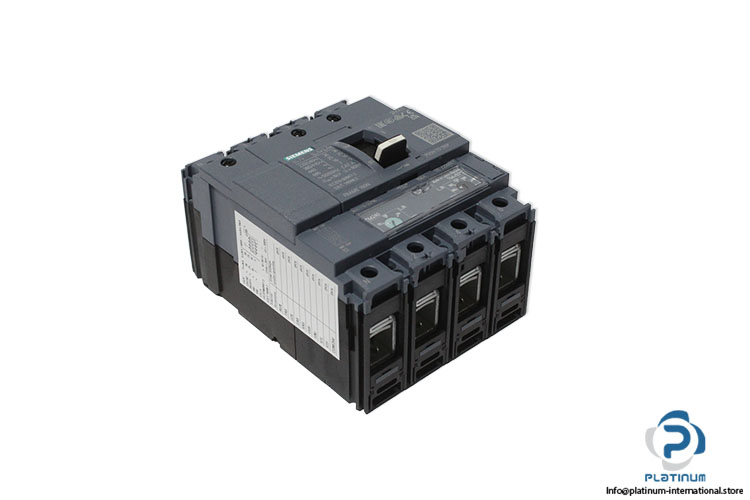

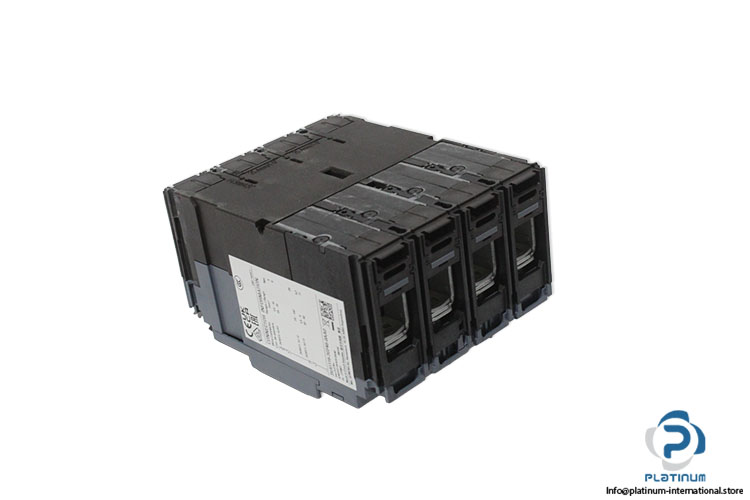

Siemens 3VA1116-3GF46-0AA0 Circuit Breaker
신제품
재고 있음7 단위즉시 배송 가능
Circuit Breaker The SIEMENS 3VA1116-3GF46-0AA0 SENTRON Circuit Breaker is a compact low-voltage protection device featuring a 160 N frame, 600 V AC operating voltage, 25 kA breaking capacity, IP40 protection, and front terminal connections. It is designed for reliable overload and short-circuit protection in industrial power distribution and control systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Brand Name | SENTRON |
| Frame | 160 N |
| Insulation Voltage | 800V |
| Operating Voltage | 600V AC |
| Impulse withstands Voltage | 8 kV |
| Power Loss | Max. 38w |
| Type Of Electrical Connection | box terminal on both sides |
| Arrangement Of Electrical Connectors | Front Terminal |
| Frequency | 50/60 Hz |
| Switching Capacity Class of the Circuit Breaker | N |
| Short-Circuit Current Breaking Capacity (Icu) | max. at 415V 25 kA |
| Protection Degree | IP40 |
| Ambient Temperature | -25 to 70 °C |
| Dimensions | 130x101,5x70 mm |
| Standard | IEC/EN 60947-2, GB/T 14048 2 |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093362 |
| Weight | 1,37 |
