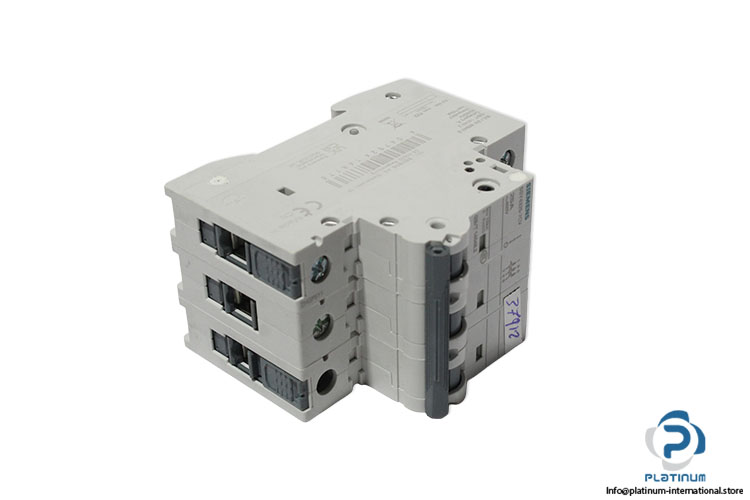

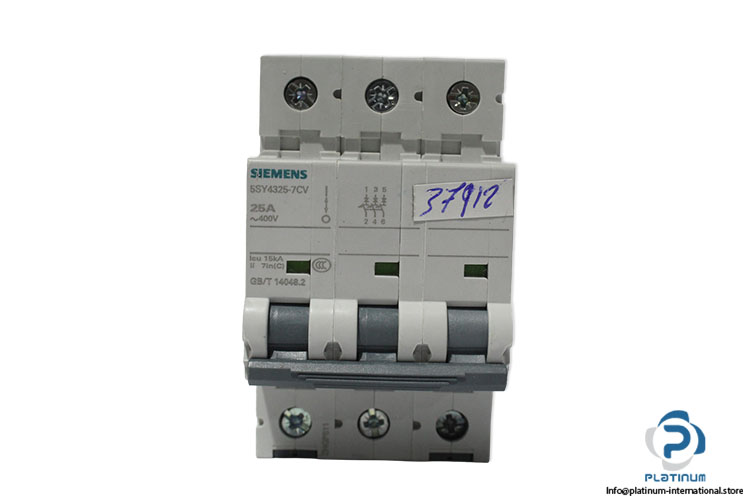

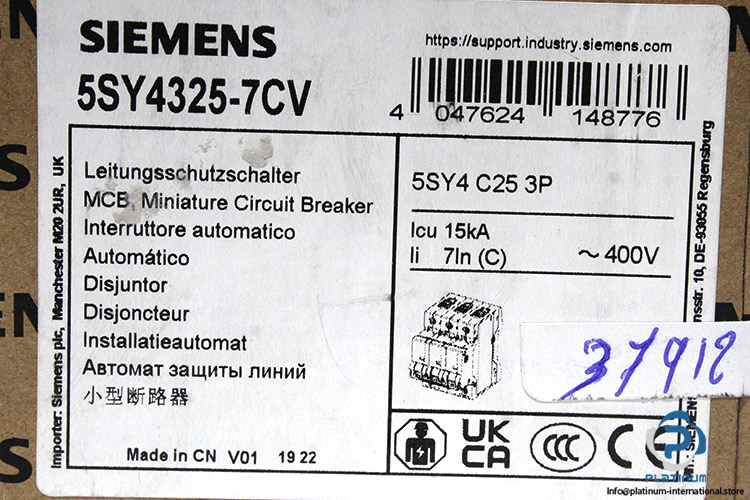

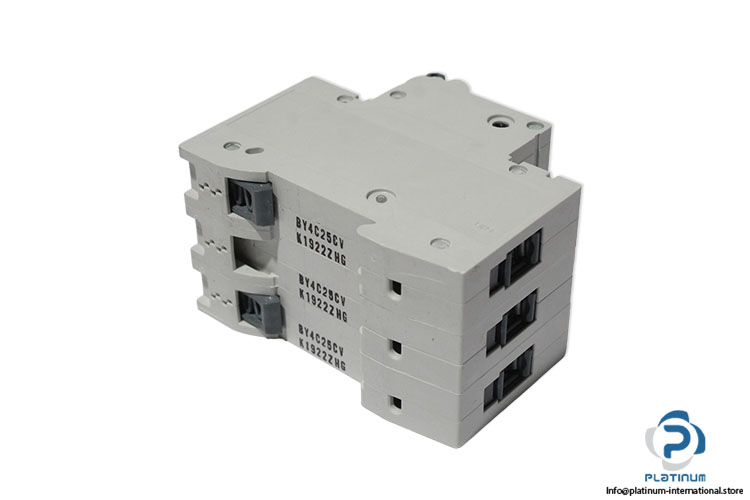

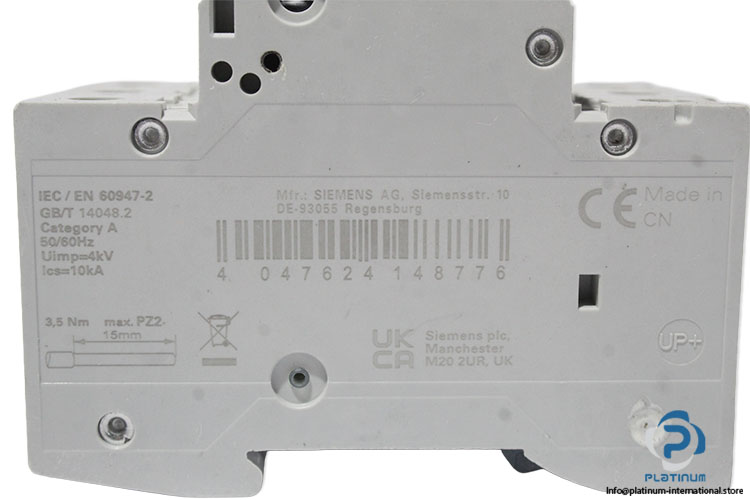

Siemens 5SY4325-7CV Miniature Circuit Breaker
신제품
재고 있음12 단위즉시 배송 가능
Miniature Circuit Breaker SIEMENS SENTRON 3-pole miniature circuit breaker with 25 A operational current, C tripping characteristic and 10 kA breaking capacity, designed for industrial electrical circuit protection.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Product Brand Name | SENTRON |
| Supply Voltage | 400V AC, 72V DC |
| Insulation Voltage | 440 V |
| Operational Current | 25 A |
| Switching Capacity Current | 10kA |
| No. of poles | 3 |
| Tripping Characteristic Class | C |
| Frequency | 50/60 Hz |
| Power Loss | 2,2W |
| short-circuit current breaking capacity (Icn) | 10 kA |
| Number Of Width Units | 3 |
| Fastening Method | Quick assembly system |
| Mounting Position | Any |
| Tightening Torque | 2.5 to 3.5 N·m |
| Ambient Temperature | -40 to 70 °C |
| Protection Degree | IP20 |
| Diameter | 70 mm |
| Dimensions | 90x54x76 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093848 |
| Weight | 0,47 |
