Siemens 6ES7 131-4BB01-0AA0 Digital Electronic Module
신제품
재고 있음7 단위즉시 배송 가능
Digital Electronic Module
A compact and high-accuracy Siemens SIMATIC S7 digital input module designed for reliable 24 V DC signal processing, encoder compatibility, and safe operation in industrial automation systems.2533056ES7131-4BB01-0AA0aASiemensAutomationCCircuitCurveDigitalElectronicElectronicsExplosionI/OIndustrialInputmAModuleModulebreakerProofRatingResidualS7SiemensSimaticSUWith
방대한 재고
글로벌 배송
전문 지원
품질 보장

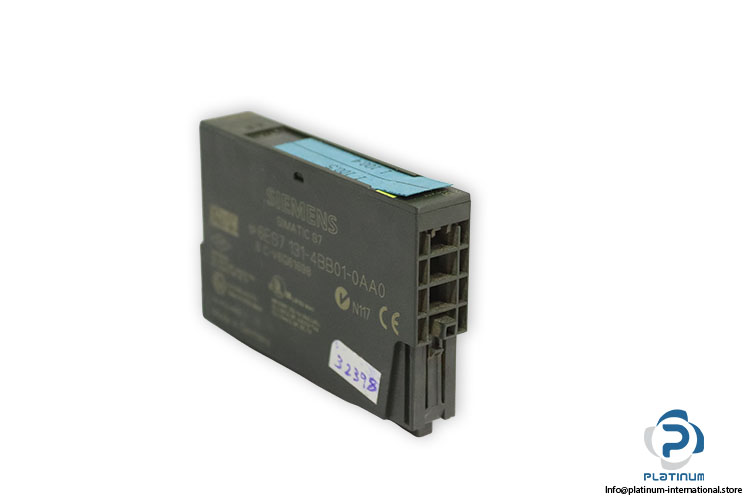

SIEMENS 6ES7131-4BB01-0AA0 Digital Electronic Module
A high-performance digital input module from the SIMATIC S7 range, designed for reliable signal processing, precise industrial automation control, and stable operation in demanding environments. Built with Siemens quality, this module provides dependable 24 V DC input handling, encoder compatibility, and explosion-proof construction. Manufacturer: SIEMENS
Type: Digital Electronic Module

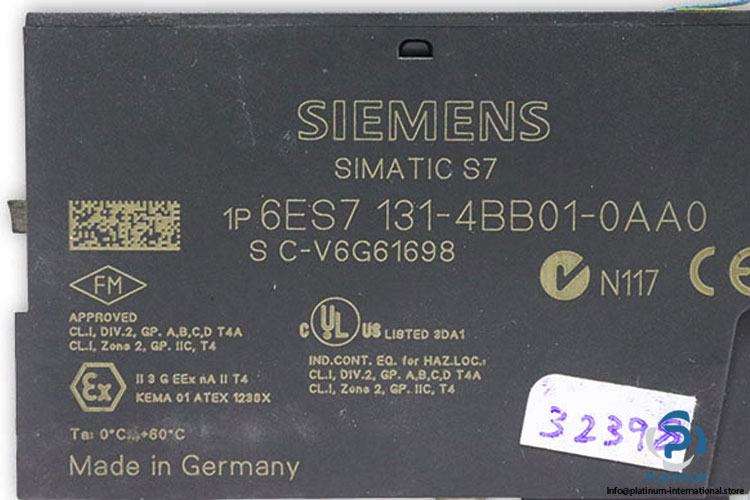

MRN: 6ES7131-4BB01-0AA0
SN: S C-V6G61698
Range: SIMATIC S7
| Rated Input Voltage (DC) | 24 V (from power module) |
| Input Current from Supply L+ | Dependent on encoder |
| Backplane Bus Supply | 3.3 V DC, max. 10 mA |
| Encoder Supply Output Voltage | Minimum L+ (-0.5 V) under load |
| Output Current Rated | 500 mA |
| Output Current Range | 0“500 mA |
| Power Loss (Typical) | 0.4 W |
| Number of Digital Inputs | 2 |
| IEC 61131 Type 1 Input Curve | Yes |
| Input Voltage Type | DC |
| Rated Input Voltage | 24 V DC |
| Signal œ0 Threshold | “30 to +5 V |
| Signal œ1 Threshold | +15 to +30 V |
| Input Current for œ1 (Typical) | 7 mA at 24 V |
| Isolation | Tested at 500 V DC |
| Dimensions | Width 15 mm, Height 81 mm, Depth 52 mm |
| Explosion Proof | Yes |
