Siemens 6ES7 131-4BD01-0AA0 Electronic Module
재고 있음387 단위즉시 배송 가능
32,50$
디지털 입력 모듈 Siemens 6ES7131-4BD01-0AA0 디지털 입력 모듈은 24 V DC에서 4개의 DI 채널을 제공하며, 높은 신호 정확도를 가지고 있어 까다로운 자동화 환경에서 ET200S 응용에 적합합니다.
신제품
재고 있음 49,50$
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

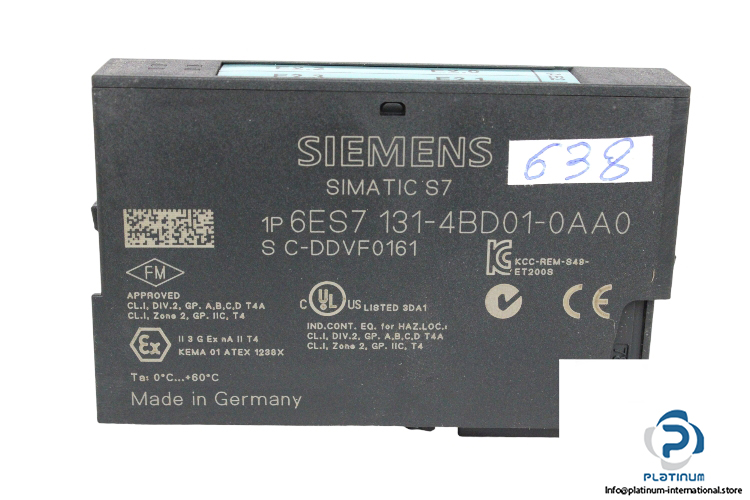

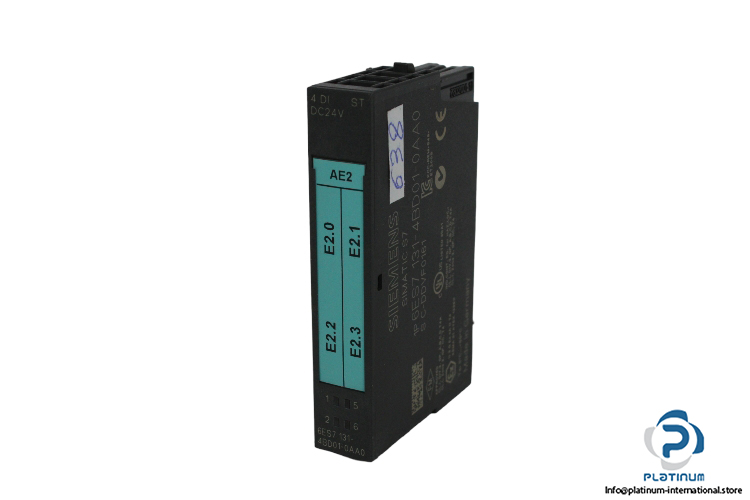

SIEMENS 6ES7131-4BD01-0AA0 DIGITAL INPUT MODULE
The Siemens SIMATIC S7 Digital Input Module for ET200S is a robust and efficient input solution, designed for reliable signal detection in industrial automation systems. It offers four digital inputs with precise voltage thresholds, optimized for high-speed applications and durable operation under harsh conditions.
Manufacturer: SIEMENS
Family: SIMATIC S7 FOR ET200S
Type: Digital Input Module
MRN: 6ES7131-4BD01-0AA0
Serial No.: C-DDVF0161
| No. of Digital Inputs (DI) | 4 |
| Input | 24 V DC; -30 / +5V = œ0, 15 / 30V = œ1 (7 mA @ 24V) |
| Supply Voltage | 24 V DC; From Power Module; Reverse Polarity Protected |
| Current Consumption | 10 mA |
| Power Loss | Typical 0.7 W |
| Output Voltage | Min. L+(0.V) |
| Rated Output Current | 500 mA |
| Connectable Encoders | 2-wire BEROS, Max. 1.5 mA |
| Ambient Temperature Range | -25 / +60°C |
| Isolation | Tested With 500 V DC |
| Dimensions | 15 x 81 x 52 mm |
