Siemens 6ES7 314-6CF02-0AB0 CPU
신제품
재고 있음1 단위즉시 배송 가능
888,88$
CPU Siemens SIMATIC S7-300 CPU 314-6CF02-0AB0 24 DI, 16 DO, 4+1 Pt 100 AI, 2 AO 및 방폭 설계 포함. 64 Kbyte 메모리, 통합 DP 인터페이스 및 최대 60 kHz의 고속 카운터.
AutomationCommunicationControllerCPUDPExplosionHighI/OIndustrialIntegratedLogicModuleMultiperformancePLCprocessorprogrammableProofS7-300SiemensSimaticUnit
중고
재고 있음 411,11$
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

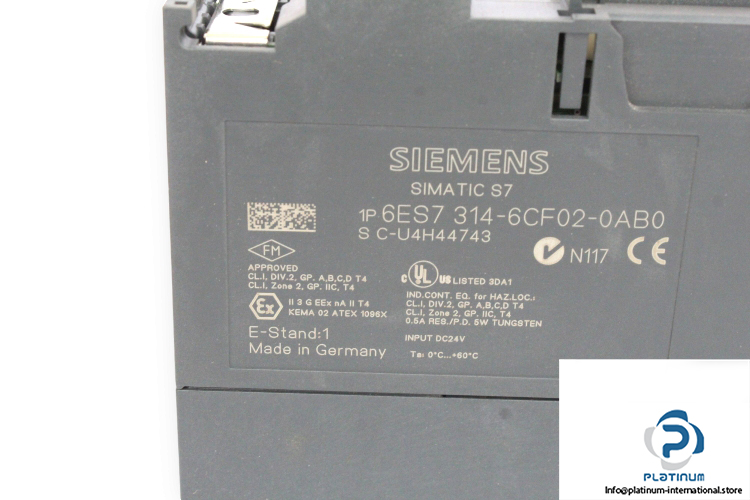

SIEMENS 6ES73146CF020AB0 SIMATIC S7-300 CPU

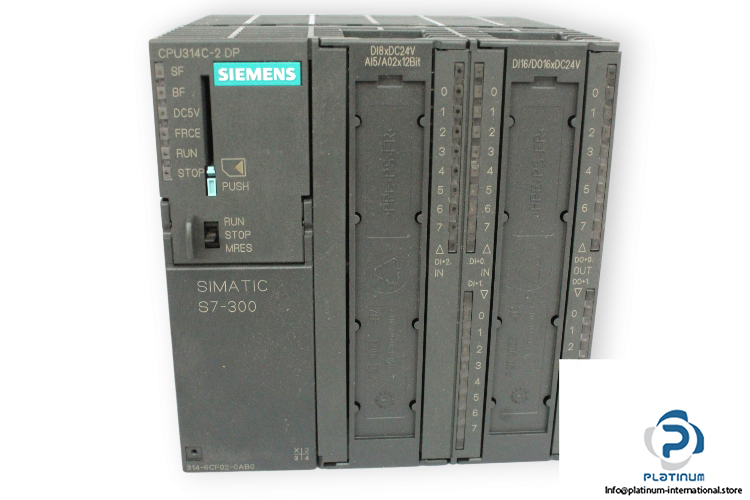

The Siemens SIMATIC S7-300 CPU 314-6CF02-0AB0 is a high-performance programmable logic controller (PLC) designed for demanding industrial automation tasks. With its robust build, integrated digital and analog I/O, and explosion-proof design, it ensures reliable control and monitoring across a wide range of applications.
Manufacturer: Siemens
Type: CPU
MNR: 6ES73146CF020AB0
Model: 314-6CF02-0AB0
Family: SIMATIC S7-300
SN: S C-U4H44743
E STAND: 1
| Explosion Proof | EX |
| Input Voltage | 24 V DC |
| Current Consumption (Rated Value) | 1000 mA |
| Digital Inputs (DI) | 24 |
| Digital Outputs (DO) | 16 |
| Analog Inputs (AI) | 4 + 1 Pt 100 |
| Analog Outputs (AO) | 2 |
| Power Consumption | 14 W |
| Number of Counters | 4 |
| Working Memory | 64 Kbyte |
| Interface | Integrated DP |
| Counter Frequency (Max) | 60 kHz |
| Compact | CPU with MPI |
| Output Relay | Change Over Contact |
| Temperature Range | 0 / 60°C |
| Dimensions | 120 x 125 x 130 mm |
