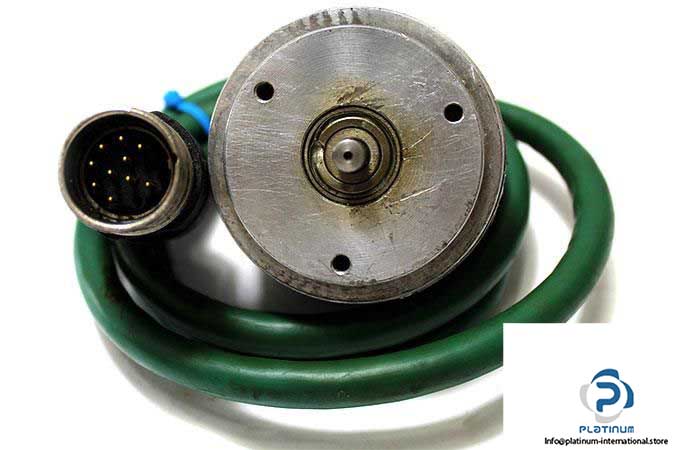

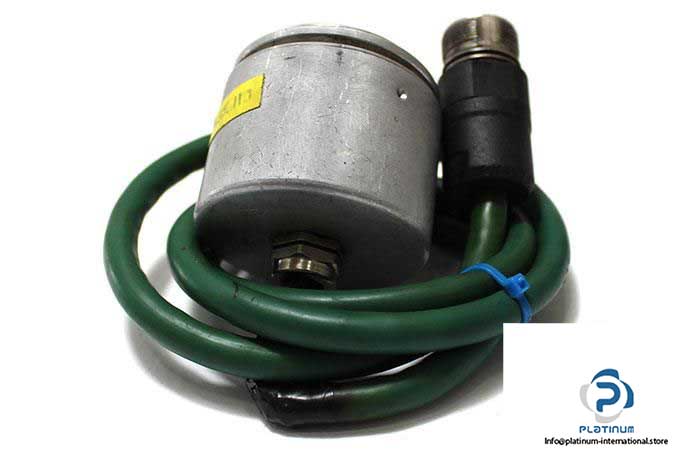

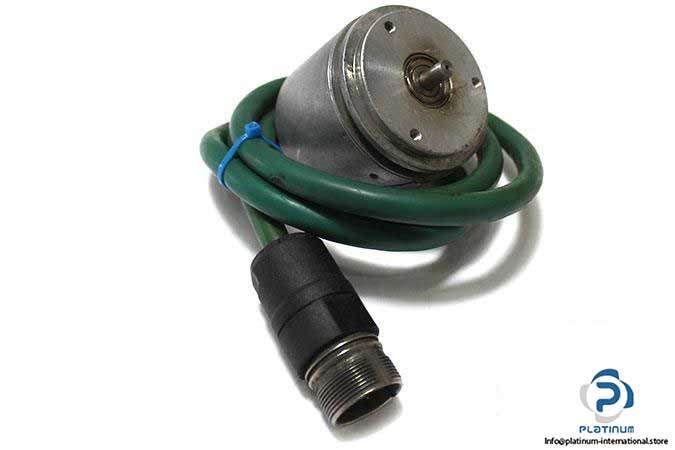

Siemens 6FX2001-2CB02 Incremental Encoder
SIEMENS INCREMENTAL ENCODER “ MODEL 6FX2001-2CB02
The Siemens 6FX2001-2CB02 Incremental Encoder is designed for precision feedback and performance in high-speed automation systems. With robust TTL (RS 422) output and IP64 protection, it ensures reliable operation even in demanding industrial environments.

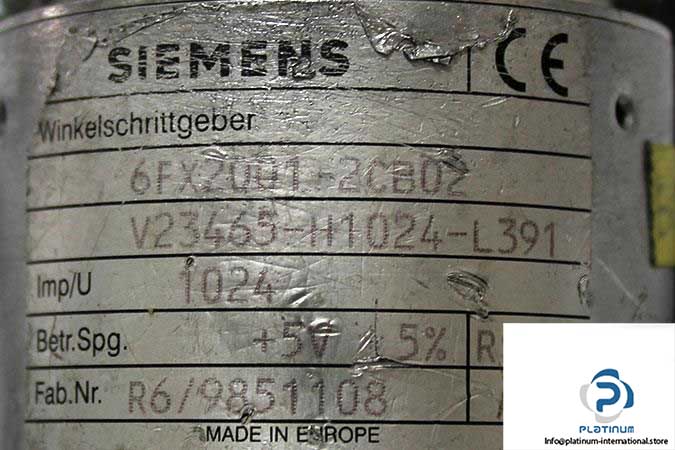

Manufacturer: SIEMENS
Type: Incremental Encoder
Model: 6FX2001-2CB02
Alternate Model: V23465-H1024-L391
FAB No.: R6/9851108
| Shaft Diameter | 6 mm |
| Flange Design | Synchro Flange |
| Resolution | 1024 Pulses per Revolution (PPR) |
| Voltage Supply | 5 VDC |
| Max Current | 150 mA |
| Output Circuits | TTL (RS 422) |
| Scanning Frequency | 300 kHz |
| Output Connections | Radial cable 1m with connector |
| Protection Class | IP64 |
| Operating Temperature | -40 to 100 °C |
