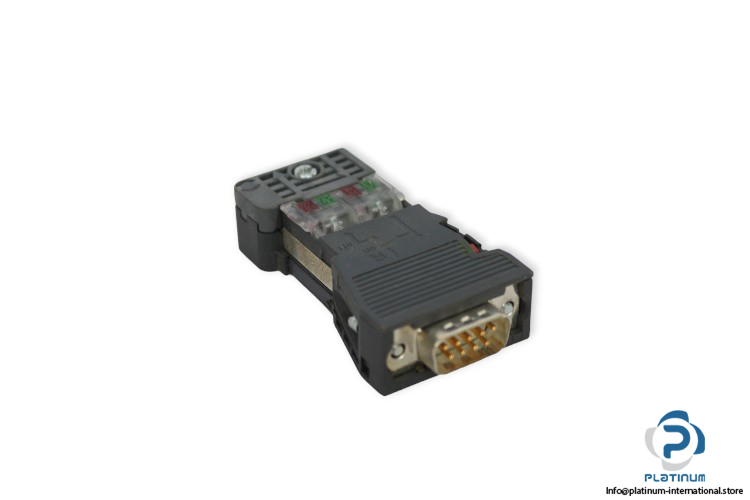

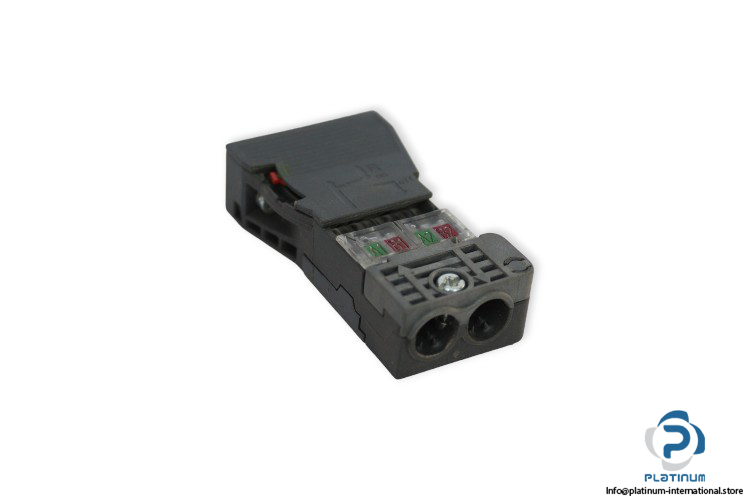

Siemens 6GK1500-0FC00 Profibus Connector

Manufacturer: Siemens
Type: PROFIBUS FC bus connector RS 485
Model: 6GK1 500-0FC00

Suitability for use: For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transfer rate / with PROFIBUS: 9.6 kbit/s … 12 Mbit/s
Number of electrical connections: for PROFIBUS cables: 2, for network components or terminal equipment: 1
Type of electrical connection: for PROFIBUS cables: Integrated insulation displacement contacts for 2-core PB FC installation cables, for network components or terminal equipment: Sub-D connector (9-pin)
Type of cable outlet: 180° cable outlet
Material of the enclosure: plastic
Operating Temperature: 0 … +60 °C
Degree of protection: IP20
Dimensions: 16 x 62 x 34.5 mm
