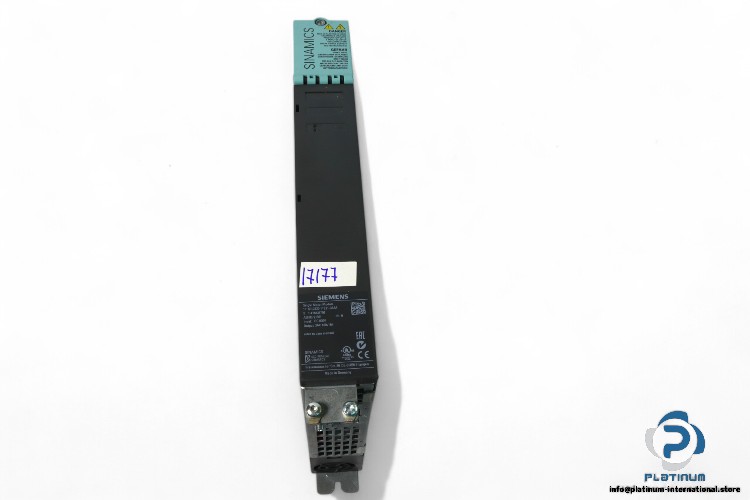

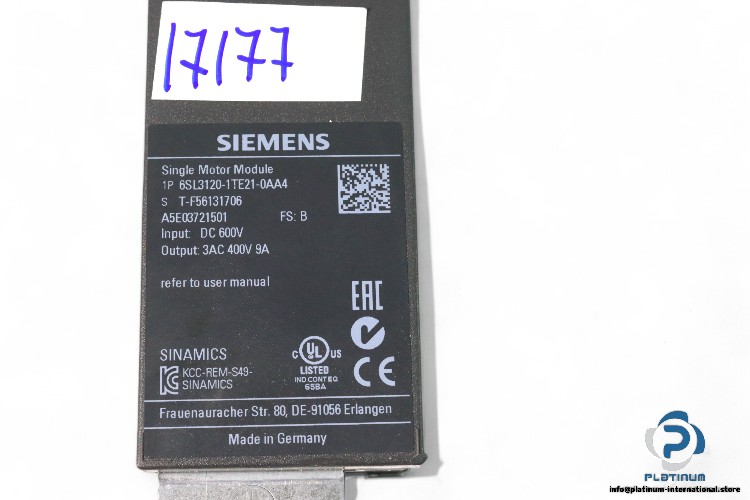

Siemens 6SL3120-1TE21-0AA4 Single Motor Module
899,99$
Siemens Single Motor Module 6SL3120-1TE21-0AA4 “ Efficient servo motor drive with 4.8 kW power, 600 V DC input, 400 V AC output, and built-in safety features for enhanced performance in motion control systems.
SINGLE MOTOR MODULE 6SL3120-1TE21-0AA4 by Siemens
The Siemens Single Motor Module 6SL3120-1TE21-0AA4 is a powerful component from the SINAMICS S120 series, designed for efficient servo motor control. It offers reliable performance with a type rating of 4.8 kW and supports a wide range of industrial applications requiring high power output and precision.
Key features include:
- DC Link Voltage: 510 V to 720 V
- Voltage Rating: 600 V DC (input), 400 V AC (output, 3-phase)
- Current: 9 A
- Dimensions: 270 x 380 x 50 mm
- Degree of Protection: IP20
- Ambient Temperature Range: 0 to 40 °C
- Internal Air-Cooling with Pulse Patterns
- Extended Safety Integrated Functions, including DRIVE-CLiQ Cable Support
This single motor module is built for durability, featuring internal air-cooling and advanced safety features to ensure smooth operation even in demanding industrial environments. With its robust design and versatile voltage support, it is an excellent solution for motor drives in motion control systems.
