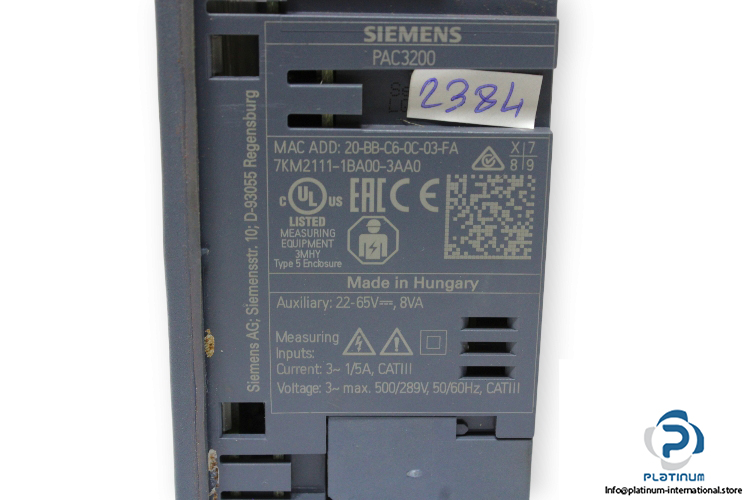

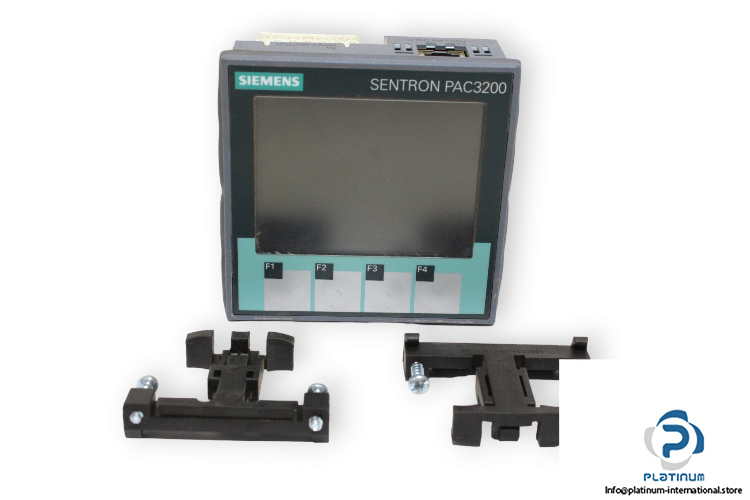

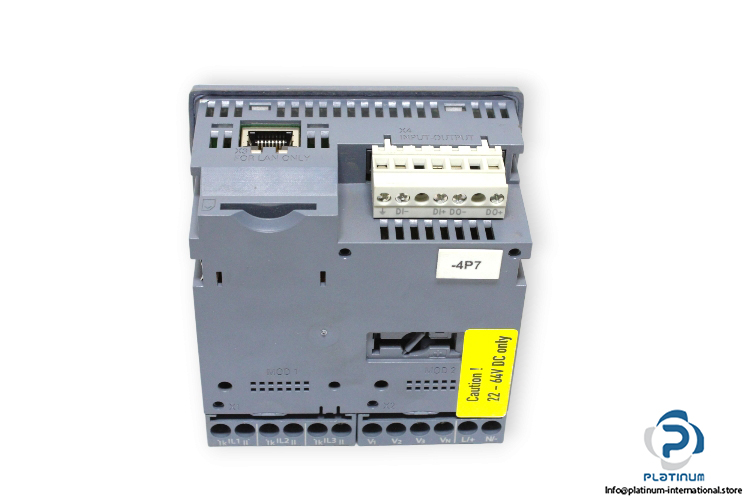

Siemens 7KM2111-1BA00-3AA0 Sentron Measuring Device
Manufacturer: Siemens
Type: Sentron Measuring Device
MNR: 7KM21111BA003AA0
Series: PAC3200
Supply voltage at DC: 22 … 65 V DC
Power: 8 VA
Voltage at AC: L-L: 500 V, L-N: 289 V
Frequency: 50/60 Hz
Current: 1/5 A
No. of digital inputs (DI): 1
No. of digital outputs (DO): 1
Type of electrical connection: screw-type terminals
Operating Temperature: -10 … +55 °C
Protection class: IP65
Design of the display: LCD
Communication: Modbus TCP
Dimensions: 96 x 96 x 56 mm
