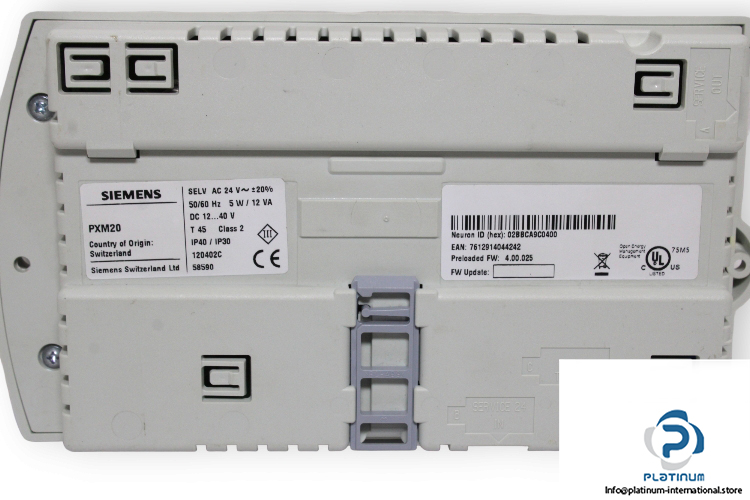

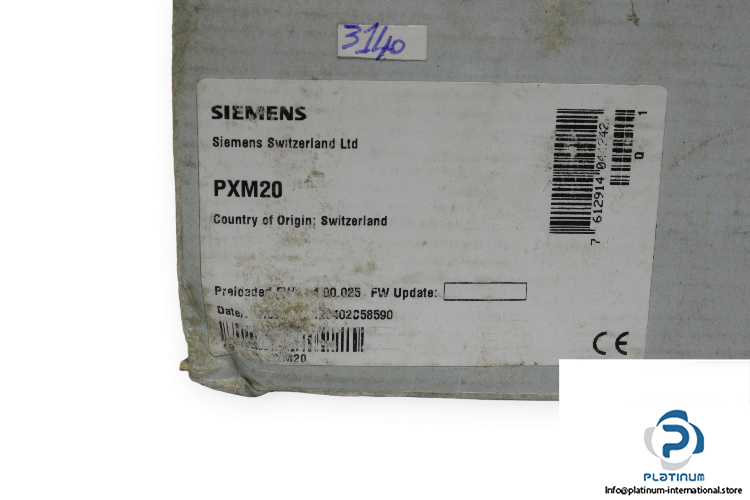

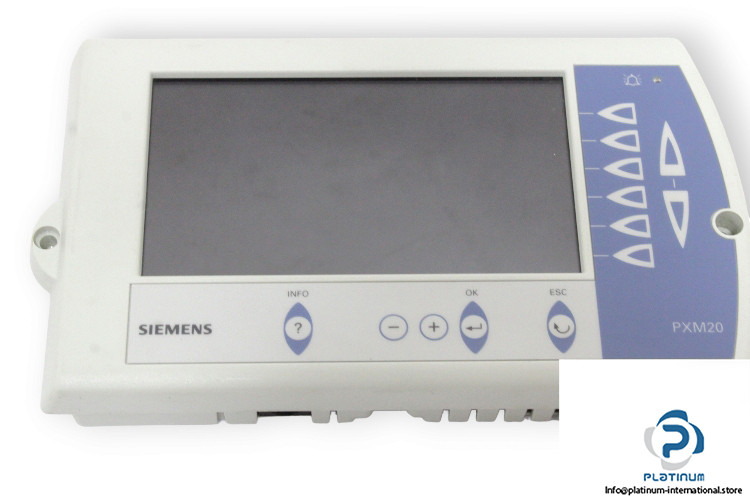

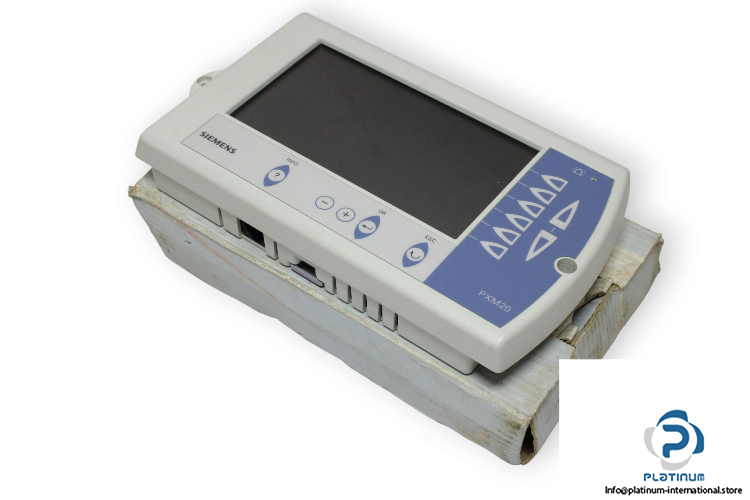

Siemens PXM20 Operator Unit
Manufacture: Siemens
Type: Operator Unit with BACnet on LonTalk
Model: PXM20
Part No.: 02BBCA9C0400
Operating voltage: 24 V AC ± 20 %, 12 … 40 V DC
Frequency: 50/60 Hz
Power consumption: 5 W/12 VA
Display area size: 123 x 68 mm
No. of dots: 240 x 128 dots
Keyboard: Keypad with plastic membrane and pressure point
Interface type: RS 232-interface
Mounting: DIN rail
Ambient temperature operation: 0 … 45 °C
Degree of protection: IP 40 (built-in), else IP30
Dimensions (W x H x D): 210 x 117 x 37 mm
