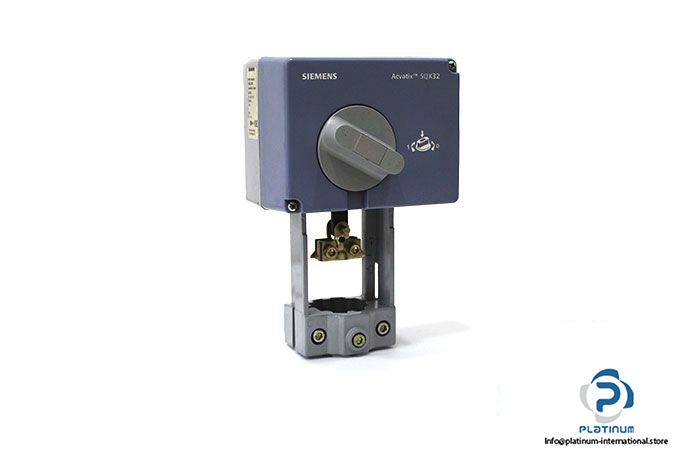

Siemens SQX32.00 Electromotoric Actuator
SIEMENS SQX 32.00 ELECTRO MOTORIC ACTUATOR
The Siemens SQX 32.00 Electro Motoric Actuator from the Acvatix„¢ TM family is engineered for precise water-side control in HVAC systems. Designed for use with 20 mm stroke valves, it ensures reliable regulation of chilled water, low-temp hot water, and high-temp hot water in heating, ventilation, and air conditioning applications. Built to deliver efficient performance under demanding conditions, this actuator combines robust construction with versatile positioning capabilities.
Manufacturer: SIEMENS
Type: Electro Motoric Actuator
Family: Acvatix TM

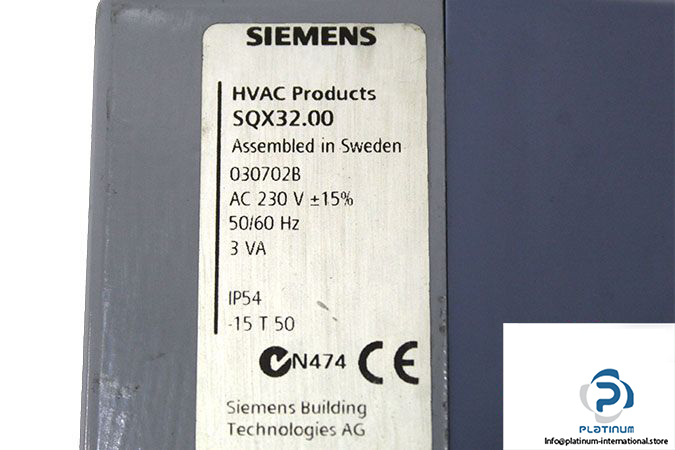

Model: SQX 32.00
MRN: 030702B
Materials:
| Operating Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Power Consumption | 3 VA |
| Positions | 3, 20 mm Stroke |
| Positioning Force | 700 N |
| Positioning Time at 50 Hz | 150 sec. |
| Ambient Temperature (Operation) | -15 / 50 °C |
| Medium Temperature | -25 / 150 °C |
| Mounting Position | Upright to Horizontal |
| Protection Class | IP54 (EN 60730) |
| Actuator Housing and Console | Die-cast Aluminum |
| Housing Box and Manual Adjuster | Plastic |
| Uses | With 20 mm stroke for water-side control of HVAC systems, including chilled water, low-temperature hot water, and high-temperature hot water. |
