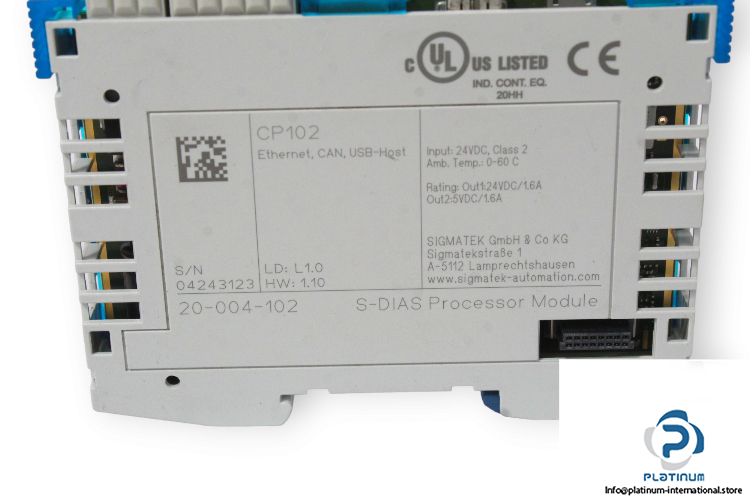

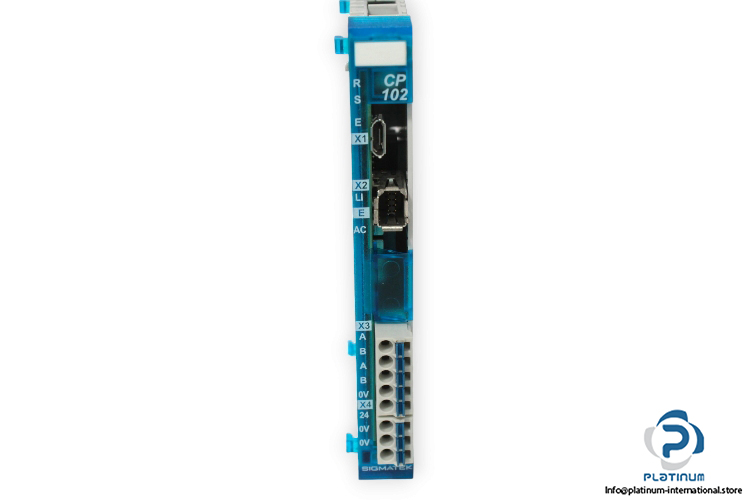

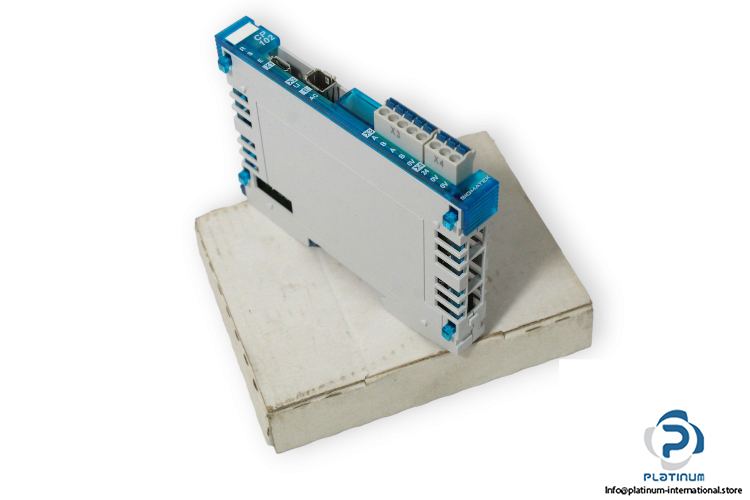

Sigmatek CP102 CPU Module
Manufacture: Sigmatek
Type: Cpu module
Model: CP102
Art. No.: 20-004-102
Supply voltage: +18 … 30 V DC, typically +24 V DC
Current consumption of voltage supply (+24 V): typically 100 mA, maximum 1 A
Processor: EDGE2 Technology
Addressable I/O/P modules: CAN participants: > 100
S-DIAS bus: 64
Internal program and data memory(DDR3 RAM): 256-Mbyte
Internal remnant data memory: 2-kbyte
Interfaces: 1x Ethernet,1x CAN,1x USB-OTG (Host/Device) (for service purposes only), 1x S-DIAS (without manager)
Ambient temperature: 0 … 60°C
Protection type: IP20
Dimensions: 12.5 x 104.2 x 72 mm
