SKF 23036 CC/C3W33 Spherical Roller Bearing
신제품
요청 시 제공 가능
Spherical Roller Bearing SKF 23036CC/C3W33 구면 롤러 베어링으로 180 mm 보어, 280 mm 외경 및 재윤활 홈 설계를 갖추고 있습니다. 고부하 산업용 애플리케이션을 위한 2600 rpm 및 C3 클리어런스 등급입니다.
18023036CC/C3W33280bearingboreC3ClearancediameterIndustrialInternationallubricationmmOuterPlatinumrelubricationRollerSKFSphericalW33
방대한 재고
글로벌 배송
전문 지원
품질 보장

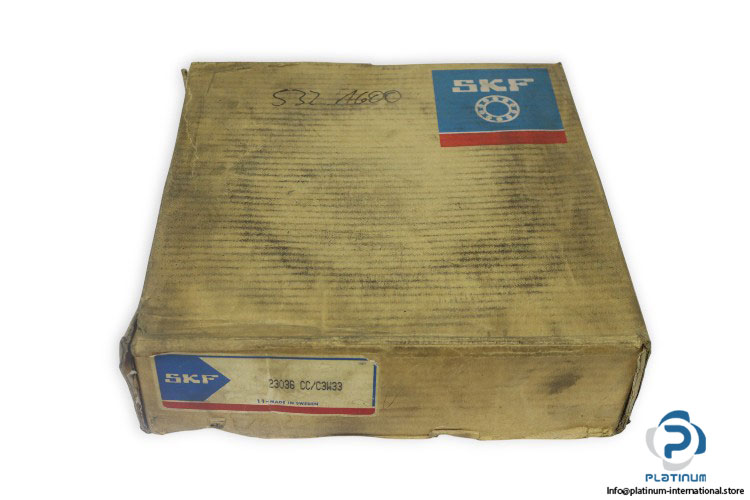

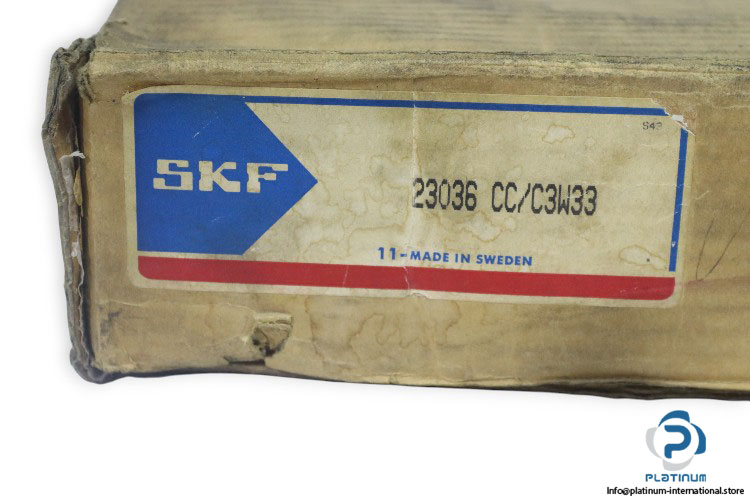

SKF 23036CC/C3W33 Spherical Roller Bearing
The SKF 23036CC/C3W33 is a precision-engineered spherical roller bearing designed for high-load applications and superior durability. It features relubrication capability with an annular groove and three lubrication holes, ensuring long service life and consistent performance under demanding conditions.
Manufacturer: SKF
Type: Spherical Roller Bearing with Relubrication Features
Model: 23036CC/C3W33
| Bore Diameter (d) | 180 mm |
| Outer Diameter (D) | 280 mm |
| Width (B) | 74 mm |
| Dynamic Load Rating (Cr) | 883,000 N |
| Static Load Rating (C0r) | 1,250,000 N |
| Limiting Speed | 2600 rpm |
| Reference Speed | 2000 rpm |
| Lubrication | W33, Annular Groove and Three Lubrication Holes in Outer Ring |
| Design | CC, Optimized Internal Design |
| Clearance | C3 |
