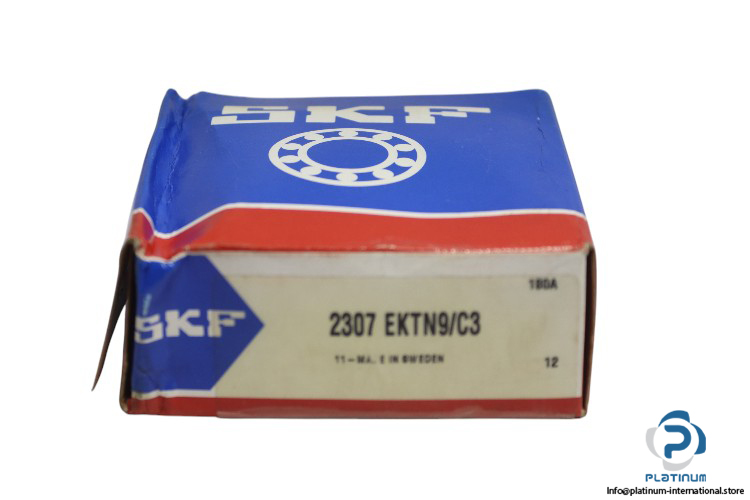

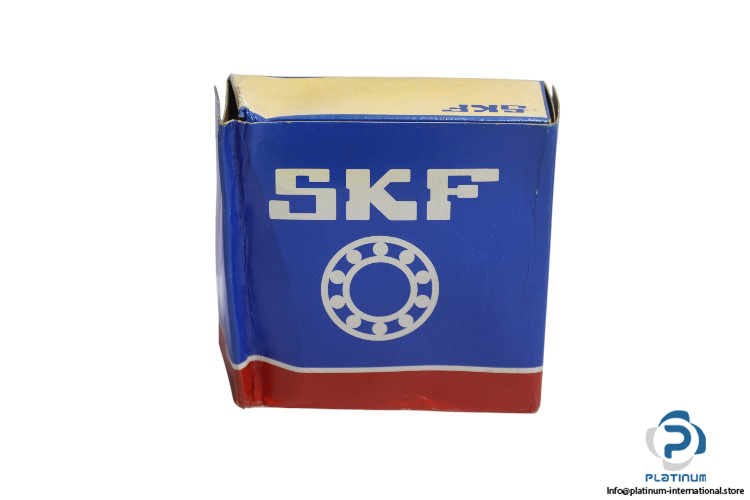

SKF 2307 EKTN9/C3 Self-Aligning Ball Bearing
SKF 2307 EKTN9/C3 Self-Aligning Ball Bearing
The SKF 2307 EKTN9/C3 Self-Aligning Ball Bearing is designed for applications requiring high-speed performance and compensation for shaft misalignment. With a tapered bore and a TN9 nylon glass fiber cage, this bearing ensures durability, reduced friction, and reliable operation in demanding conditions.
Manufacturer: SKF
Type: Self-Aligning Ball Bearing
Model: 2307 EKTN9/C3
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 80 mm |
| Width | 31 mm |
| Dynamic Load Rating | 39.7 kN |
| Static Load Rating | 11.2 kN |
| Limiting Speed | 12,000 RPM |
| Reference Speed | 16,000 RPM |
| Clearance Class | C3 |
| Cage | TN9, Non-Metallic, Nylon Glass Fiber Filled Cage |
| Bore Type | K, Tapered Bore |
