SKF 23228 CCK/C3W33 Spherical Roller Bearing
140 mm 테이퍼 보어, C3 클리어런스, W33 윤활 그루브 및 고하중 용량을 갖춘 SKF 23228 CCK/C3W33 구면 롤러 베어링, 중장비 산업용.

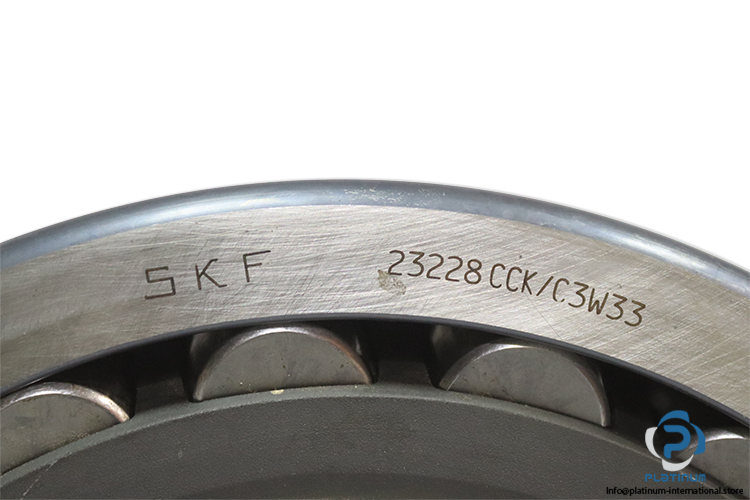

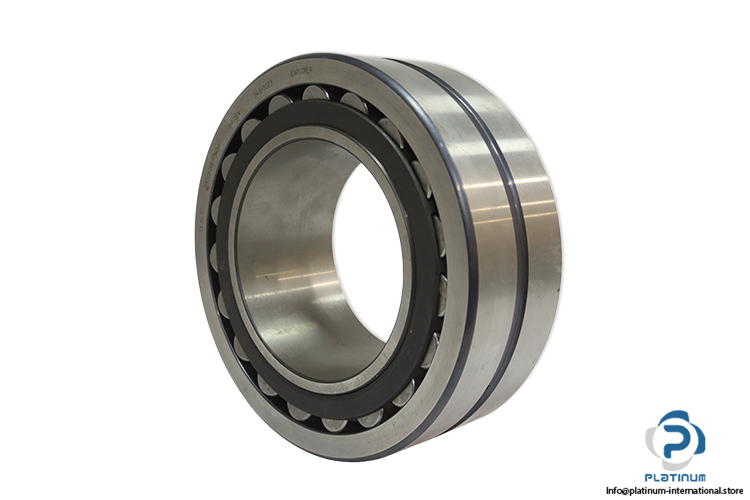

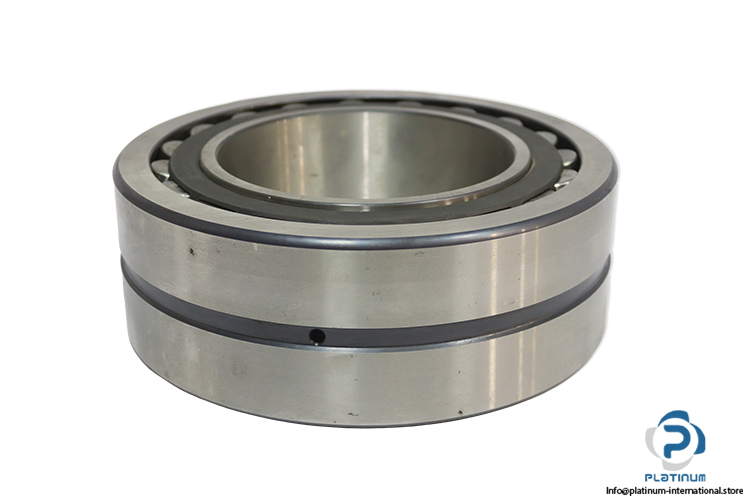

SKF 23228 CCK/C3W33 Spherical Roller Bearing
The SKF 23228 CCK/C3W33 is a high-performance spherical roller bearing designed to accommodate heavy radial loads and axial loads in both directions while compensating for shaft misalignment.
Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 23228 CCK/C3W33
Recommended Accessories & Compatible Equipment:
For optimal performance and extended service life, this spherical roller bearing can be combined with adapter sleeves, withdrawal sleeves, bearing housings, plummer block housings, industrial seals, lubrication systems, and high-performance greases. These components ensure correct mounting, reliable lubrication, and protection in demanding industrial applications. All compatible bearing accessories and lubrication solutions are available through Platinum International Company for Industrial Technologies. Explore Bearing Accessories Category
Explore Lubrication Systems & Greases Category
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 140 mm |
| Outer Diameter (D) | 250 mm |
| Width (B) | 88 mm |
| Basic Dynamic Load Rating | 962 kN |
| Basic Static Load Rating | 1250 kN |
| Reference Speed | 1700 r/min |
| Limiting Speed | 2400 r/min |
| Bore Type | K, Tapered 1:12 |
| Cage | Sheet Metal |
| Radial Internal Clearance | C3 |
| Design | CC |
| Lubrication | W33, 3 lubrication holes equally spaced with lubrication groove on outer ring |
