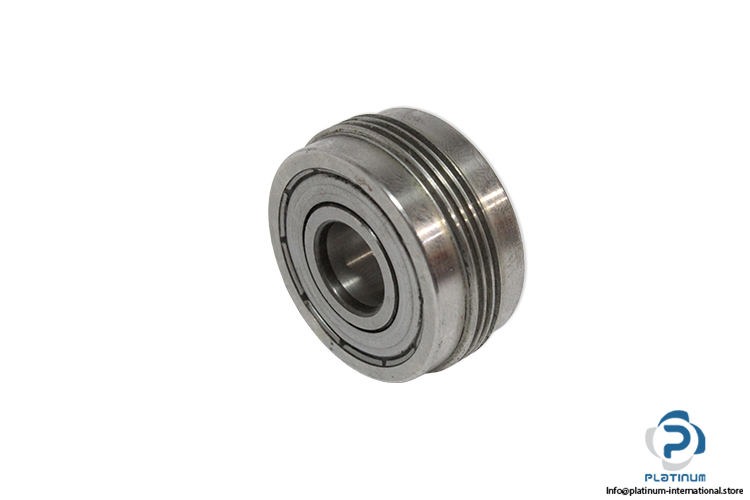

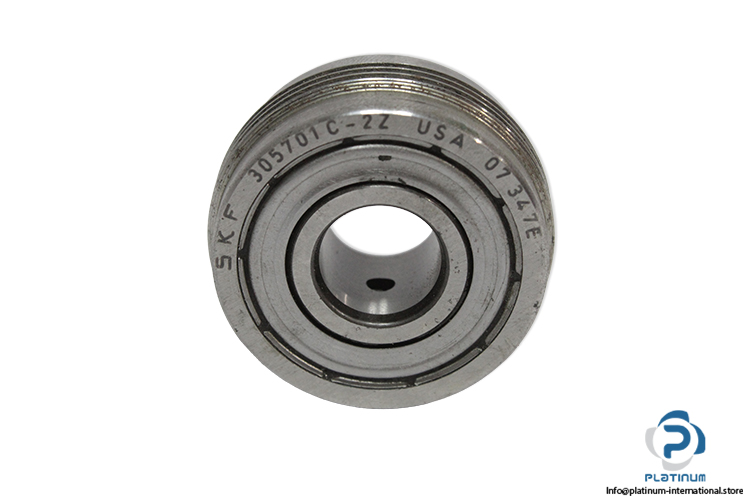

SKF 305701C-2Z Yoke-Type Track Roller
SKF 305701 C-2Z Cam Roller
The SKF 305701 C-2Z Cam Roller is a high-performance yoke-type track roller designed for precision motion applications requiring durability, high load capacity, and smooth operation. Engineered with shielded sealing on both sides, this cam roller ensures reliable performance and protection in demanding industrial environments.
Manufacturer: SKF
Type: Cam Roller (Yoke-Type Track Roller)
Model: 305701 C-2Z
| Functional Outside Diameter | 35 mm |
| Bore Diameter | 12 mm |
| Width | 15.9 mm |
| Dynamic Load Rating | 9.75 kN |
| Static Load Rating | 4.75 kN |
| Fatigue Load Limit | 0.2 kN |
| Limiting Speed | 14,000 rpm |
| Sealing | 2Z, Shielded On Both Sides |
| Material, Bearing | Bearing Steel |
| Recommendation | Ideal choice for high-speed track systems and cam mechanisms where reliability and long service life are essential. |
