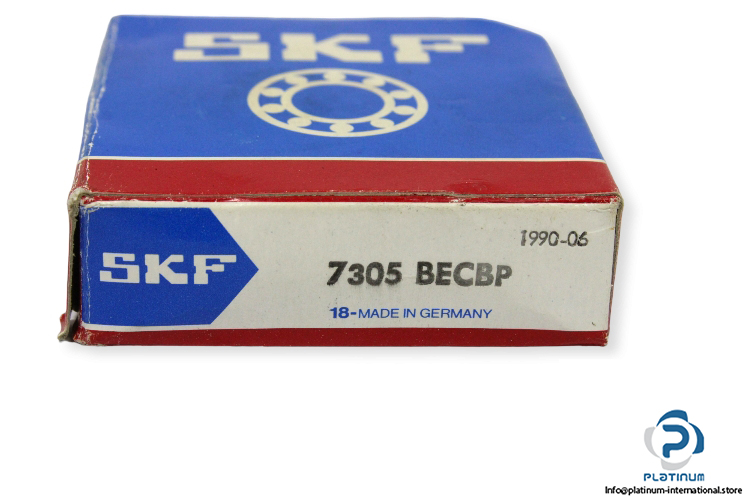

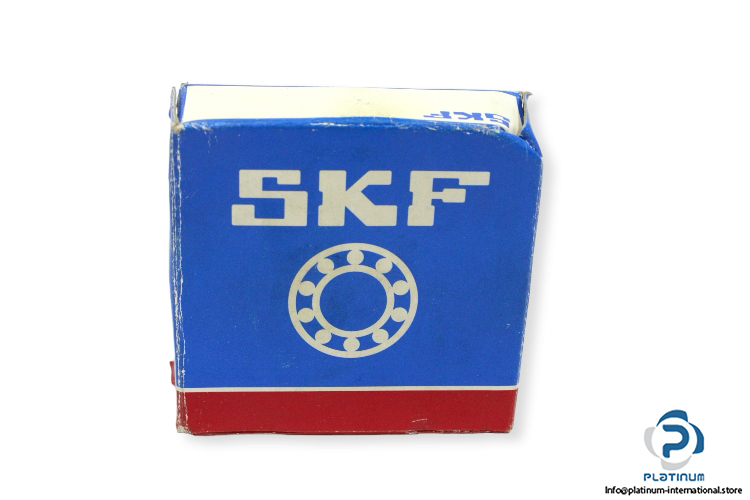

SKF 7305 Becbp Angular Contact Ball Bearing
Manufacturer: SKF
Type: Single row angular contact ball bearing
Model: 7305BECBP
Dimensions:
Bore Diameter d: 25 mm
Outer diameter D: 62 mm
Width: 17 mm
Contact angle: 40 °
Basic dynamic load rating: 26.5 kN
Basic static load rating: 15.3 kN
Fatigue load limit: 0.655 kN
Limiting speed: 15000 RPM
Reference speed: 14000 RPM
External design: CB; Bearing for universal matching. Two bearings arranged back-to-back or face-to-face have Normal axial internal clearance.
Cage material: Glass fibre reinforced PA66 cage
