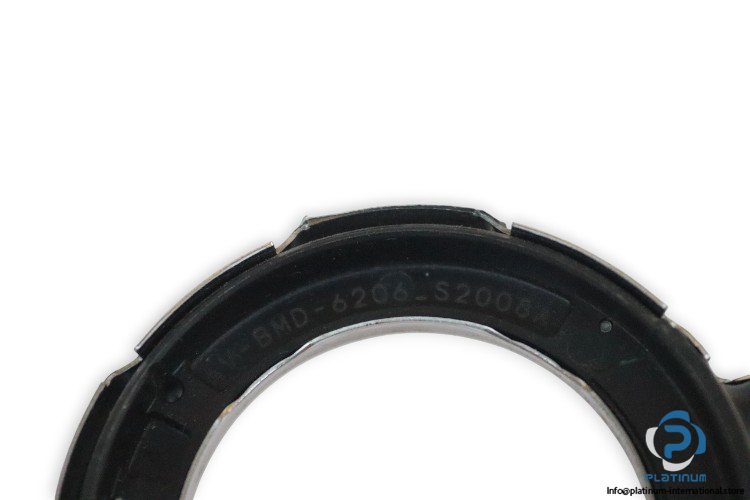

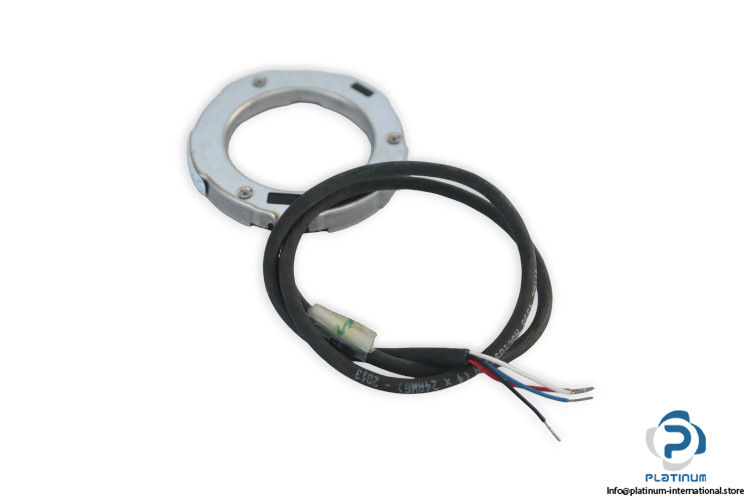

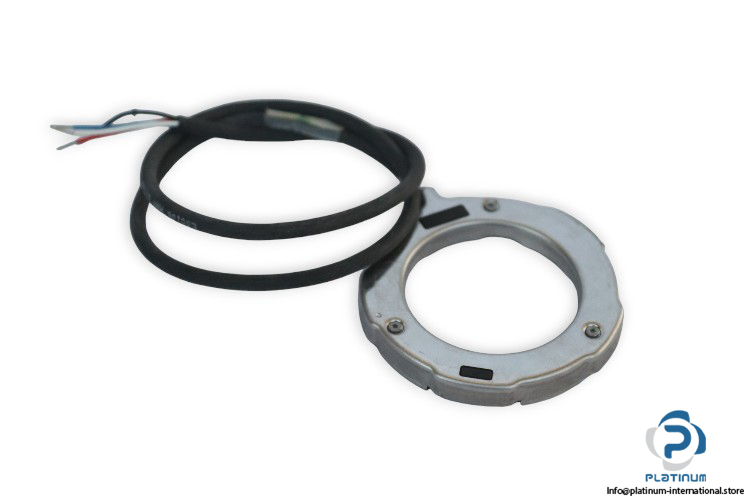

SKF Motor Encoder Unit BMD6206S2008A

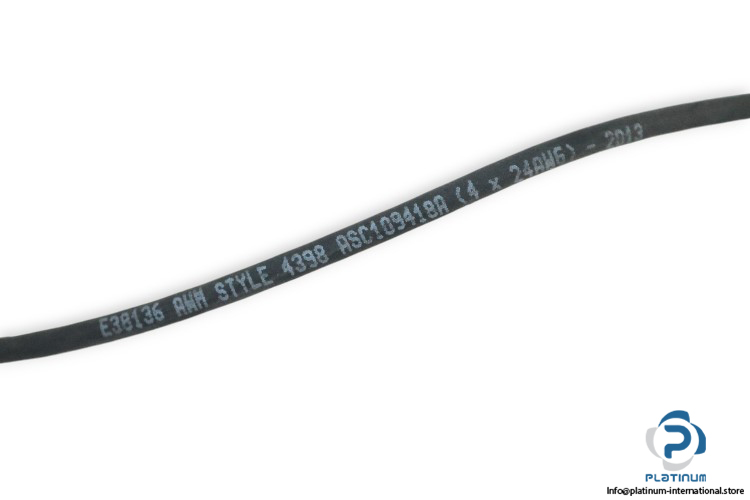

The SKF Motor Encoder Unit (Model: BMD6206S2008A, Cable Part No.: 4398 ASC109418A E38136) is a robust and compact sensor designed for speed and direction control. This unit features a Faraday cage to protect from external magnetic fields and an embedded electromagnetic interference (EMI) filter that safeguards against power surges. This encoder unit is suitable for a variety of AC induction motor applications, offering reliable performance in challenging environments.
Features:
- Robust, compact sensor enables speed and direction control
- Faraday cage protects from the effects of external magnetic fields
- Embedded electromagnetic interference (EMI) filter protects against power surges
Typical Applications:
- AC induction motors in forklift trucks
- Electric vehicles
- Agricultural vehicles
- Material handling
- Construction machinery
- Hydraulic pumps
Technical Specifications:
- Bearing Unit type: Deep groove ball bearing
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 62 mm
- Overall Width: 22.2 mm
- Basic dynamic load rating (C): 20.3 kN
- Basic static load rating (C0): 11.2 kN
- Fatigue load limit (Pu): 0.475 kN
- Reference speed: 24000 r/min
- Limiting speed: 15000 r/min
