SMC AKB01B Check Valve
중고
재고 있음60 단위즉시 배송 가능
provides reliable control for air flow with a proof pressure of 1.5 MPa and operating pressure range of -100 kPa to 1 MPa. Cracking pressure: 0.005 MPa. It features female to male thread free flow direction and is suitable for temperatures ranging from -5 to 60 °C. Body size: 1/8.
0.0051.5560AirAKB01BCCheckCompactControlCrackingFemaleFluidIndustrialmaleMPaPressureProofRangeSMCTemperatureThreadtoValve
방대한 재고
글로벌 배송
전문 지원
품질 보장

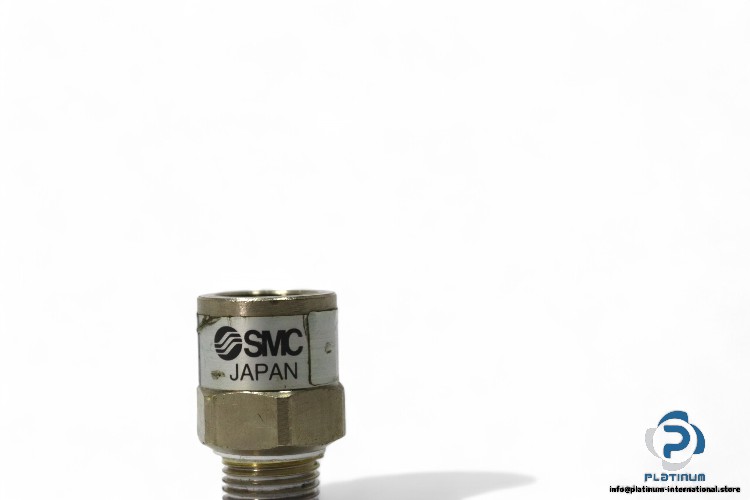

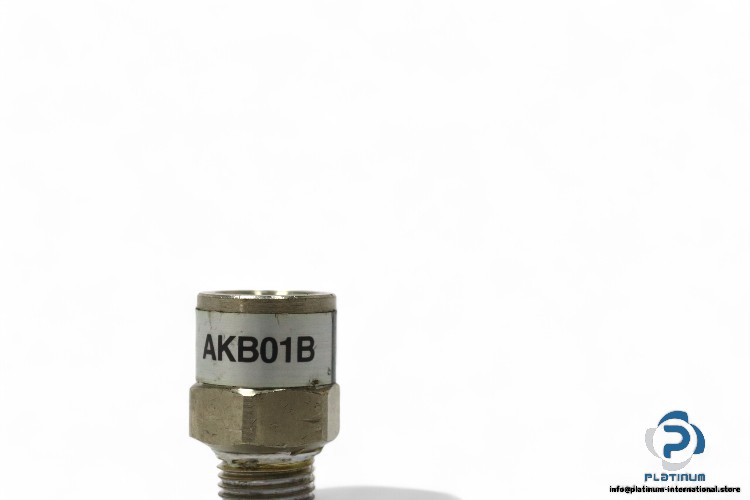

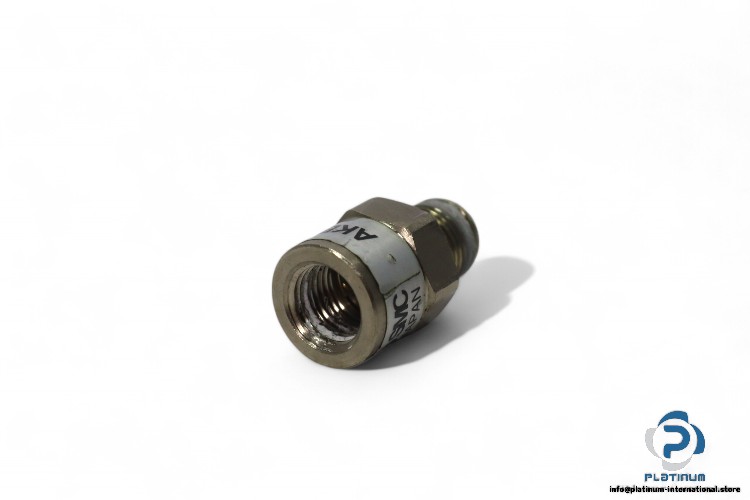

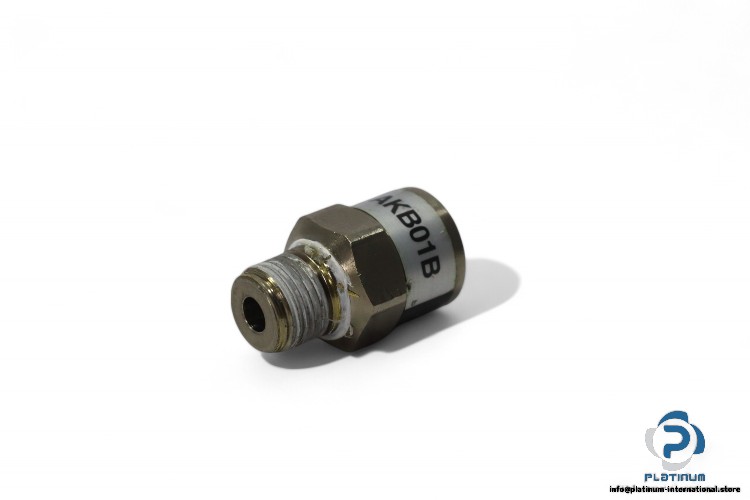

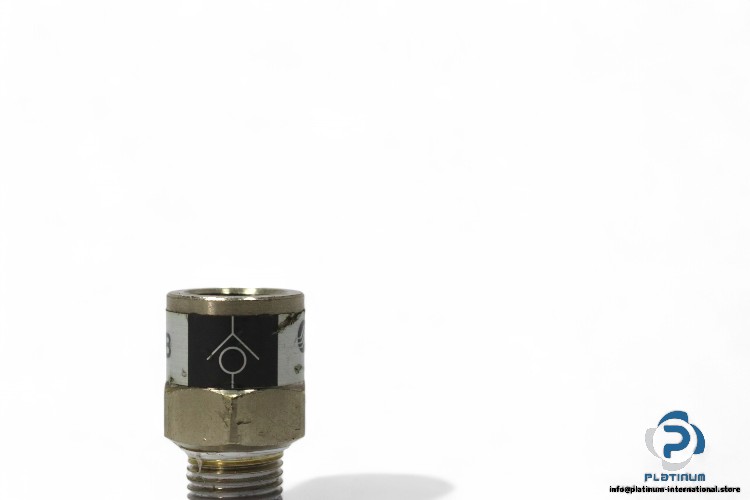

SMC AKB01B Check Valve
The SMC AKB01B Check Valve is designed to ensure the controlled flow of air in various industrial applications. It features a compact design with reliable performance under a wide operating pressure range and temperature conditions, making it suitable for diverse fluid control systems.
Manufacturer: SMC
Type: Check Valve
Model: AKB01B
Technical Data:
- Fluid: Air
- Proof Pressure: 1.5 MPa
- Operating Pressure Range: -100 kPa to 1 MPa
- Cracking Pressure: 0.005 MPa
- Free Flow Direction: Female to Male Thread
- Ambient Temperature and Operating Fluid Temperature: -5 to 60 °C
- Body Size: 1/8
