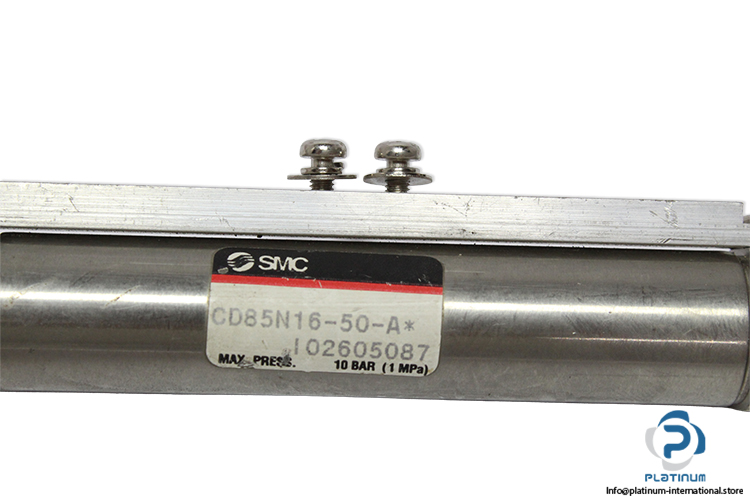

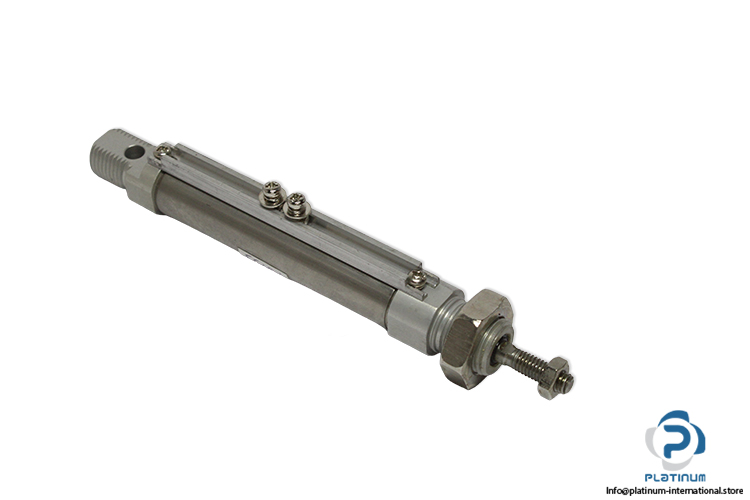

SMC CD85N16-50-A ISO Cylinder
SMC CD85N16-50-A ISO Cylinder
The SMC CD85N16-50-A ISO cylinder from the C85 series is a compact pneumatic actuator designed for reliable linear motion in industrial automation systems. Built with a circular profile and double-acting mechanism, this cylinder ensures stable performance and efficient air-powered operation for various machinery and control applications.
Manufacturer: SMC
Type: ISO Cylinder
Model: CD85N16-50-A
Code: I02605087
Series: C85
| Piston Diameter | 16 mm |
| Stroke | 50 mm |
| Port Size | 7 mm |
| Fluid | Air |
| Mode Of Operation | Double Acting |
| Maximum Operating Pressure | 1 MPa |
| Shape | Circular |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Cushion | Rubber Cushion, Air Cushion (Except ø8) (Non-Rotating: Rubber Bumper Only) |
| Temperature Range | “20 To 80 °C |
