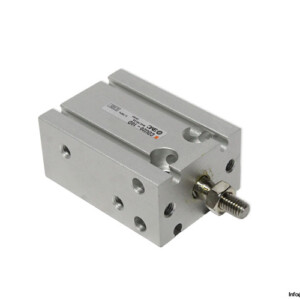

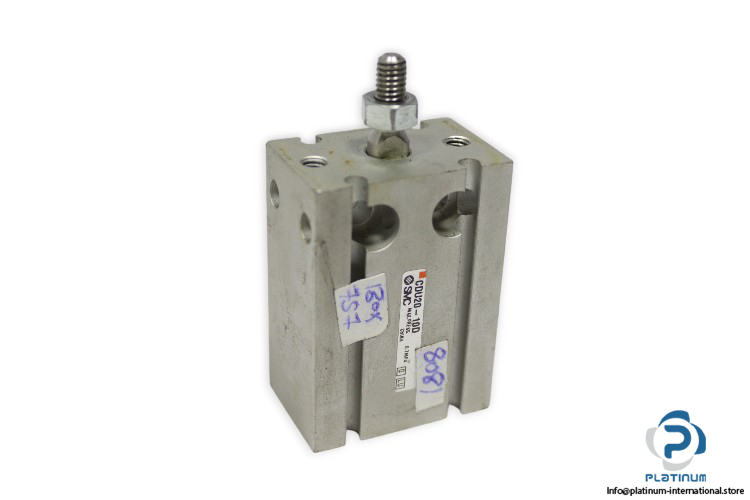

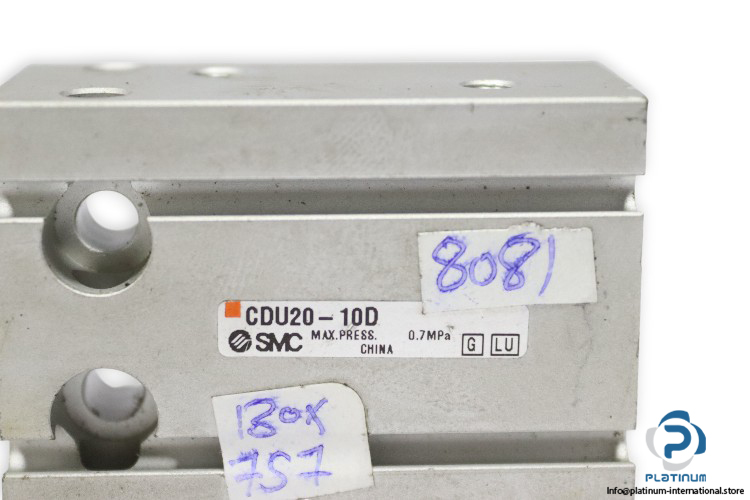

SMC CDU20-10D Compact Cylinder
중고
재고 있음2 단위즉시 배송 가능
SMC CDU20-10D Free Mount Cylinder The SMC CDU20-10D Free Mount Cylinder is a compact pneumatic actuator designed for precise motion control. Featuring a 20 mm bore, 10 mm stroke, double-acting operation, built-in magnet, and durable aluminum alloy construction, it delivers reliable performance in industrial automation applications.
ActingActuatorAirAluminumAutomationCompactControlcyCylinderDoublefreeIndustrialMagneticMotionmountPneumaticPneumaticsRODSingleSMC
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Code | G LU |
| Series | CU |
| Fluid | Air |
| Stroke | 10 mm |
| Bore Size | 20 mm |
| Operating Mode | Double acting, male thread, Single rod |
| Magnet | With auto switch Built-in magnet |
| Proof pressure | 1,05 MPa |
| Operating pressure | max. 0.7 MPa |
| Piston speed | 50 to 500 mm/s |
| Cushion Type | Rubber bumper |
| Lubrication | Non-lube |
| Port size | 5MM |
| Material Body | Aluminum alloy |
| Material Piston rod | Stainless steel |
| Material Seal | NBR |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | Used |
| SKU | 1040948 |
| Weight | 0,14 |
