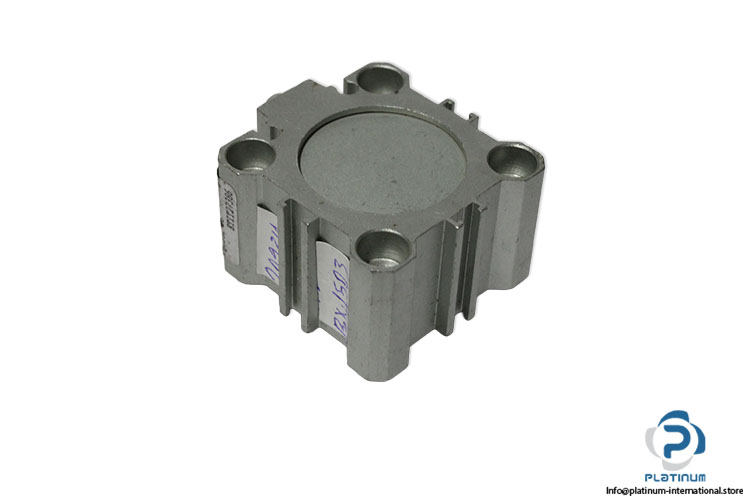

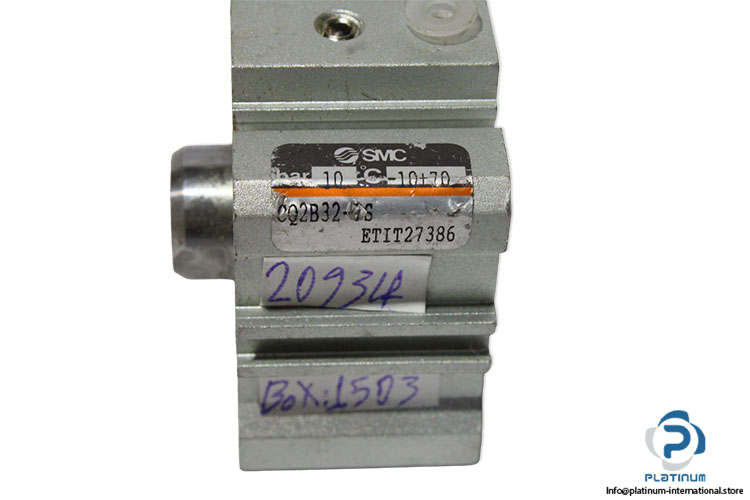

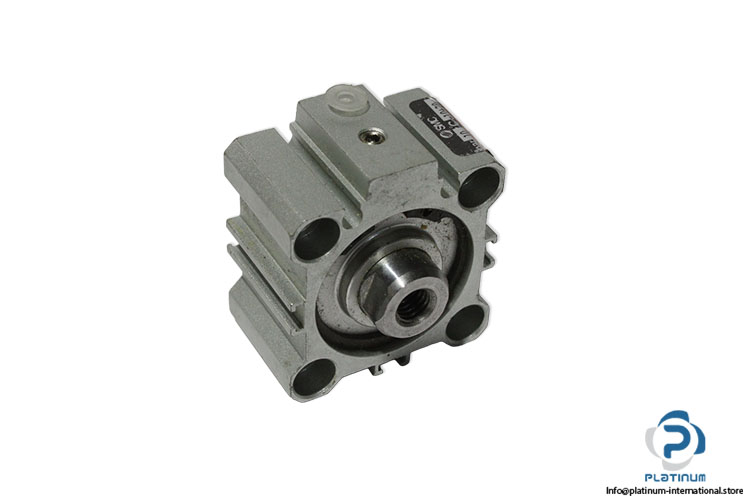

SMC CQ2B32-5S Compact Cylinder
신제품
재고 있음2 단위즉시 배송 가능
The SMC CQ2B32 5S Compact Cylinder is a reliable pneumatic actuator featuring a 32 mm bore, 5 mm stroke, and single acting operation. Built with an aluminum cylinder tube and CQ2 compact design, it delivers precise and efficient motion for industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Code | ETIT27386 |
| Series | CQ2 |
| Fluid | AIR |
| Stroke | 5 mm |
| Bore Size | 32 mm |
| Piping type | Screw-in piping |
| Operating Mode | Single acting, Female thread |
| Magnet | Without auto switch magnet |
| No. of auto switch | 1 |
| Mounting style | Through-hole (Standard) |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1 MPa/10 bar |
| Piston speed | 50 to 500 mm/s |
| Port size | 5mm |
| Material Cylinder Tube | Aluminum |
| Ambient and fluid temperature | -10 to 70°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097421 |
| Weight | 0,15 |
