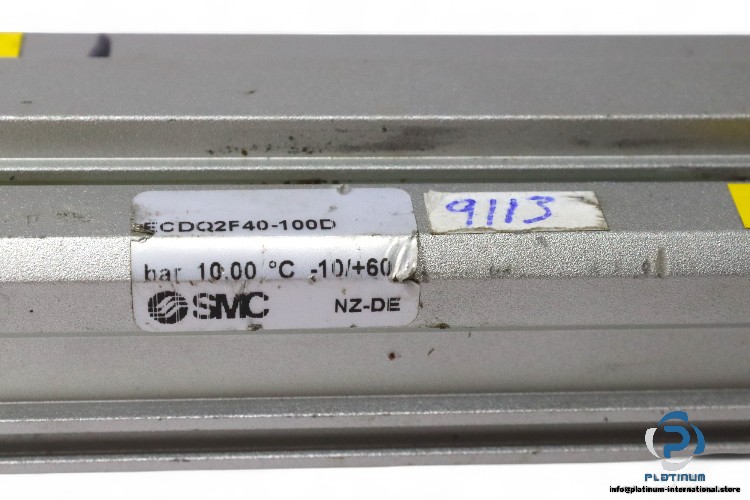

SMC ECDQ2F40-100D Compact Cylinder
The SMC Compact Cylinder (Model: ECDQ2F40-100D) features a 100 mm stroke length, 40 mm piston diameter, double acting mode, and operates at a maximum pressure of 10 bar with G1/8 pneumatic connection.

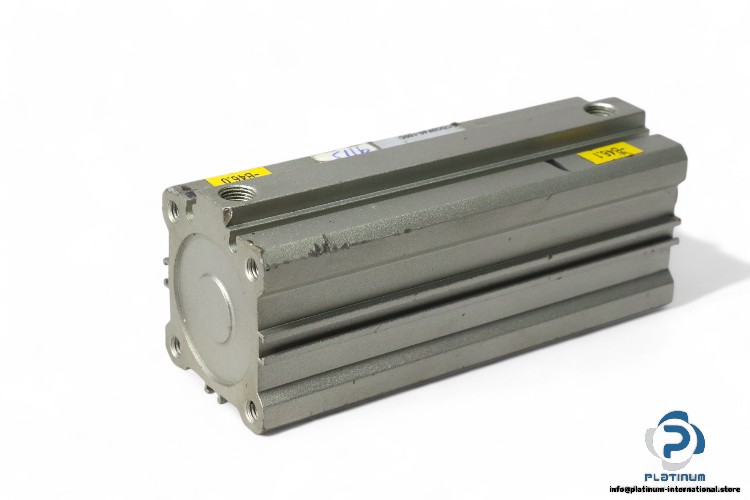

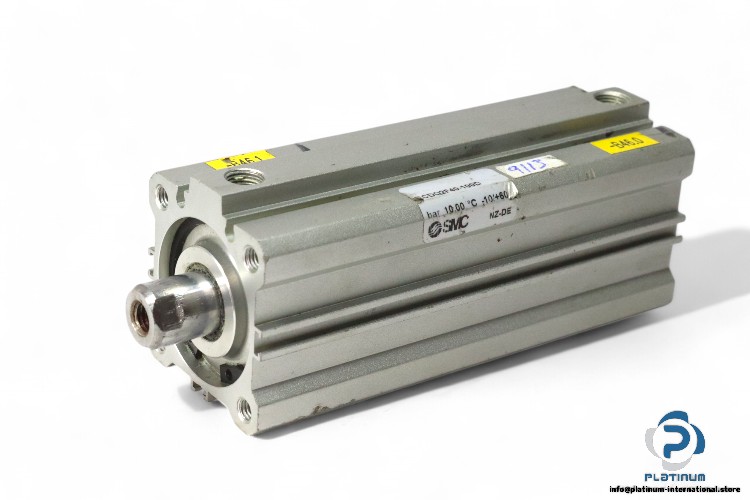

SMC Compact Cylinder – Model: ECDQ2F40-100D
The SMC Compact Cylinder (Model: ECDQ2F40-100D) is a double-acting pneumatic cylinder designed for efficient and reliable performance. It features a stroke length of 100 mm and a piston diameter of 40 mm. The piston rod has a female thread, and the cylinder operates with a maximum pressure of 10 bar. This compact cylinder is suitable for various industrial applications and offers a pneumatic connection of G1/8.
Technical Specifications:
- Stroke Length: 100 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Pneumatic Connection: G1/8
- Temperature Range: -10 to 60 °C
This SMC Compact Cylinder is ideal for use in environments where space is limited but high performance is required. Its robust design and reliable operation make it suitable for a wide range of industrial applications.
