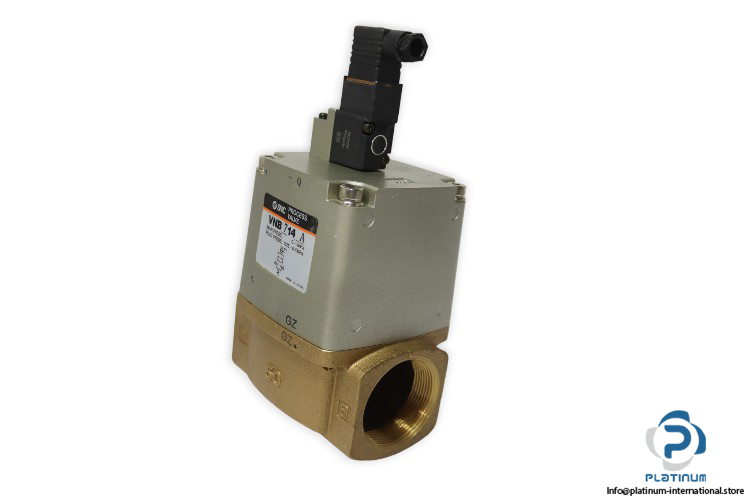

SMC VNB714A Process Valve
The SMC VNB714A Process Valve is designed for controlling water, oil, air, and vacuum media in industrial systems. Built with a durable aluminum die-casted body, it ensures reliable operation, long service life, and precise flow control. This valve comes equipped with the SMC VO307-3D-Q solenoid valve for efficient actuation and performance.
Manufacturer: SMC
Type: Process Valve
Model: VNB714A
Series: VNB
| Fluid | Water, Oil, Air, Vacuum |
| Main Pressure | 0 to 1 MPa |
| Function | 2 by 2 way valve |
| External Pilot Air | 0.25 to 0.7 MPa |
| Fluid Temperature | minus 5 to 60 degree Celsius |
| Ambient Temperature | minus 5 to 50 degree Celsius |
| Seals | NBR |
| Proof Pressure | 1.5 MPa |
| Connection | G2, G3 by 8 |

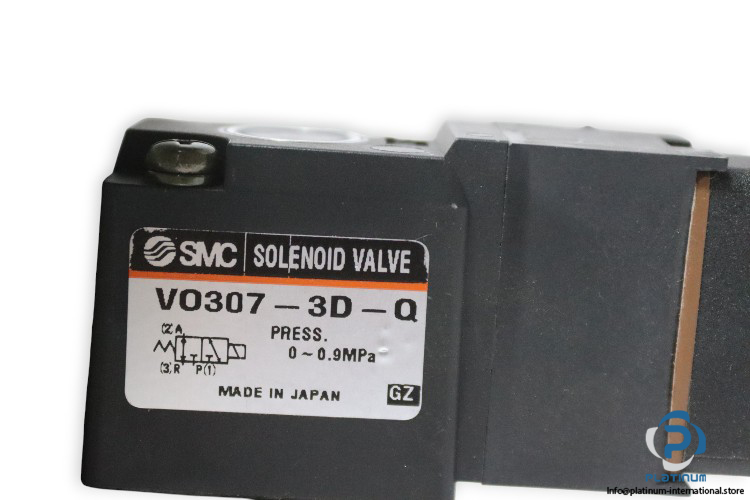

| Attached With | Solenoid Valve Model VO307-3D-Q |

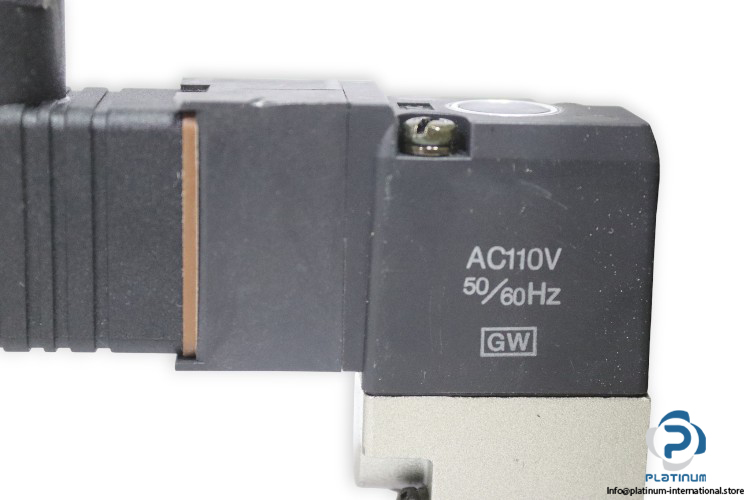

| Voltage | AC 110 V, 50 or 60 Hz |
| Type of Actuation | Direct operated type, 2 position single solenoid |
| Fluid for Solenoid Valve | Air |
| Operating Pressure | 0 to 0.9 MPa |
| Function of Solenoid Valve | 3 by 2 way valve |
| Ambient and Fluid Temperature Range | minus 10 to 50 degree Celsius |
| Response Time | 20 milliseconds or less at 0.5 MPa |
| Maximum Operating Frequency | 10 Hz |
| Body Material | Aluminum die-casted |
