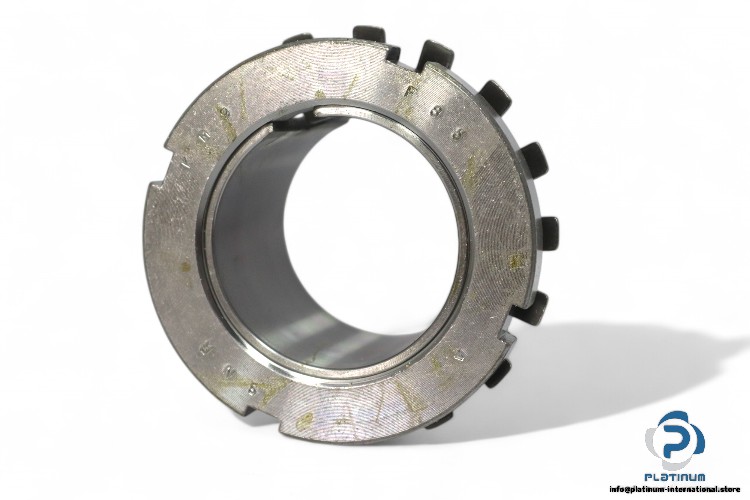

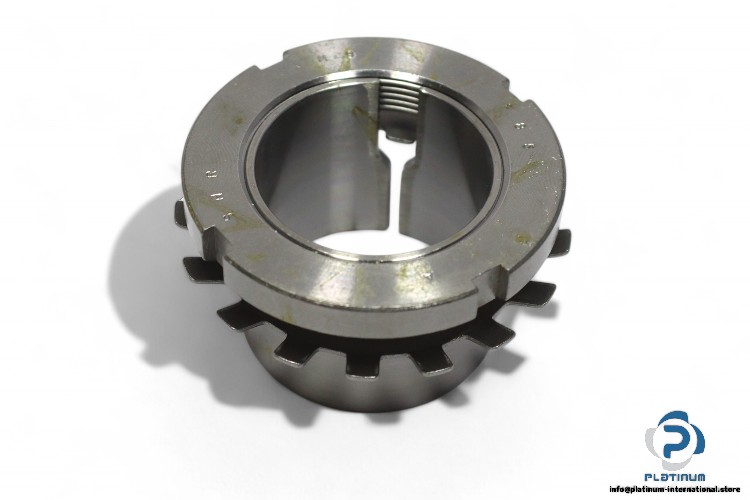

SNR H 309 Adapter Sleeve
SNR H309 Adapter Sleeve
The SNR H309 Adapter Sleeve is designed for secure mounting of bearings, featuring a precise fit and reliable performance. This adapter sleeve ensures a stable and firm connection between the shaft and the bearing, ideal for heavy-duty industrial applications.
Manufacturer: SNR
Type: ADAPTER SLEEVE
Model: H309
This SNR adapter sleeve is built to provide secure, vibration-resistant mounting and is suited for a wide range of bearing and shaft configurations. With its high-quality construction, the H309 model ensures a reliable connection for smooth bearing operation in demanding environments.

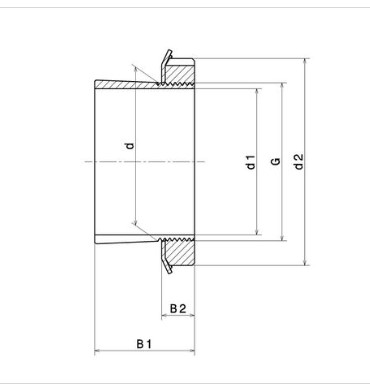

| Sleeve Bore Diameter | 40 mm |
| Internal Diameter | 45 mm |
| Outer Diameter of Locknut | 65 mm |
| Sleeve Length | 39 mm |
| Distance Between Bearing Face and Nut Rear Face | 11 mm |
| Thread G | M45x1.5 |
| Lock Nut | KM 9 |
| Washer | MB 9 |
