SNR SUCF.206 Housing Unit

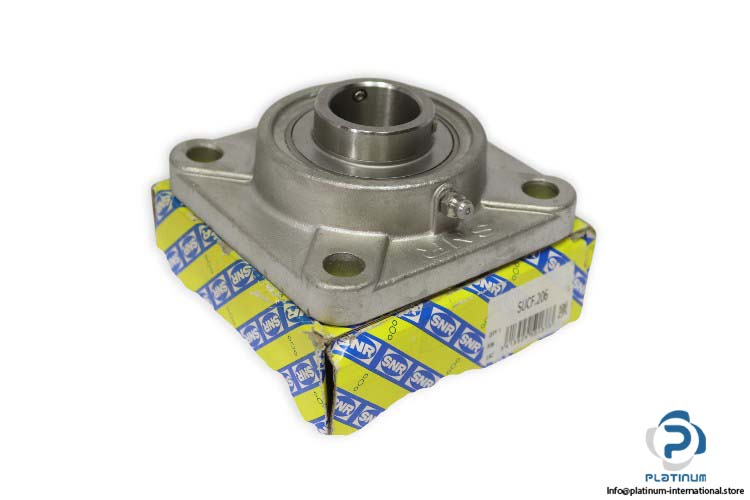

SNR / NTN SUCF206 Square Flange Housing Unit
The SNR / NTN SUCF206 is a durable square flange housing unit designed for reliable shaft support and smooth bearing operation in industrial machinery and automation systems.
Manufacturer: SNR / NTN
Type: Square Flange Housing Unit
Model: SUCF206

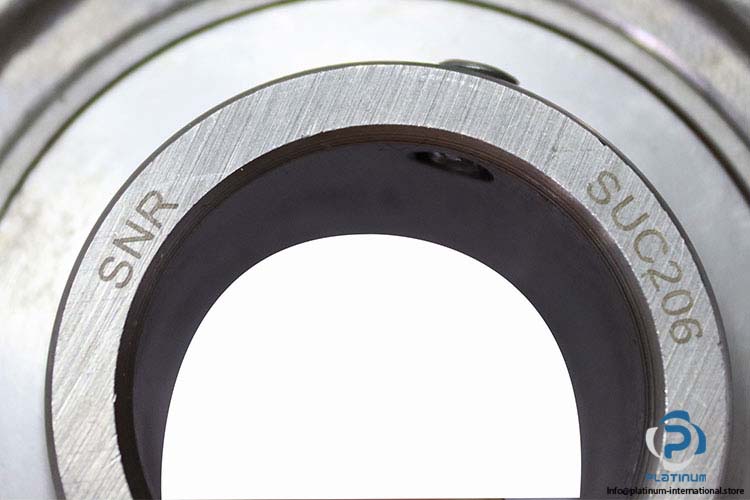

Bearing No.: SUC206

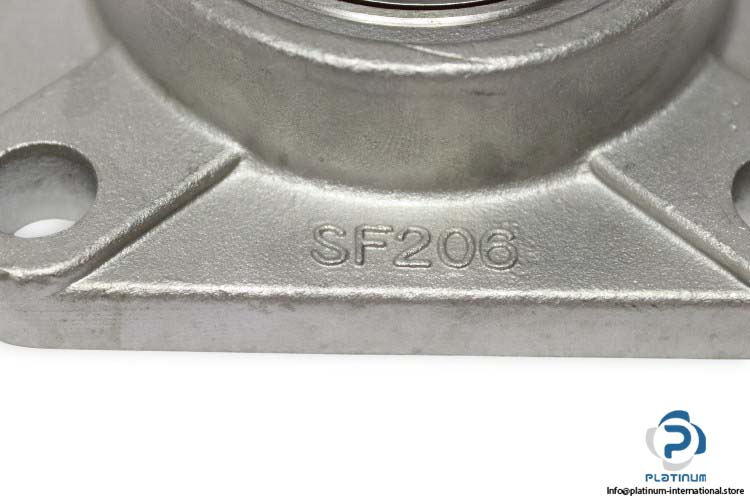

Housing Unit: SF206
| Housing height (A) | 30.5 mm |
| Housing foot / flange height (A1) | 14 mm |
| Total height from mounting surface (A2) | 40.2 mm |
| Width of Inner Ring (B) | 38.1 mm |
| Shaft Diameter (d) | 30 mm |
| Distance mounting surface to bearing center (e) | 18 mm |

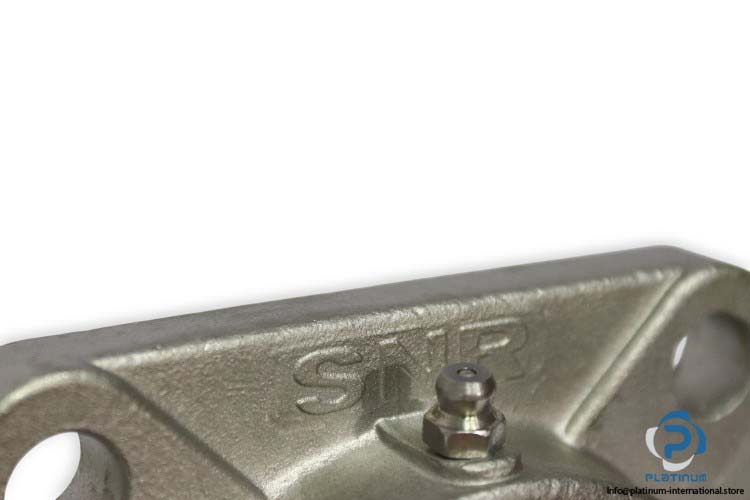

| Grease Fitting (G) | M6x1 |
| Mounting Holes Distance (J) | 83 mm |
| Housing Width / Diameter (L) | 108 mm |
| Mounting Hole Dimension (N) | 12 mm |
| Distance front side / bearing center (S) | 15.9 mm |
| Dynamic Load Rating (C) | 19.4 kN |
| Static Load Rating (C0) | 11.2 kN |
| Operating Temperature | -20 to 100°C |
