Sopra CNB0800100D Pneumatic Cylinder
중고
재고 있음1 단위즉시 배송 가능
Pneumatic Cylinder
The SOPRA CNB0800100D pneumatic cylinder offers double-acting operation, 80 mm bore, 100 mm stroke, and 10 bar maximum pressure, ideal for industrial automation and motion control systems.1080X100ActingActuatorAirAutomationbarBodyCNB0800100DCylinderDoubleG3/8IndustrialPneumaticSopraSquare
방대한 재고
글로벌 배송
전문 지원
품질 보장

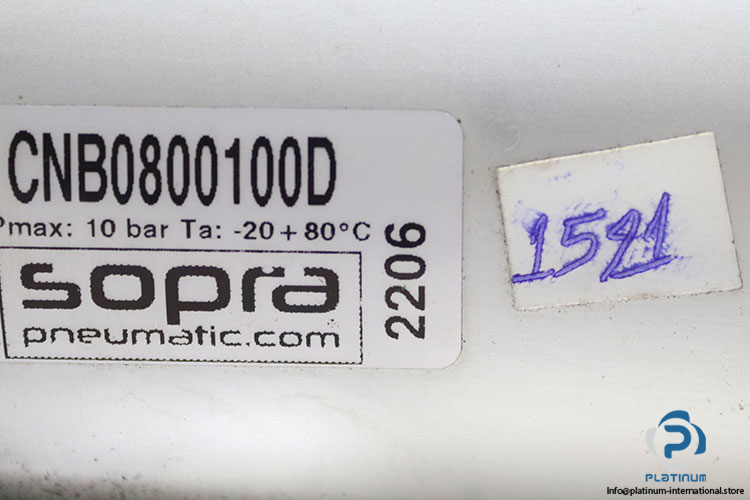

SOPRA CNB0800100D Pneumatic Cylinder
The SOPRA CNB0800100D Pneumatic Cylinder is built for precise and reliable motion control in industrial automation systems. It provides smooth double-acting operation with a durable square frame design and high performance under pressures up to 10 bar.
Manufacturer: SOPRA
Type: Pneumatic Cylinder
Model: CNB0800100D
Ref No.: 2206
| Media | Compressed Air |
| Bore Diameter | 80 mm |
| Stroke | 100 mm |
| Bore x Stroke | 80 x 100 mm |
| Rod Diameter | 22 mm |
| Frame Dimensions | 95 x 250 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Temperature Range | -20 to 80 °C |
