Stahl 8570/11-306 Switch Socket
16A 정격 전류, 200-250V AC 전압 및 내구성과 보호를 위한 유리 섬유 강화 폴리아미드 인클로저를 갖춘 산업용 벽걸이형 소켓.

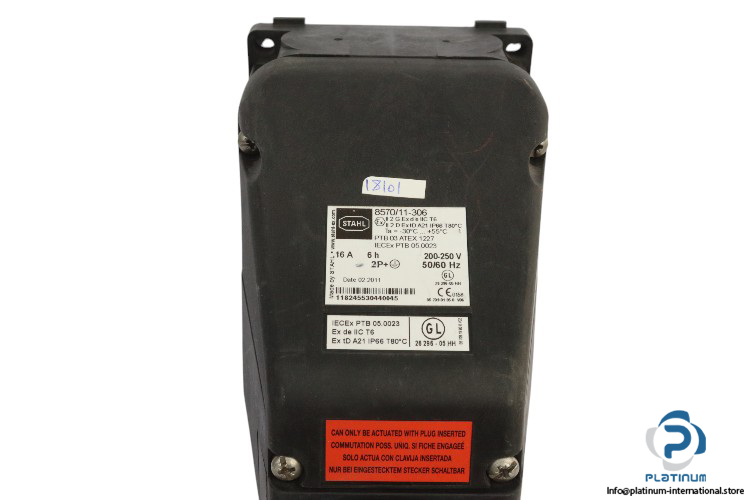

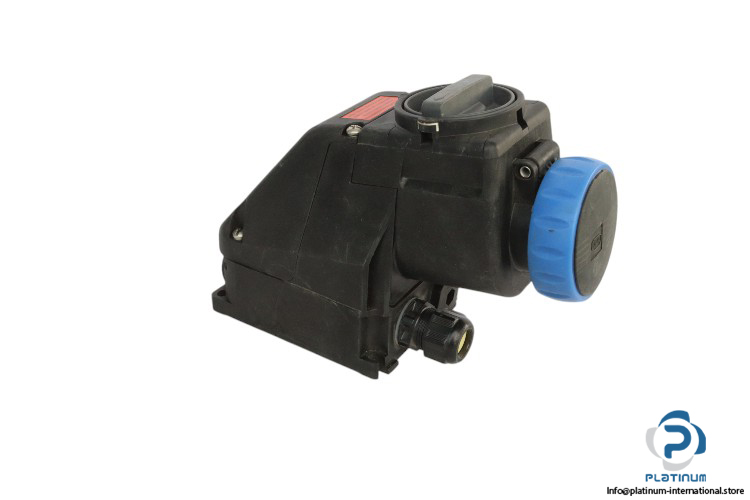

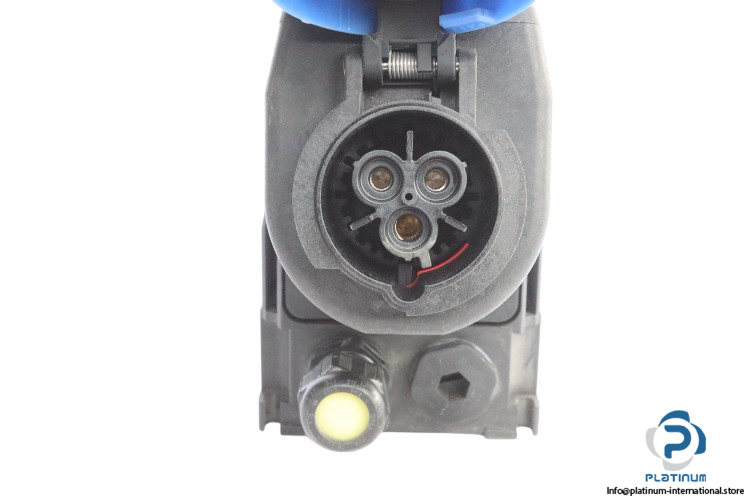

Stahl 8570/11-306 Wall-Mounting Socket / Switch Socket
The Stahl 8570/11-306 is a high-quality wall-mounting socket designed for industrial applications requiring durability, safety, and reliable power connections. Featuring a robust polyamide, glass fiber-reinforced enclosure, this socket ensures protection against harsh environmental conditions while offering easy installation and secure electrical connections.
Key Details:
Manufacturer: Stahl
Type: Wall-mounting Socket / Switch Socket
Model: 8570/11-306
Designed for heavy-duty industrial environments, the Stahl 8570/11-306 ensures reliable electrical connections in challenging conditions, providing superior protection and durability.
| Detailed Number of Poles | 2 P + PE |
| Rated Operational Current | 16 A |
| Frequency Range | 50 / 60 Hz |
| Rated Operational Voltage | 200 to 250 V AC |
| Clock Hour Position | 6h |
| Enclosure Material | Polyamide, Glass Fiber Reinforced |
| Ambient Temperature | -50 to +65 °C |
| Degree of Protection | (IEC 60529) IP66, (IEC 60079) IP64 |
| Cable Entry | Entry 1: Lower left, Entry 2: Lower right |
| Entry 1,2 | M25 x 1.5 |
| Dimensions | 231 x 167 x 105 mm |
