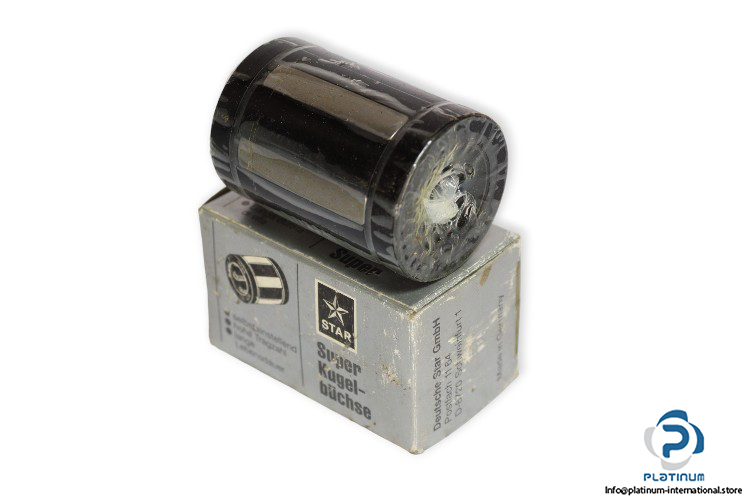

Star 067022540 Super Linear Bushing
STAR / REXROTH SUPER LINEAR BUSHING KBB R067222040
The STAR / Rexroth Super Linear Bushing KBB is engineered for high-speed and high-load linear motion applications. Designed for durability, precision, and performance, this closed-type bushing is ideal for demanding industrial environments.
Manufacturer: STAR / REXROTH
Type: Super Linear Bushing KBB
MNR: R067222040
| Shaft Diameter d0 | 25 mm |
| Rows of Balls | 6 |
| Design Type | Closed Type |
| Maximum Permissible Linear Speed vmax | 3 m/s |
| Maximum Acceleration amax | 150 m/s² |
| Breakaway Force | 4.5 N |
| Maximum Dynamic Load Capacity Cmax | 3640 N |
| Maximum Static Load Rating C0 max | 2180 N |

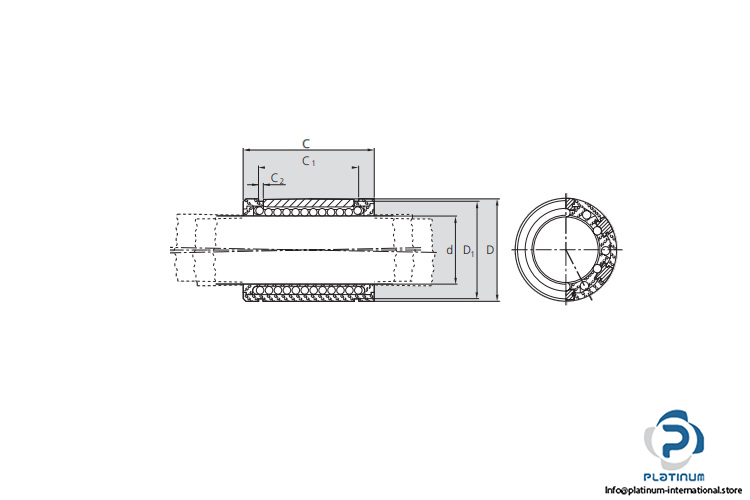

| D | 40 mm |
| C | 58 mm |
| C1 | 43.7 mm |
| C2 | 1.85 mm |
| D1 | 38.5 mm |
| Sealing | With Two Internal Seals |
| Permissible Ambient Temperature | -10 / 80 °C |
