STEGMANN AG 626 XSR ABSOLUTE ENCODER with ROPE LENGTH SENSOR
중고
재고 있음1 단위즉시 배송 가능
650,00$
ABSOLUTE ENCODER WITH ROPE SENSOR
STEGMANN AG 626 XSR Absolute Encoder with FSG SL 3030-X2 Rope Length Sensor ensures precise rotary and linear position feedback, suitable for industrial automation with 8192-step resolution and 30-meter range.1303030-X2626AbsoluteAGBinaryCodeEncoderFSGGrayGSHighIndustrialIP64PositionResolutionRopeSensorSLStegmannXSR
방대한 재고
글로벌 배송
전문 지원
품질 보장

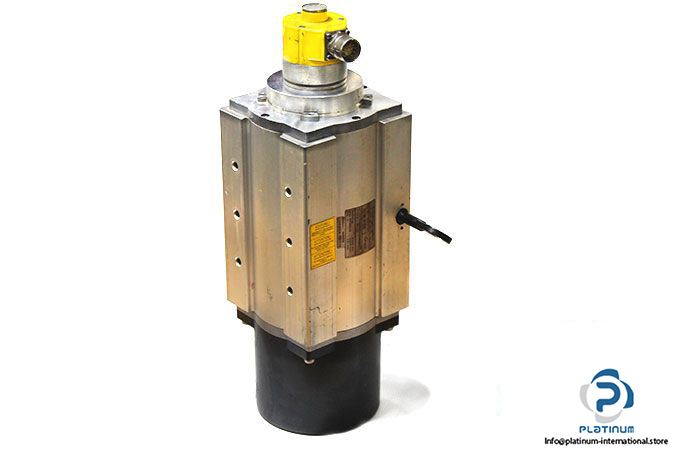

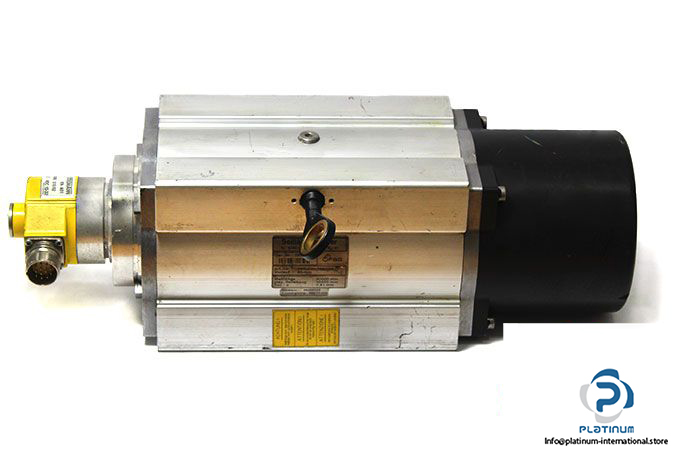

STEGMANN AG 626 XSR ABSOLUTE ENCODER WITH FSG SL 3030-X2 ROPE LENGTH SENSOR
The STEGMANN AG 626 XSR Absolute Encoder is a precision device engineered for accurate angular position measurement in industrial systems. With an integrated FSG SL 3030-X2 Rope Length Sensor, this package offers a robust solution for applications demanding reliable position feedback over extended measuring distances.

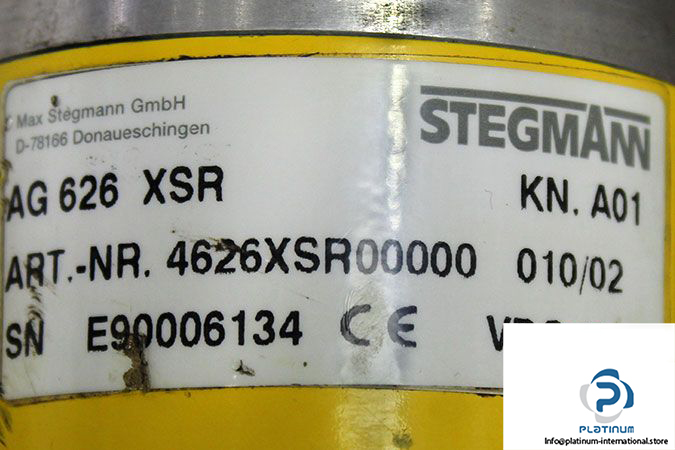

Absolute Encoder Specifications
Manufacturer: STEGMANN
Type: Absolute Encoder
Model: AG 626 XSR
Art. Nr.: 4626XSR00000 010/02
Serial No.: E90006134
Design Flange: Synchro Flange
- Resolution: 8192 Steps
- Voltage Supply: 10 / 32 VDC
- Programmable Code Type: Gray / Binary
- Measuring Step: 0.043 degrees
- Position Forming Time: 0.15 ms

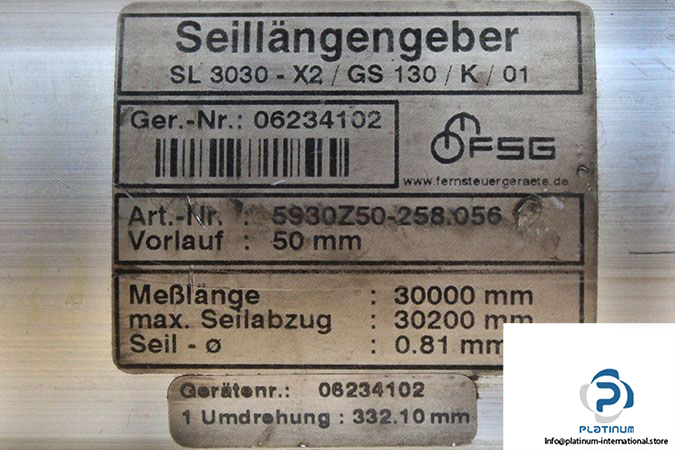

Rope Length Sensor Specifications
Manufacturer: FSG
Type: Rope Length Sensor
Model: SL 3030-X2 / GS 130 / K / 01
Art. Nr.: 5930Z50-258.056
GER No.: 06234102
- Measuring Length: 30000 mm
- Rope Diameter: 0.81 mm
- Speed of Adjustment: 3 m/s
- Lead: 50 mm
- Max Length: 30200 mm
- Revolution: 332.10 mm
- Protection Class: IP 64
