Steinmeyer 32-15 Ball Screw

Name: STEINMEYER 32-15 BALL SCREW
SKU: 1008077
Availability: LimitedAvailability

중고

재고 있음2 단위즉시 배송 가능

제조사: STEINMEYER 유형: DIN 표준 플랜지 너트, 볼 오버사이즈 프리로드 모델: 1416/15.32.430.540 너트 유형: 1416/15.32.6.3

제조업체

STEINMEYER

SKU

1008077

카테고리

Screw & Ball Screws

상태

중고

32 Ball d0:flanged Linear mm Motion nut screw Steinmeyer

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: STEINMEYER
Type: DIN Standard Flanged Nut, Ball Oversize Preload
Model: 1416/15.32.430.540
Nut type: 1416/15.32.6.3

Size: 32
Nominal Diameter d_N: 32 mm

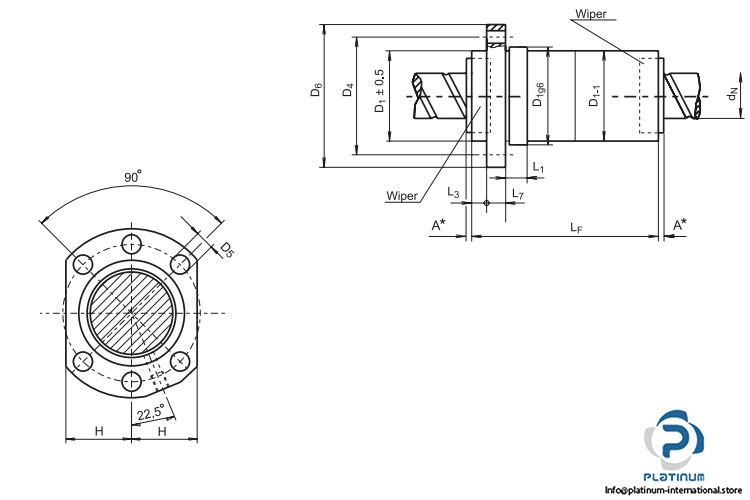

Dimensions:
Flange diameter D₆: 80 mm
Nut outer diameter D₁ g6: 50 mm
Nut length L_F: 101 mm
Flange thickness L₇: 12 mm
Cutting Flange Width(2H): 62 mm
L₁: 16 mm
D₄: 65 mm
Lead P: 15 mm
No. of circuits i: 3
Ball diameter d_W: 6 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 30.5 kN
Static load rating C_0a: 45.3 kN
Stiffness R_{nu, ar}: 250 N/µm
Threaded length: 430 mm
Total screw length: 540 mm

사양	가치
Weight	3,52 kg
Condition	Used
Size	32 x 15 R
Shelf No.	231221
Nut Length [mm]	101 mm
Manufacturer	STEINMEYER
Type of Product	BALL SCREW
Flange Diameter [mm]	80 mm
Nut Outer Diameter [mm]	50 mm
Flange Thickness [mm]	12 mm
Cutting Flange Width [mm]	62 mm
