SYK BK15 Ball Screw Support Unit

Name: SYK BK15 BALL SCREW SUPPORT UNIT
SKU: 1057317
Availability: LimitedAvailability

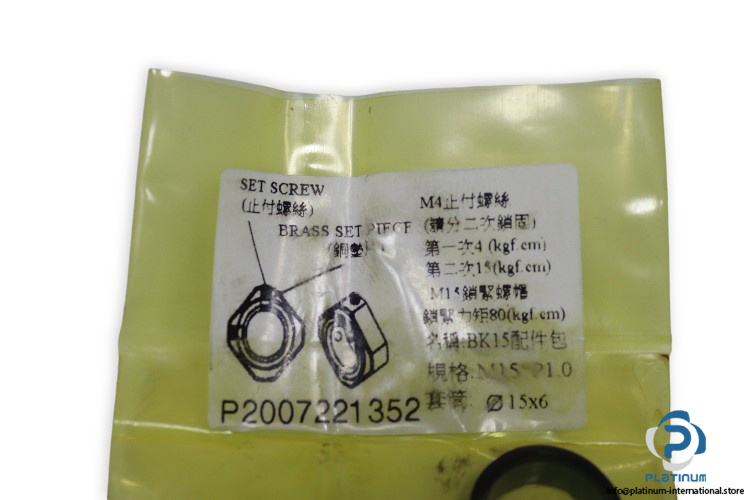

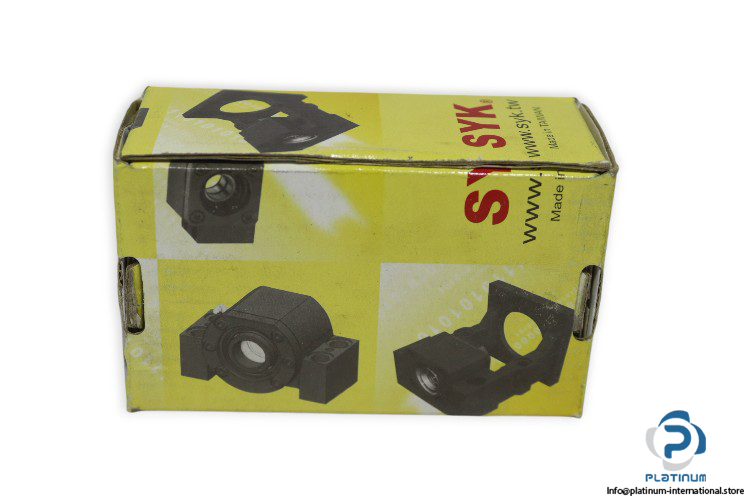

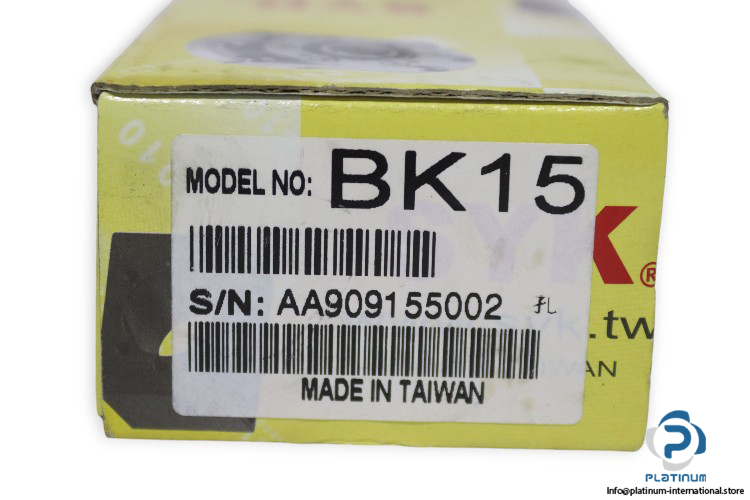

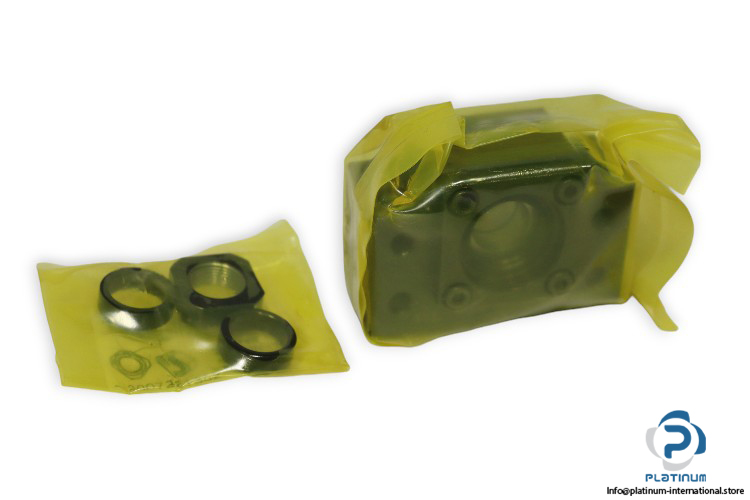

syk-BK15-ball-screw-support-unit-(new)-carton

syk-BK15-ball-screw-support-unit-(new)-carton-1

syk-BK15-ball-screw-support-unit-(new)-carton-2

syk-BK15-ball-screw-support-unit-(new)-carton-3

syk-BK15-ball-screw-support-unit-(new)-carton-4

신제품

재고 있음4 단위즉시 배송 가능

제조사: SYK 유형: 볼 스크류 서포트 유닛 모델: BK 15

제조업체

SYK

SKU

1057317

카테고리

Other Rolling Bearings

상태

신제품

15 Ball BK mm screw Support SYK Unit

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: SYK
Type: BALL SCREW SUPPORT UNIT
Model: BK 15

Shaft diameter: 15 mm

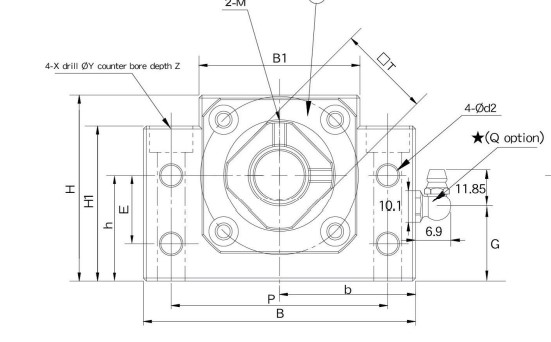

Housing Dimensions
B: 70 mm
L: 27 mm
H: 48 mm
E: 18 mm
T: 22 mm
Surface treatment: Black Oxide
Applicable ball screw date accuracy grade: C3-C10
Ball screw shaft diameter: 18/20 mm
Stiffness: 113 (N.µm)
Angular-contact ball bearing Load Ratings, axial:
Dynamic Load Capacity C_a: 7600 N
Load limit: 3380 N
