Technoelectric VC1P 3X80A Switch Disconnector Without Handle
신제품
재고 있음1 단위즉시 배송 가능
133,33$
Kema Keur / Technoelectric VC1P3X80A, 3-pole switch disconnector, 80 A Ith, 690 V AC Ue, 50/60 Hz, IEC 947-3 compliant, no door interlock handle.
방대한 재고
글로벌 배송
전문 지원
품질 보장

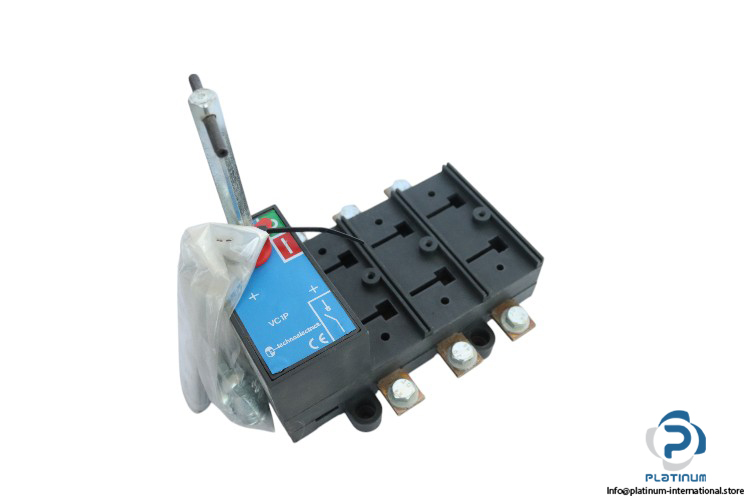

Kema Keur / Technoelectric Switch Disconnector VC1P3X80A
The Kema Keur / Technoelectric VC1P3X80A is a 3-pole switch disconnector without a door interlock handle, engineered for high-performance industrial applications. With a robust thermal current rating and compliance with international standards, it ensures reliable operation in demanding environments.

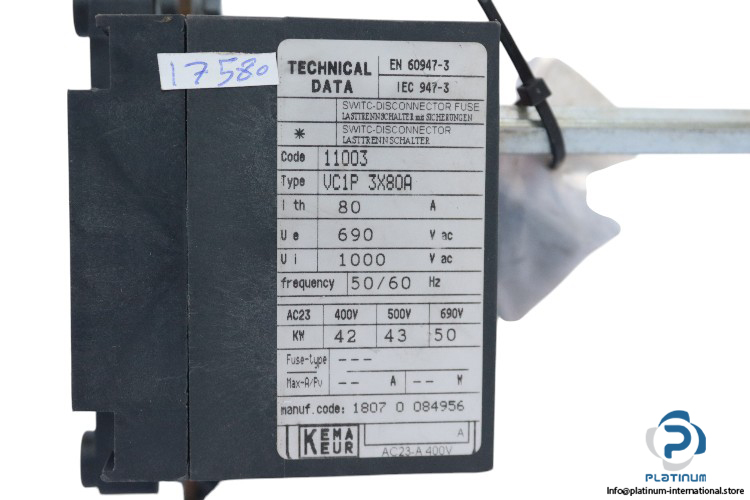

🔧 Technical Specifications:
- Manufacturer: Kema Keur / Technoelectric
- Type: Switch Disconnector without Door Interlock Handle
- Model: VC1P3X80A
- Order Code: 11003
- Manufacture Code: 1807 0 084956
- Thermal Current (Ith): 80 A
- Rated Voltage (Ue): 690 V AC
- Rated Insulation Voltage (Ui): 1000 V AC
- Frequency: 50/60 Hz
- No. of Poles: 3
- Contact: 1 Normally Open (NO) Contact
- Rated Power AC23:
- 42 kW @ 400 V
- 43 kW @ 500 V
- 50 kW @ 690 V
- Standards: EN 60947-3, IEC 947-3
