Tekel TK 421.F.250.11/30.S.10.L.PP2 Incremental Encoder
중고
재고 있음1 단위즉시 배송 가능
132,00$
인크리멘털 엔코더 TEKEL TK421-F-250-11/30-S-10-L-PP2는 견고한 10mm 샤프트와 IP65 보호 등급을 갖추고 250 PPR 해상도를 제공하며, 정밀한 산업용 피드백을 위한 HTL 출력 및 방사형 MIL 커넥터를 지원합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

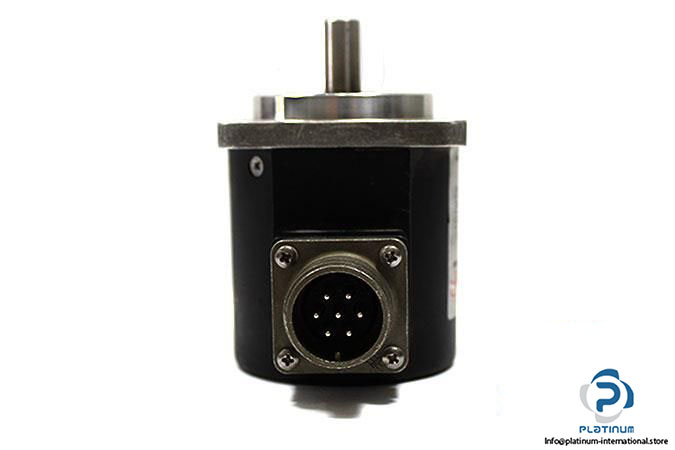

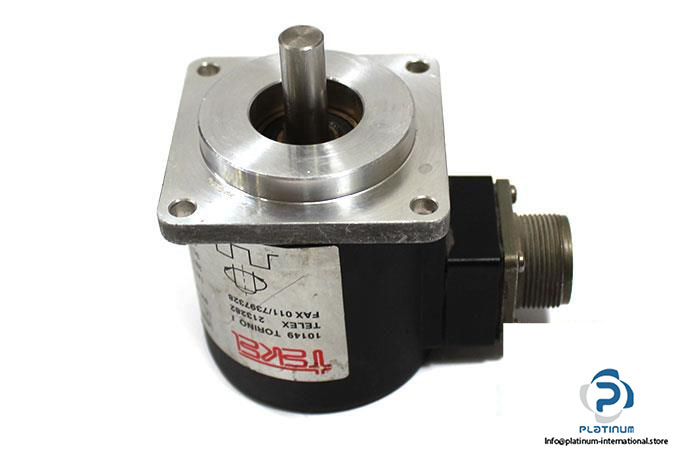

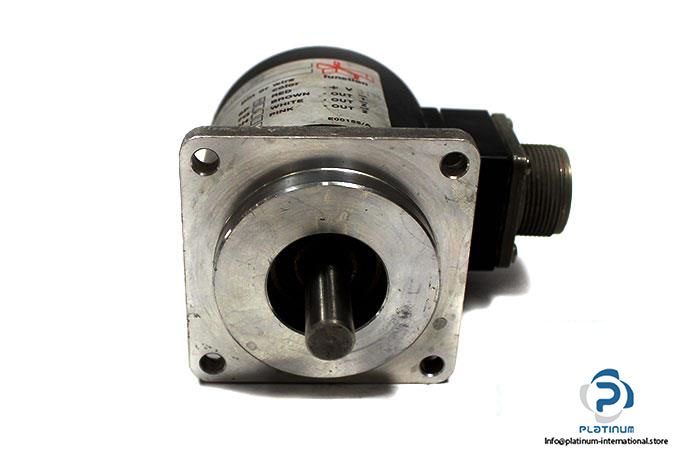

TEKEL TK421-F-250-11/30-S-10-L-PP2 INCREMENTAL ENCODER
The TK421-F-250-11/30-S-10-L-PP2 is a high-performance incremental encoder from TEKEL, engineered for precise position and speed sensing in industrial environments. With robust construction and IP65 protection, this encoder ensures accurate feedback in harsh conditions, making it ideal for motion control applications alongside servo motors and sensors.
Manufacturer: TEKEL
Type: Incremental Encoder
Model: TK421-F-250-11/30-S-10-L-PP2
Part No.: 0 196 41 735 DP
| Flange Type | Square flange |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 10 mm |
| Resolution | 250 pulses per revolution (PPR) |
| Voltage Supply | 11 / 30 V DC |
| Output Circuits | Push-Pull (HTL) |
| Output Frequency | 0 / 50 KHz |

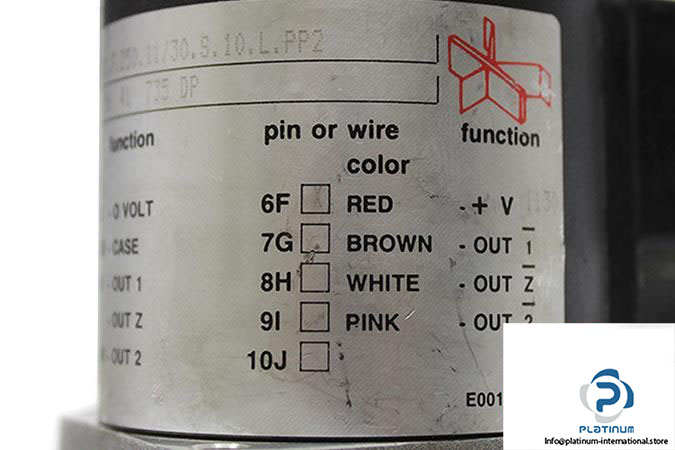

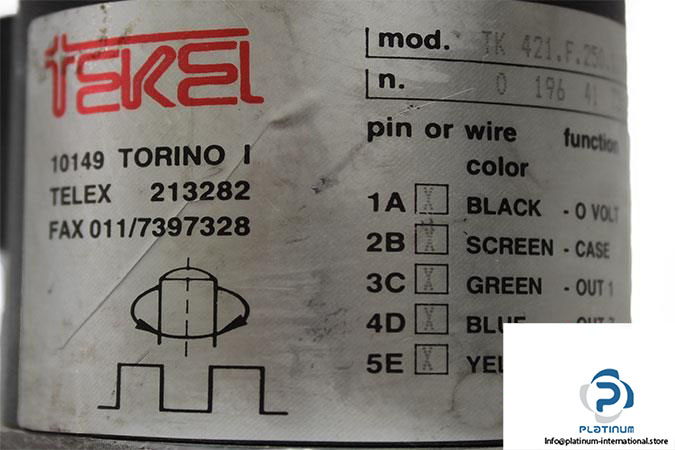

| Connection Type | Radial MIL connector (7 pins) |
| Protection Class | IP65 |
| Temperature Range | -10 / 70 °C |
