Tekel TK.491.S.100.24.12.S.10.P.LD Incremental Encoder
중고
재고 있음1 단위즉시 배송 가능
175,00$
INCREMENTAL ENCODER Tekel TK.491.S.100.24.12.S.10.P.LD는 10mm 샤프트, IP55 보호 등급, 라인 드라이버 출력이 있는 24V 증분 인코더로, 서보 시스템에서 정확한 모션 피드백을 위해 제작되었습니다.
24vControlDriverEncoderFeedbackIncrementalIndustrialIP55LineMotionOutputPositionServoTekelTK.491.S.100.24.12.S.10.P.LD
방대한 재고
글로벌 배송
전문 지원
품질 보장

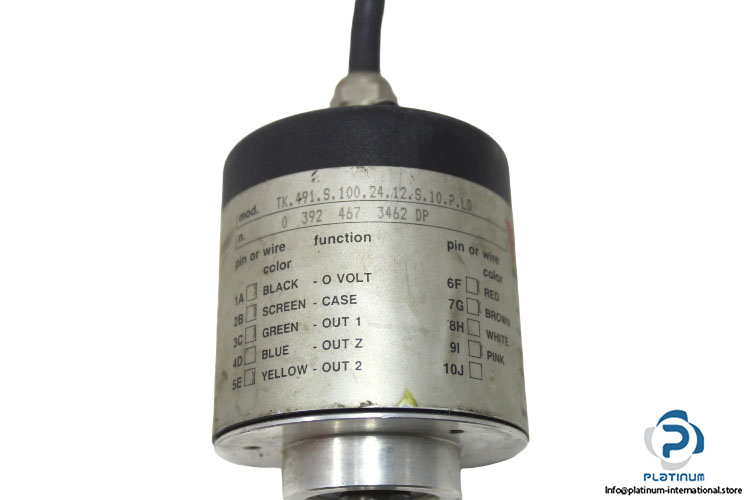

TEKEL TK.491.S.100.24.12.S.10.P.LD INCREMENTAL ENCODER
The Tekel TK.491.S.100.24.12.S.10.P.LD Incremental Encoder delivers accurate feedback for motion control systems, ensuring reliable performance in industrial environments. Designed with reinforced ABS housing and high signal frequency, this encoder supports servo mounting and axial cabling for robust integration.
Manufacturer: Tekel
Type: Incremental Encoder
Model: TK.491.S.100.24.12.S.10.P.LD
Part No.: 0 392 467 3462 DP
| Voltage Supply | 24 V |
| Shaft Diameter | 10 mm |
| Frequency Range | 0 / 50 KHz |
| Slewing Speed | 100 |
| Assembly | Servo standard |
| Connection | P on axial cable gland with cable 1 / 6 m long |
| Output | Line driver |
| Housing Material | ABS anti-shock reinforced with fiber glass |
| Operating Temperature | -10 / +70 °C |
| Degree of Protection | IP 55 |
