Tekel TK 561.SG.1250.12.S.10.S.PP Incremental Encoder
TEKEL TK561-SG-1250-12-S-10-S-PP INCREMENTAL ENCODER

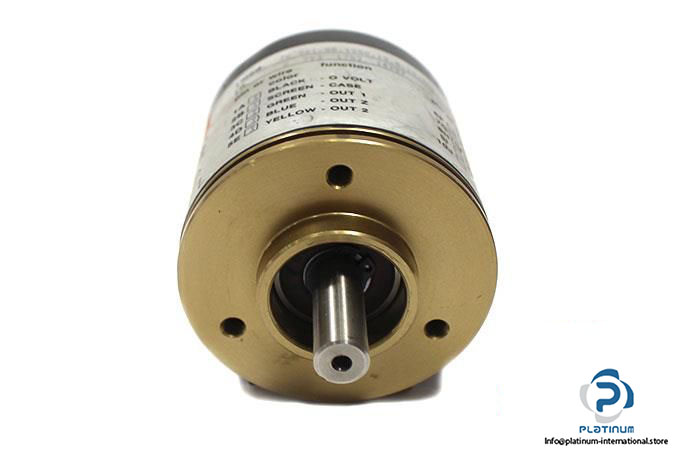

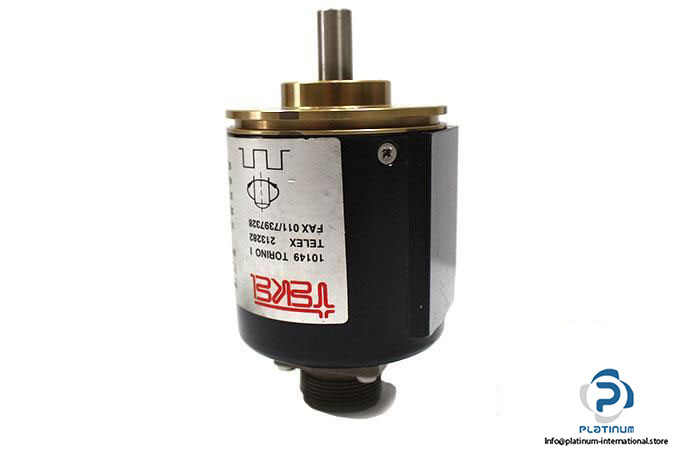

The TEKEL TK561 is a high-precision incremental encoder designed for accurate motion feedback in automation systems. With a 1250 PPR resolution, it ensures reliable signal transmission in industrial environments, featuring a compact design with Servo-clip flange and solid shaft output.
Manufacturer: TEKEL
Type: Incremental Encoder
Model: TK561-SG-1250-12-S-10-S-PP

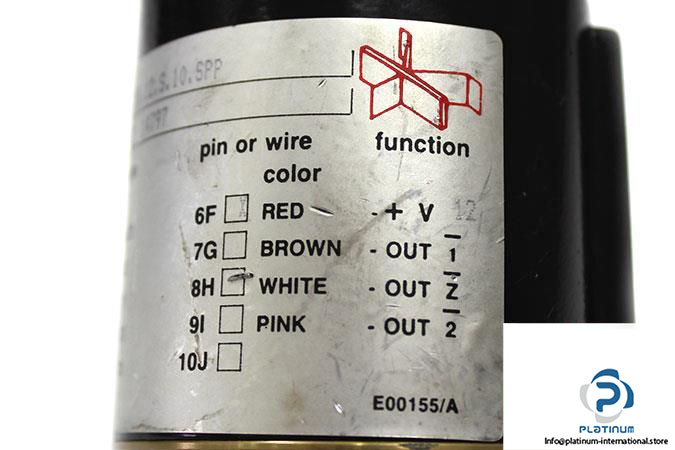

Ref No.: E00155/A
| Flange Type | Servo-clip |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 10 mm |
| Resolution | 1250 pulse per revolution (PPR) |
| Voltage Supply | 12V DC |
| Output Circuits | Push-Pull (HTL) |
| Output Frequency | 0 / 100 KHz |

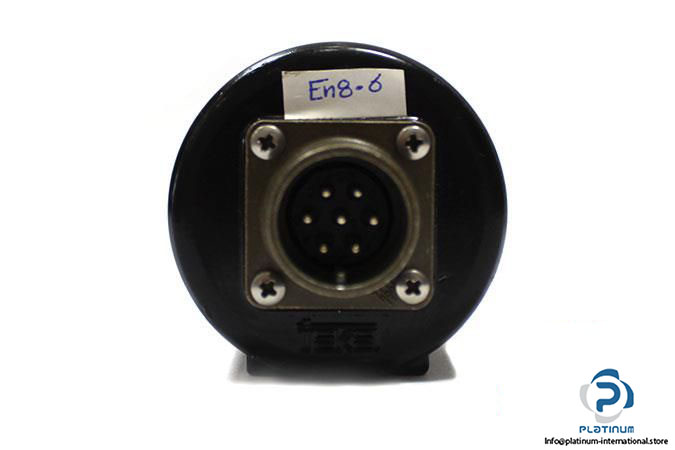

| Connection Type | Axial MIL connector (7 pins) |
| Temperature Range | -10 / 70 °C |
