Tekel TK561.FRE.1024.11/30.S.K4.10.L07.PP2-1130 Incremental Encoder

Name: TEKEL TK561.FRE.1024.11/30.S.K4.10.L07.PP2-1130 INCREMENTAL ENCODER
SKU: 965589
Price: 225.00 USD
Availability: InStock






신제품

재고 있음1 단위즉시 배송 가능

225,00$

증분 인코더 TEKEL TK 561-FRE-1024는 견고한 샤프트와 HTL 푸시-풀 출력이 있는 1024 PPR 해상도를 특징으로 하며, 11~30 V DC에서 작동하며 산업용 신뢰성을 위해 IP64 등급을 받았습니다.

제조업체

TEKEL

SKU

965589

카테고리

Rotary Encoders

상태

신제품

1024 444 561-FRE-1024 Connector Control Encoder Flange HTL Incremental Industrial IP64 MIL Motion PPR Push-Pull Rated REO shaft Solid Tekel TK

방대한 재고

글로벌 배송

전문 지원

품질 보장

TEKEL TK 561-FRE-1024 INCREMENTAL ENCODER

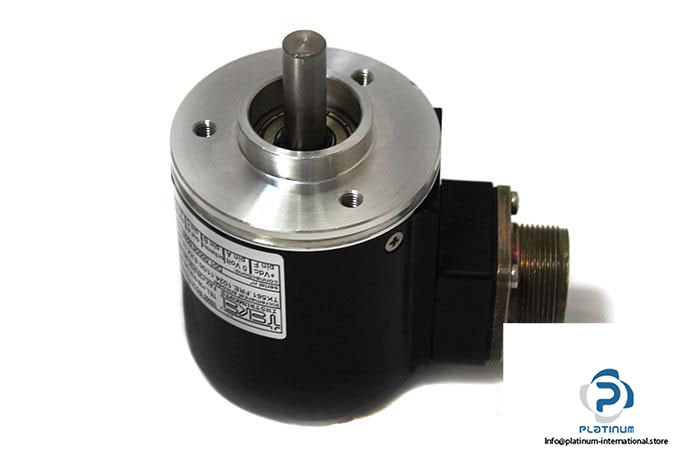

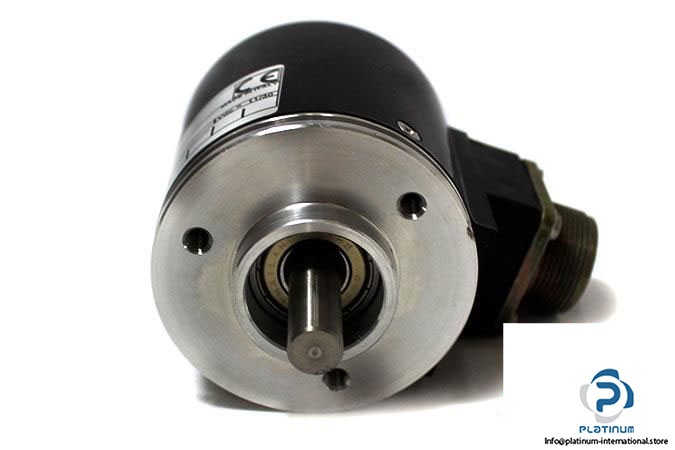

The TEKEL TK 561-FRE-1024-11/30-S-K4-10-L07-PP2-1130 is a high-precision incremental encoder built to deliver reliable feedback for motion control systems in industrial environments. With a robust solid shaft and a resolution of 1024 PPR, this encoder ensures accurate positioning and speed monitoring.

Manufacturer: TEKEL

Type: Incremental Encoder

Model: TK 561-FRE-1024-11/30-S-K4-10-L07-PP2-1130

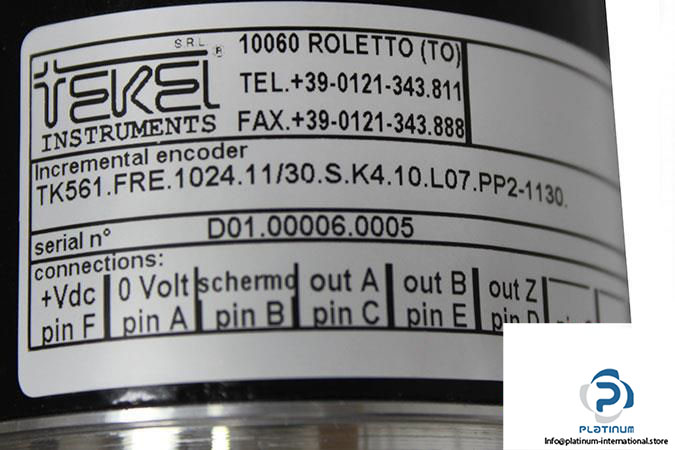

Serial No.: D01.00006.0005

Flange Type	REO 444 Flange
Shaft Type	Solid Shaft
Shaft Diameter	10 mm
Resolution	1024 pulses per revolution (PPR)
Voltage Supply	11“30 V DC
Output Circuits	Push-Pull (HTL)
Output Frequency	0“100 kHz

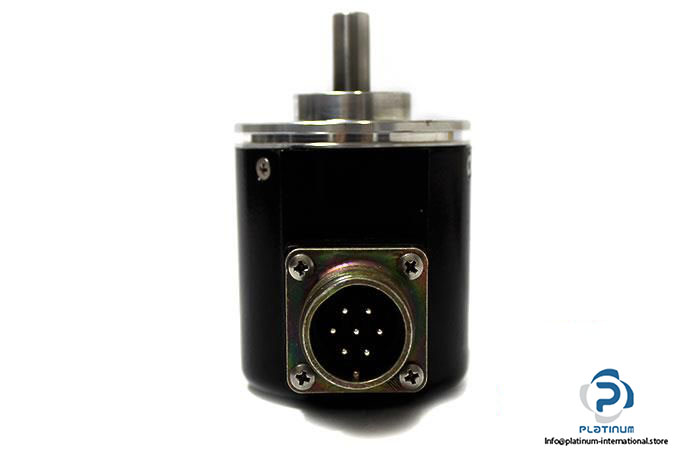

Connection Type	Radial MIL Connector (7 pins)
Protection Class	IP64
Temperature Range	-10 to 70 °C
