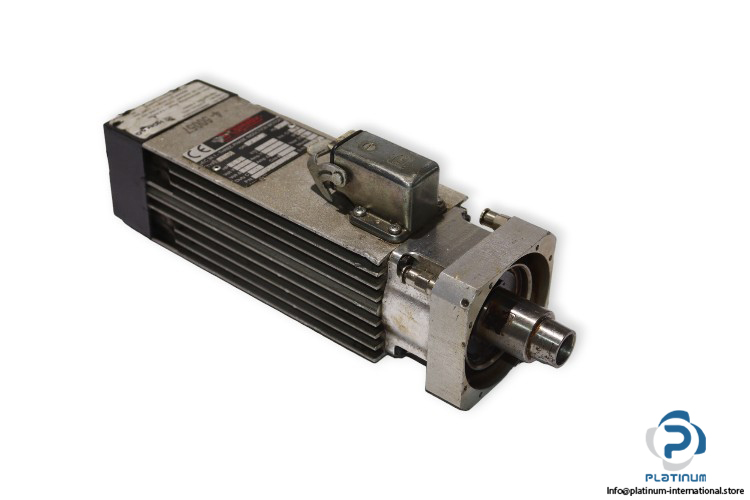

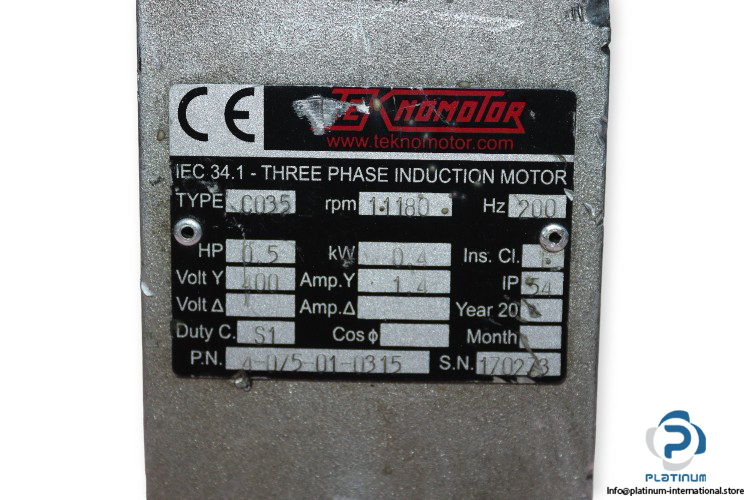

Teknomotor C035 Induction Motor

Manufacturer: Teknomotor
Type: 3 phase Induction Motor
Model: C035

Horsepower: 0.5 Hp
Rated Voltage Star: 400 V
Rated Current Star: 1.4 A
Rated Current Delta: 5.4 A
Frequency: 200 Hz
Torque: 0.88 Nm
Rated Power: 0.4 kW
Rated Speed: 11180 rpm
Max. Power: 0.4 KW/S1
Maximum Speed: 12000 min^-1
Duty: S1 Cont.
Protection Class: IP 54
Insulation Class: Class F
