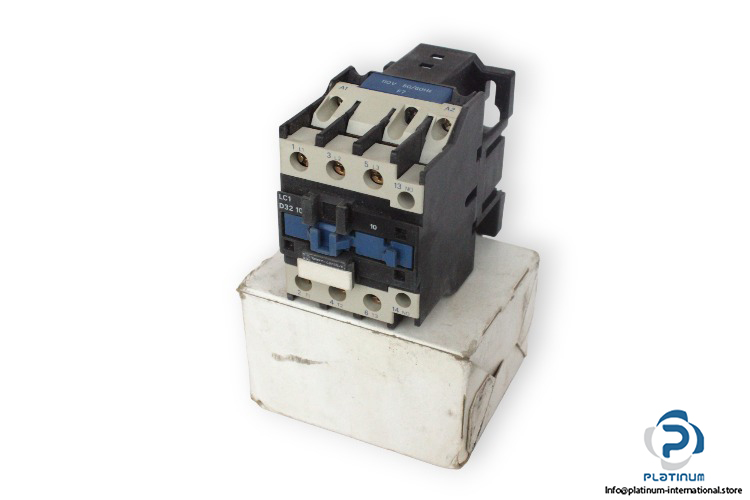

Telemecanique LC1 D3210F7 Contactor
신제품
재고 있음1 단위즉시 배송 가능
95,00$
제조사: Telemecanique 유형: 접촉기 모델: LC1D3210F7 부품 번호: 023152
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: Telemecanique
Type: Contactor
Model: LC1D3210F7
Part No.: 023152
Continuous current: 50 A
Coil voltage: 110 V AC
Frequency: 50/60 Hz
Rated insulation voltage (Ui): 1000 V
Rated impulse withstand voltage (Uimp): 8 kV
Auxiliary contact: 1 NO
Mounting: clip-on mounting on 35 mm
Rated thermal current (Ith): 50 A
Power kW@3-phase: 7.5 kW (220 V AC),15 kW (480 V AC),18.5 kW (660 V AC)
Power hp: 1-phase 5 hp (230 V)/3-phase 7.5 hp (200 V),10 hp (230 V),20 hp (460 V),30 hp (575 V)
Awg: 6-14 Cu
Torque: 20 Ib, in
