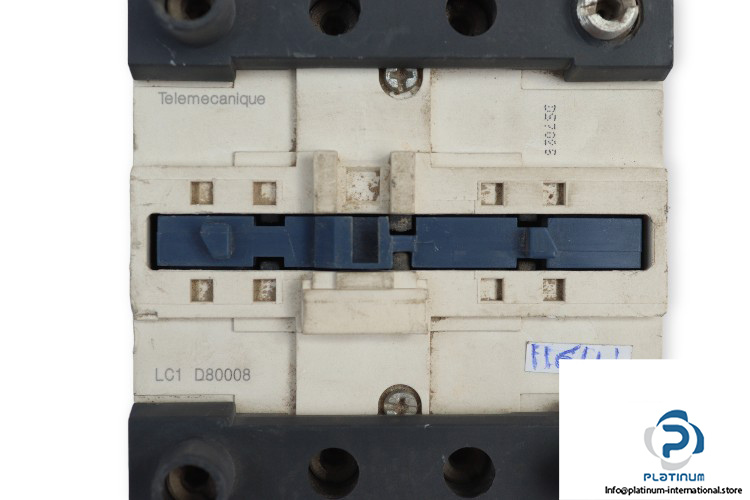

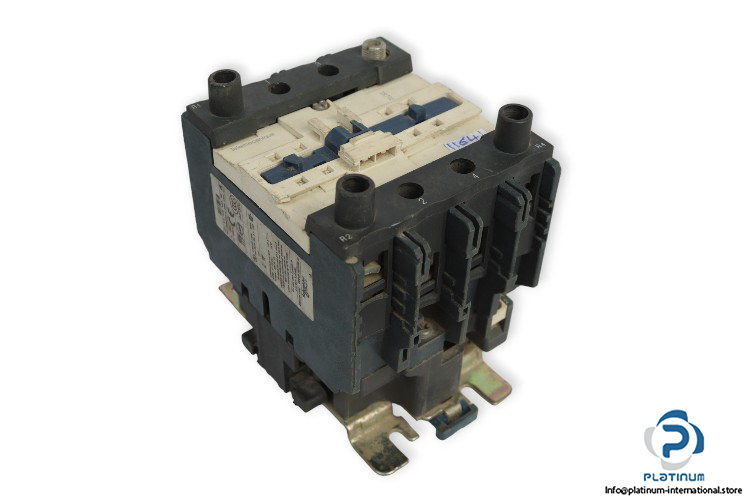

Telemecanique LC1 D80008 Contactor

Manufacture: Telemecanique
Type: Contactor
Model: LC1D80008

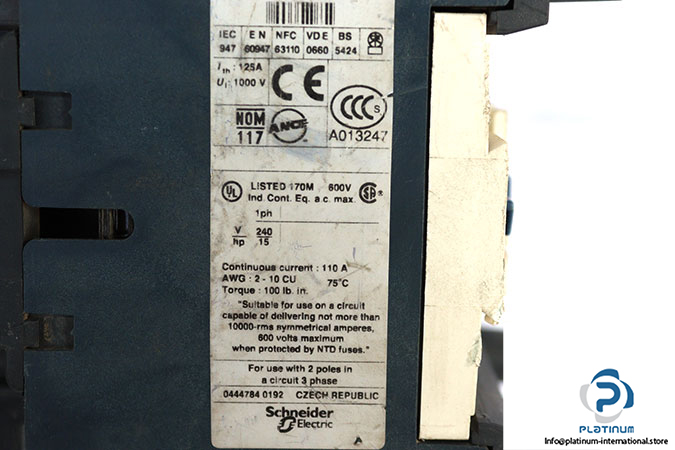

Suitable for Use: on Circuit Capable of Delivering not More Than 10000 rms Symmetrical Amperes, 600 V Max. ,With 2 poles in a circuit 3 phase
Rated insulation voltage Ui: 1000 V
Rated impulse with stand voltage Uimp: 6 Kv
Standard: IEC 947 , EN 60947 , NFC 63110 , VDE 0660 , BS 5424
Power: 15 HP (240 V)
Thermal Current Ith: 125 A
Continuous current: 110 A
AWG: 2 … 10 CU
Torque: 100 Ib.in
Non inductive load maximum current: 125 A
No. of poles: 4
Operation temperature: -5 … 60°C
Dimensions: 77 x 137 x 70 mm
Attachment:

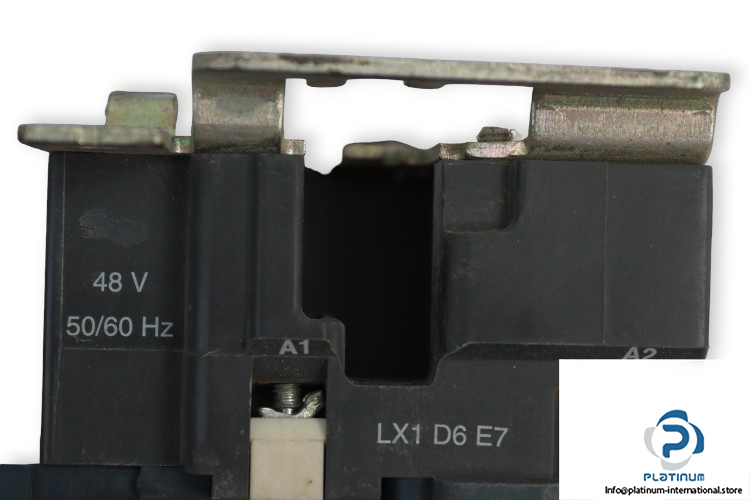

TELEMECANIQUE LX1 D6 E7 CONTACTOR COIL
Manufacturer: Telemecanique
Type: Contactor Coil
Model: LX1D6E7
Coil Voltage: 48 V AC
Frequency: 50 / 60 Hz
Fit With: Schneider Electric LC1D40, LC1D50, LC1D65 … LC1D80 contactors
